Headlights/Daytime Running Lights (DRL) Schematics




Headlights/Daytime Running Lights (DRL) Schematics

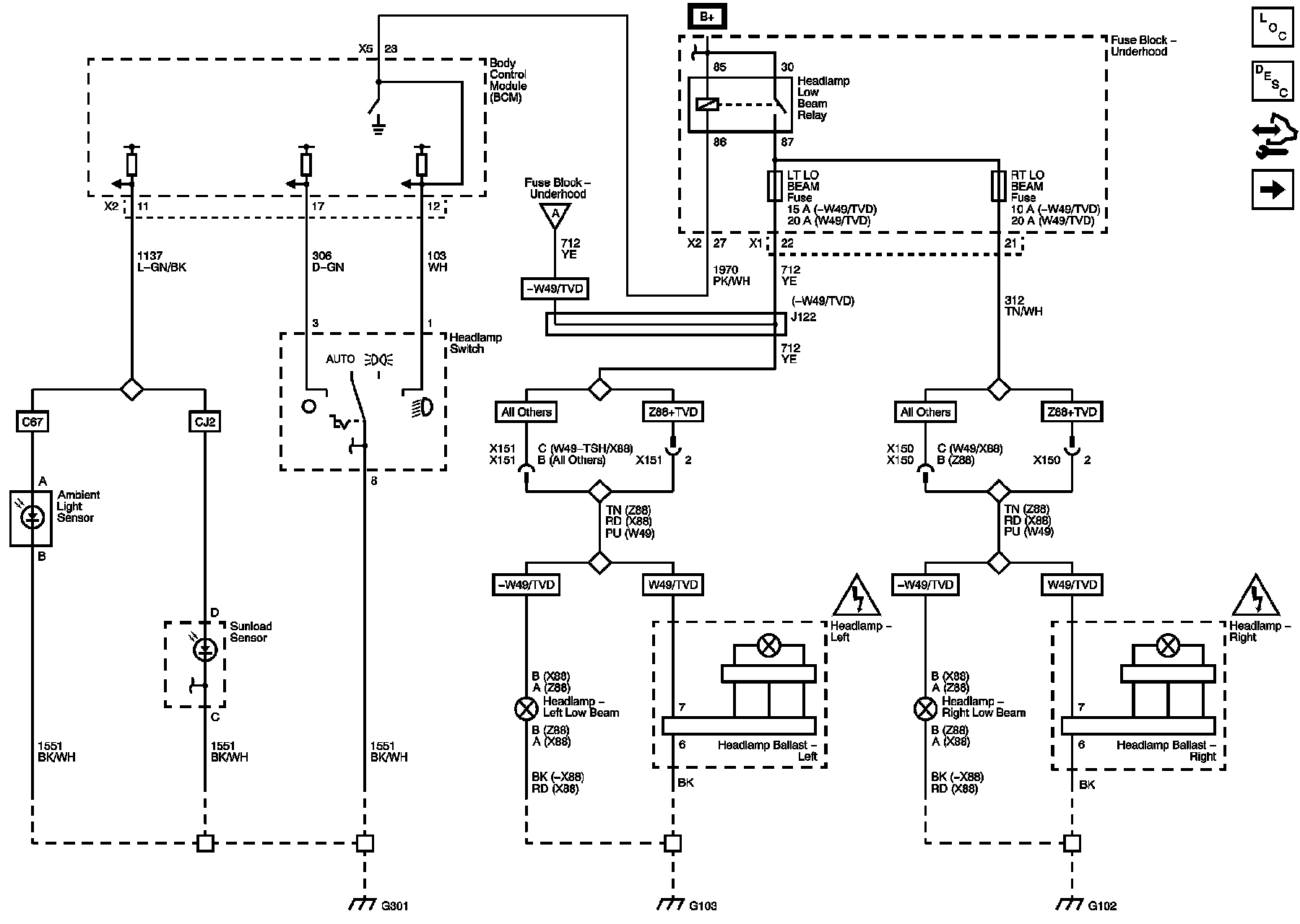

Low Beams

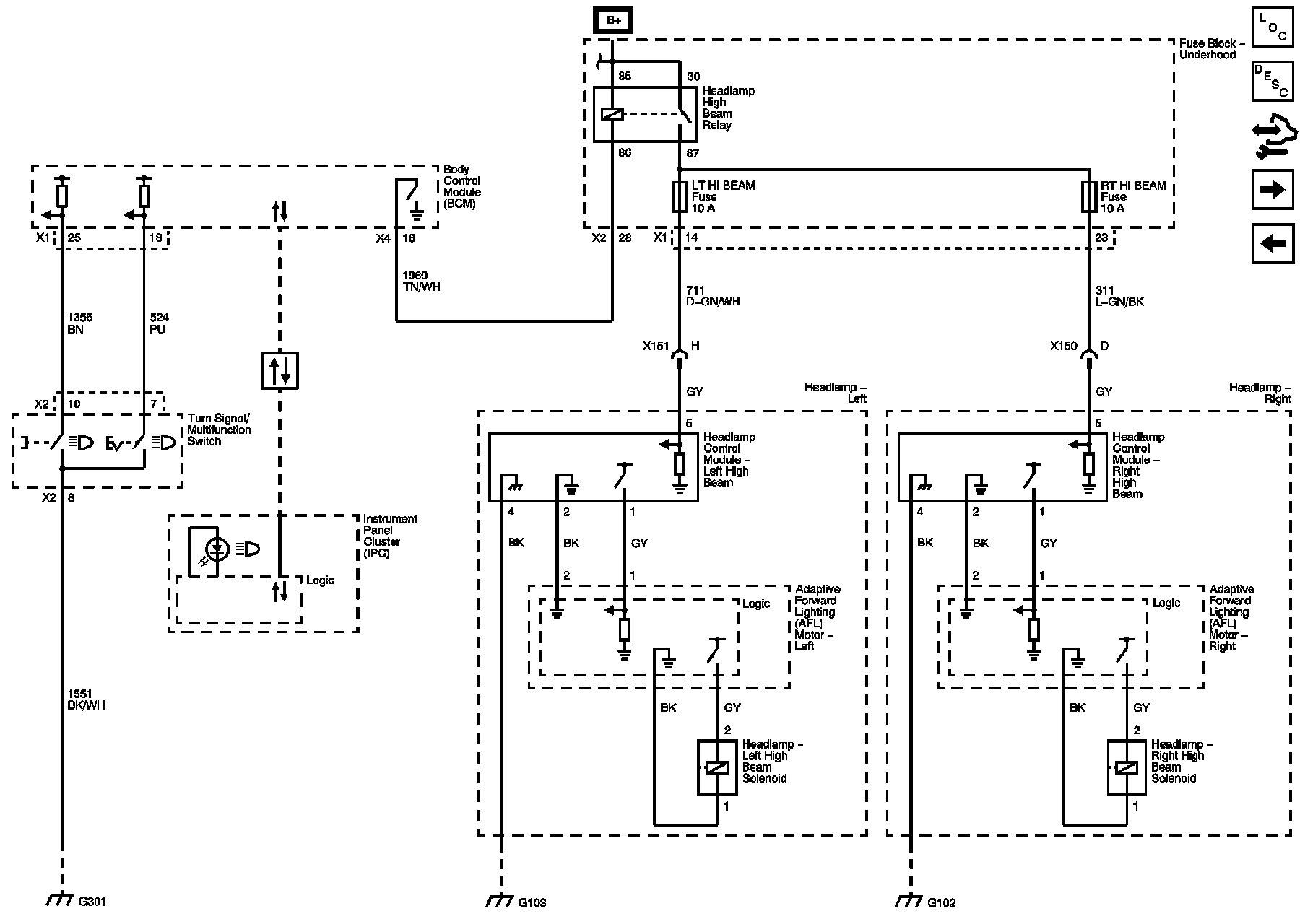

High Beams (Except TSH or T26)

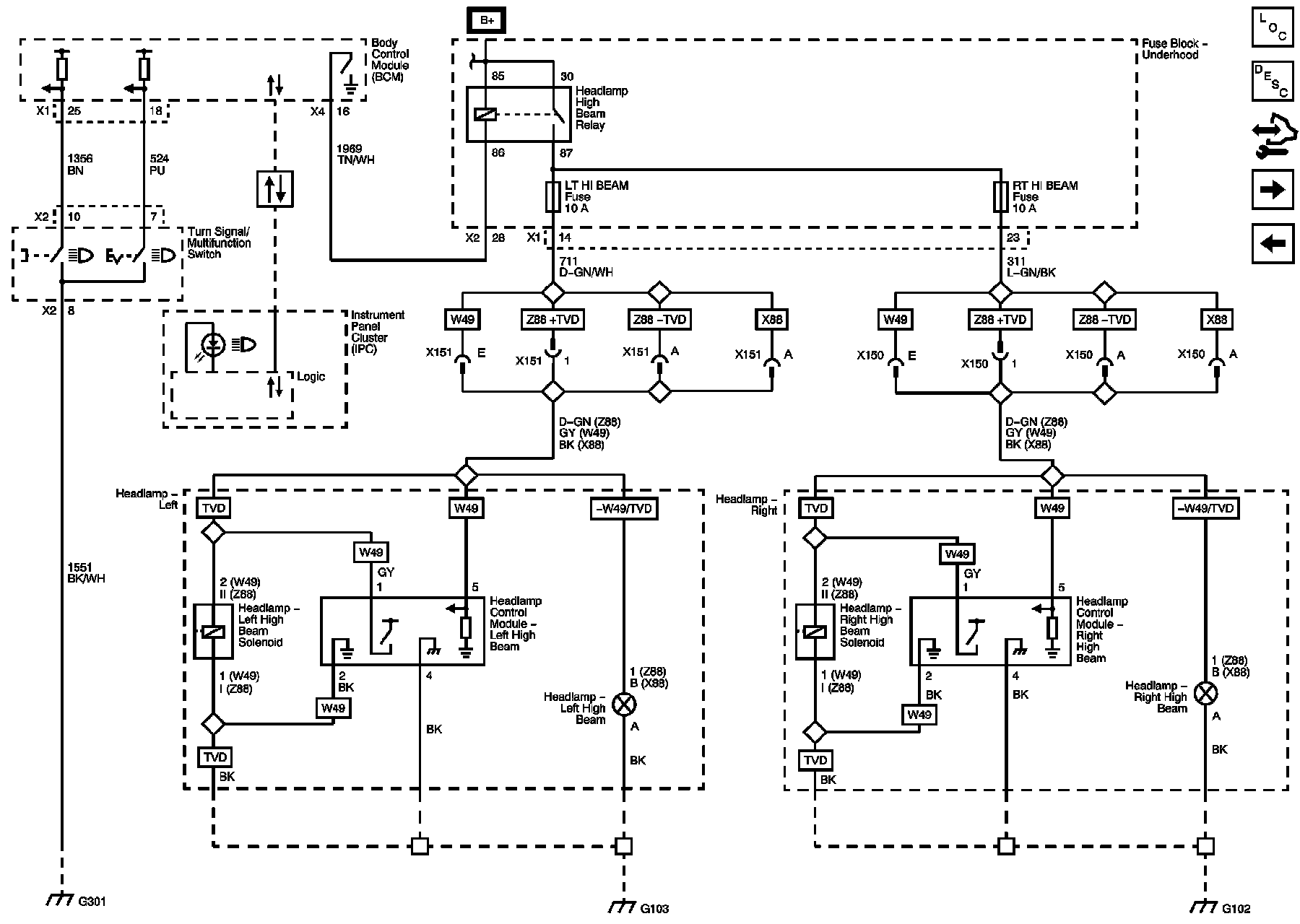

High Beams (TSH or T26)






Daytime Running Lights

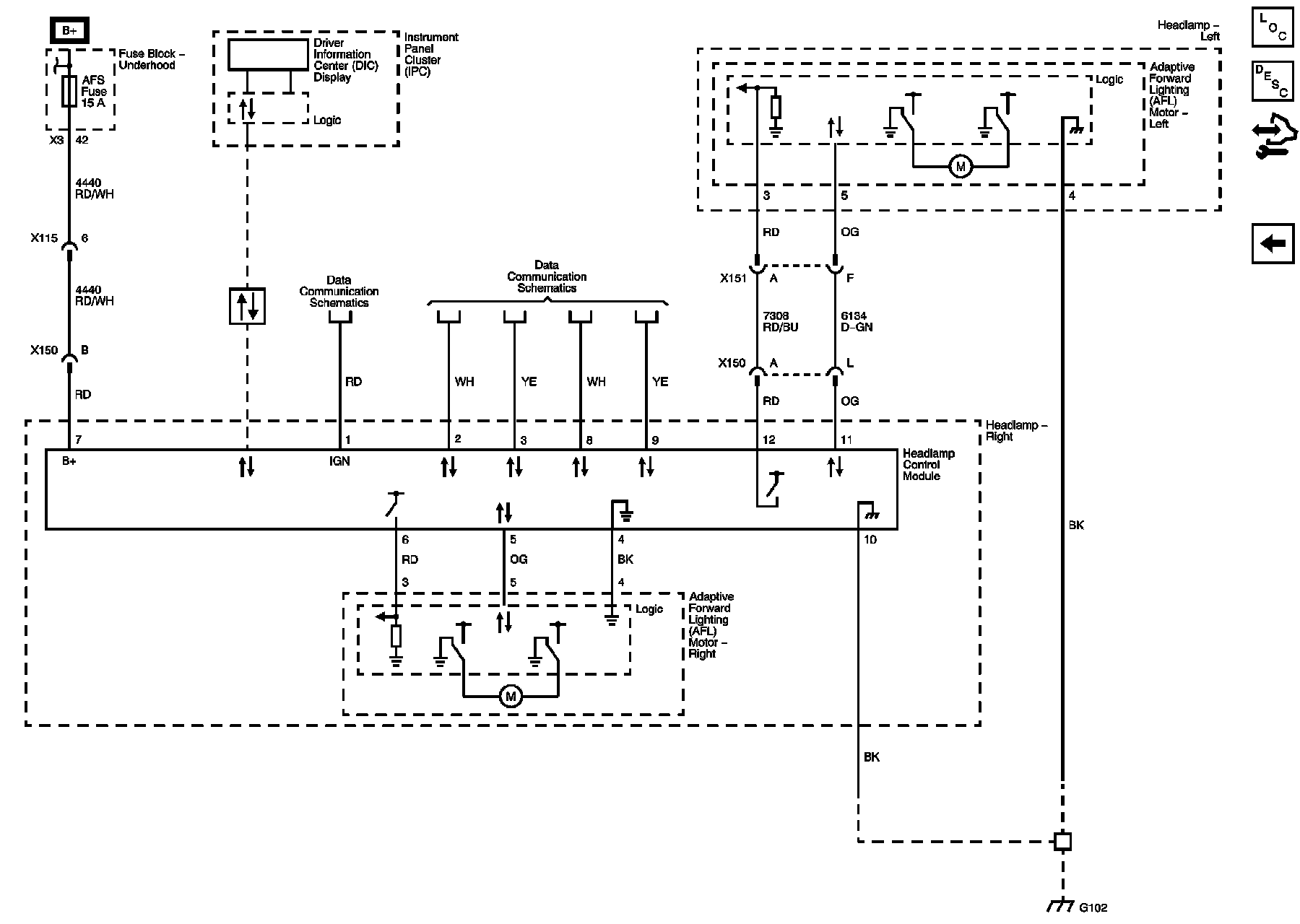

Adaptive Forward Lighting System (TSH or T26)
