Exterior Lights Schematics




Exterior Lights Schematics

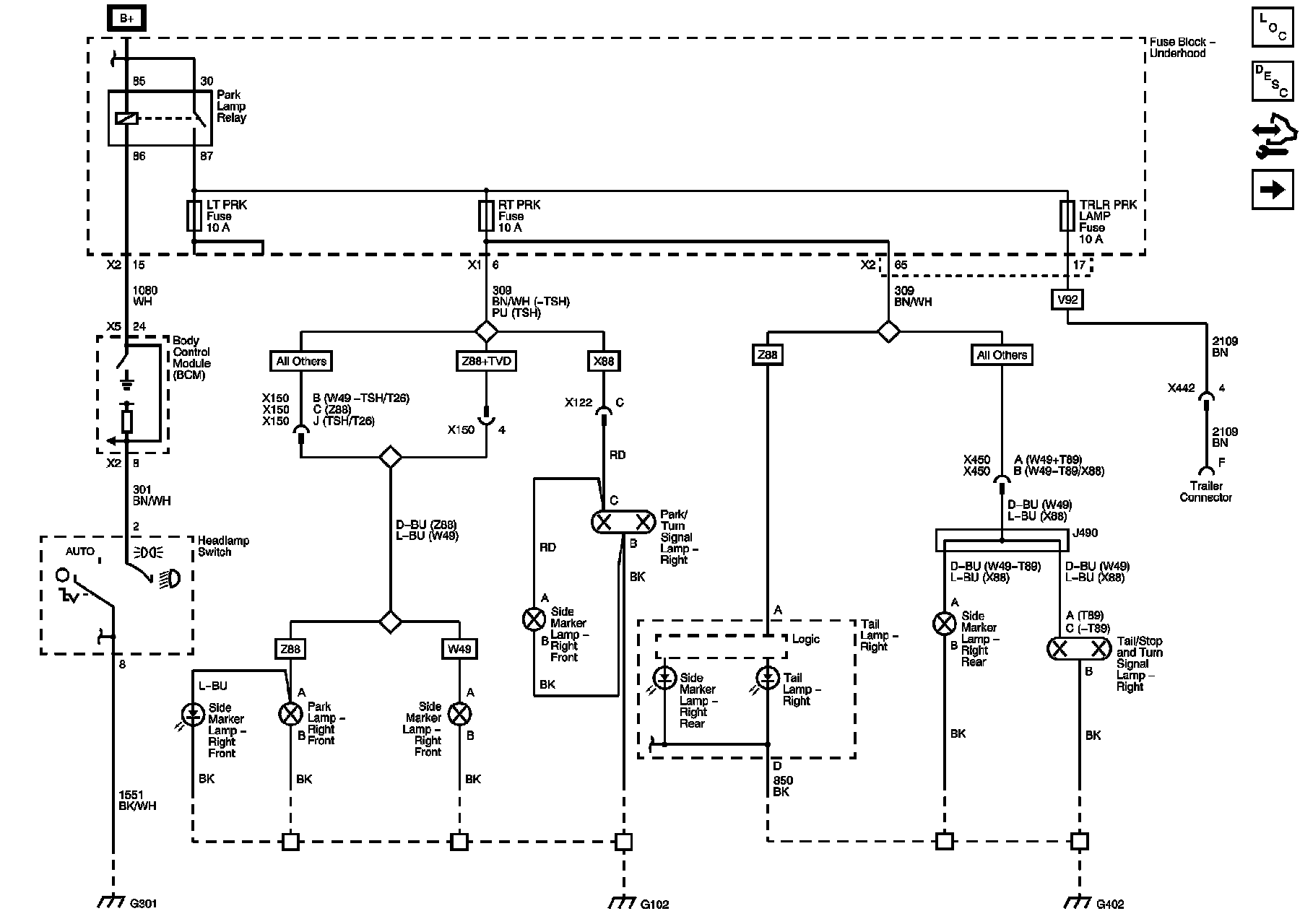

Park Lamp Control and Right Park Lamps

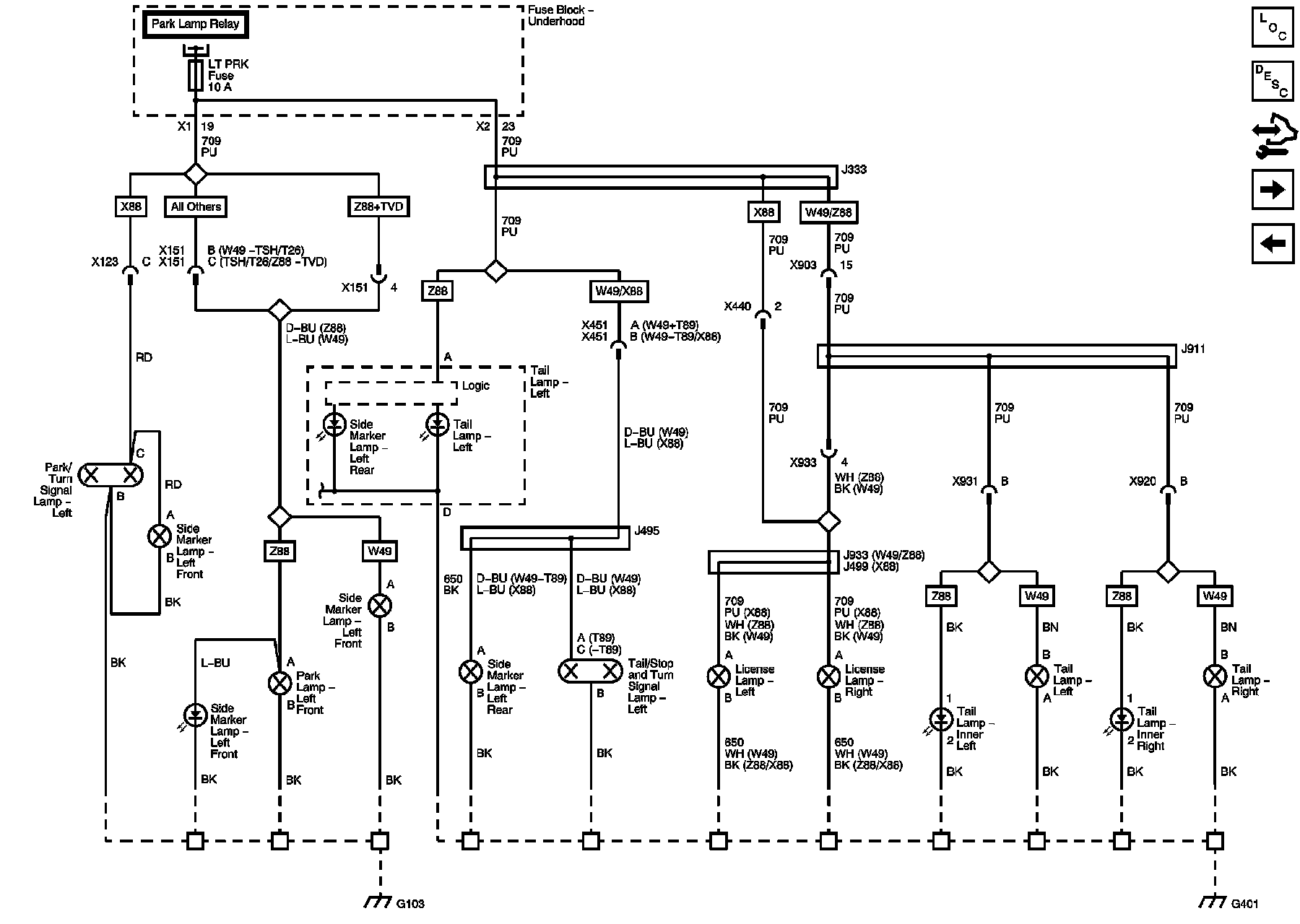

Left Park Lamps

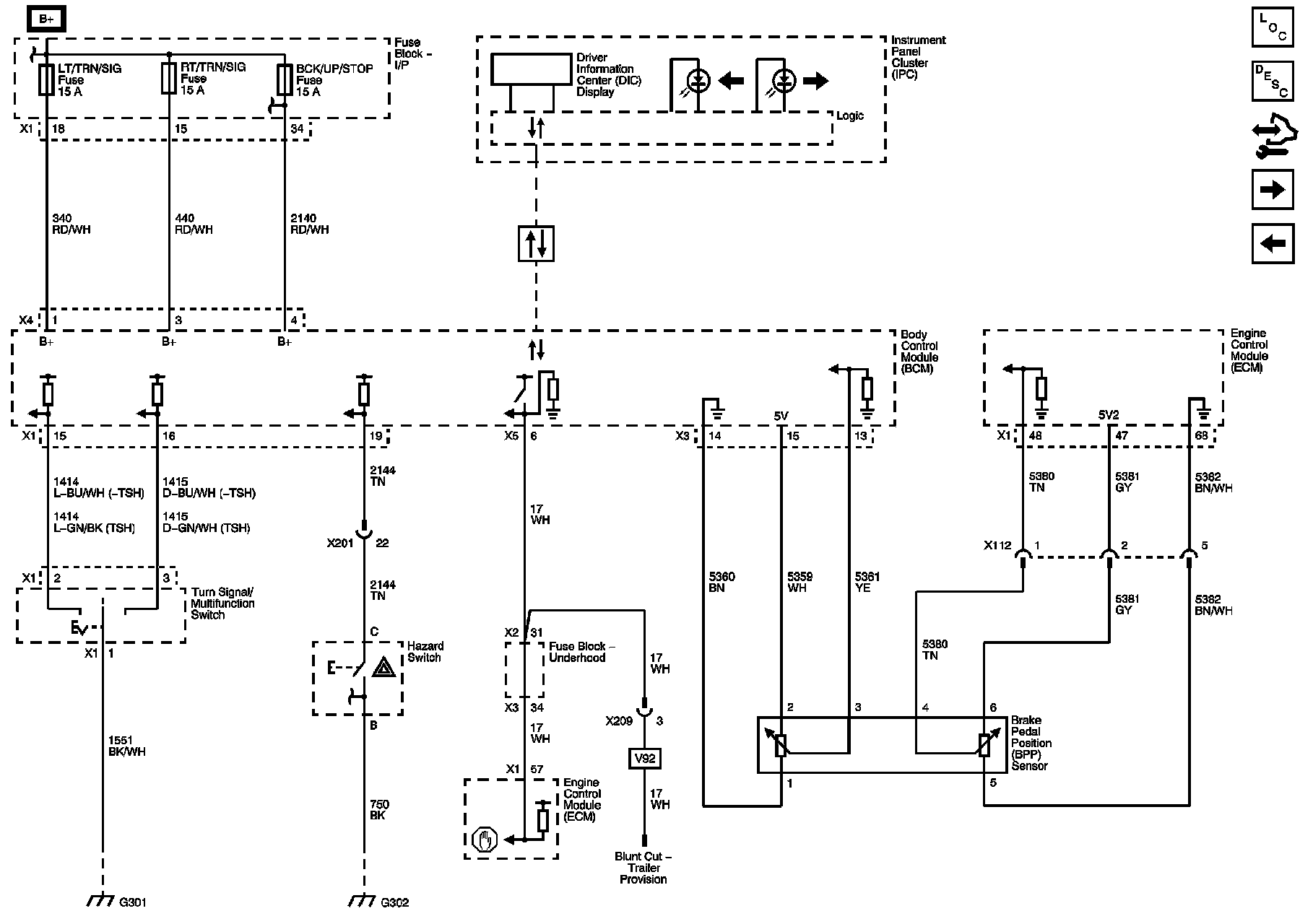

Turn Signal/Stop Lamps Controls and Indicators, Brake Applied Signal

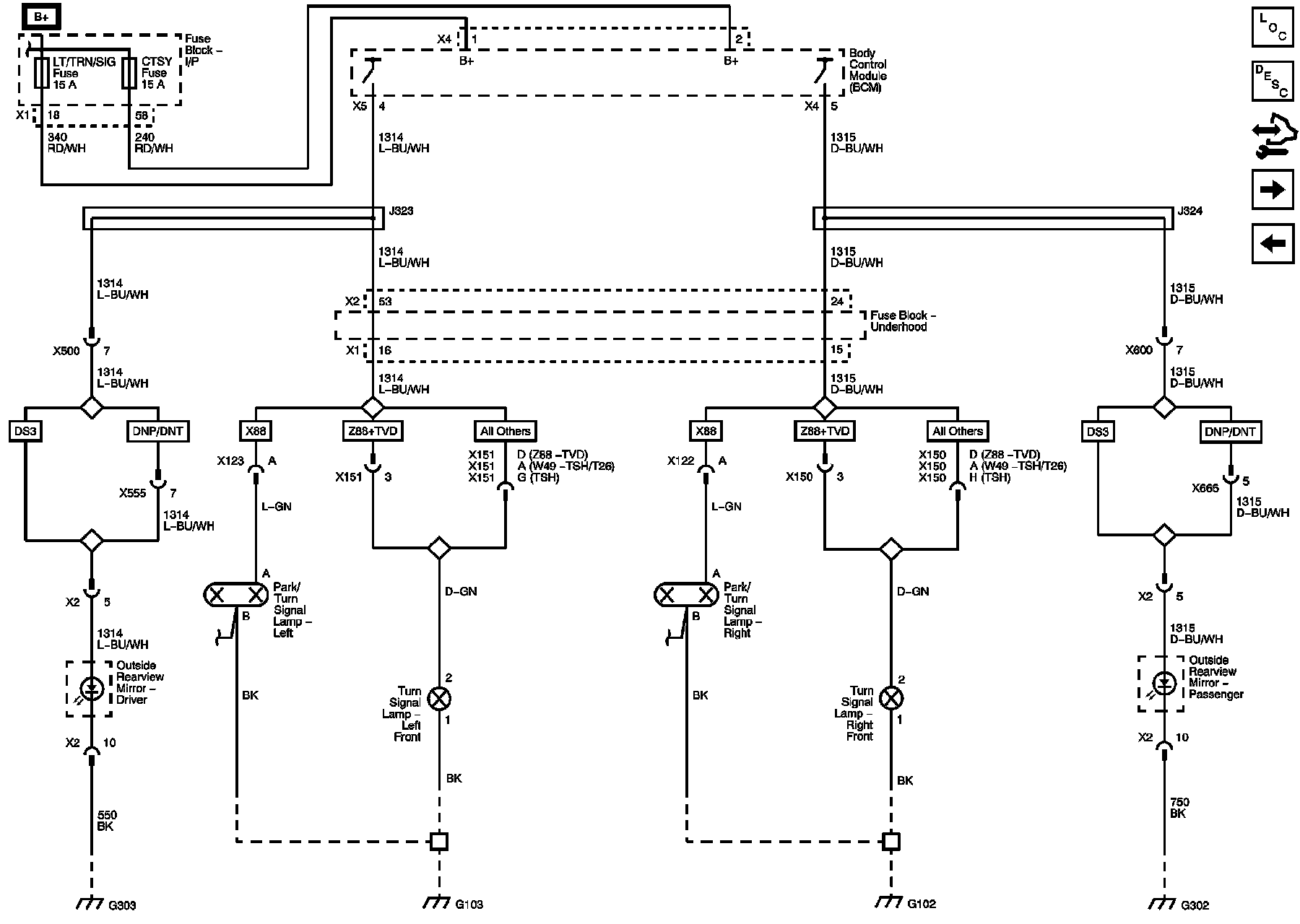

Front and Outside Mirror Turn Signals

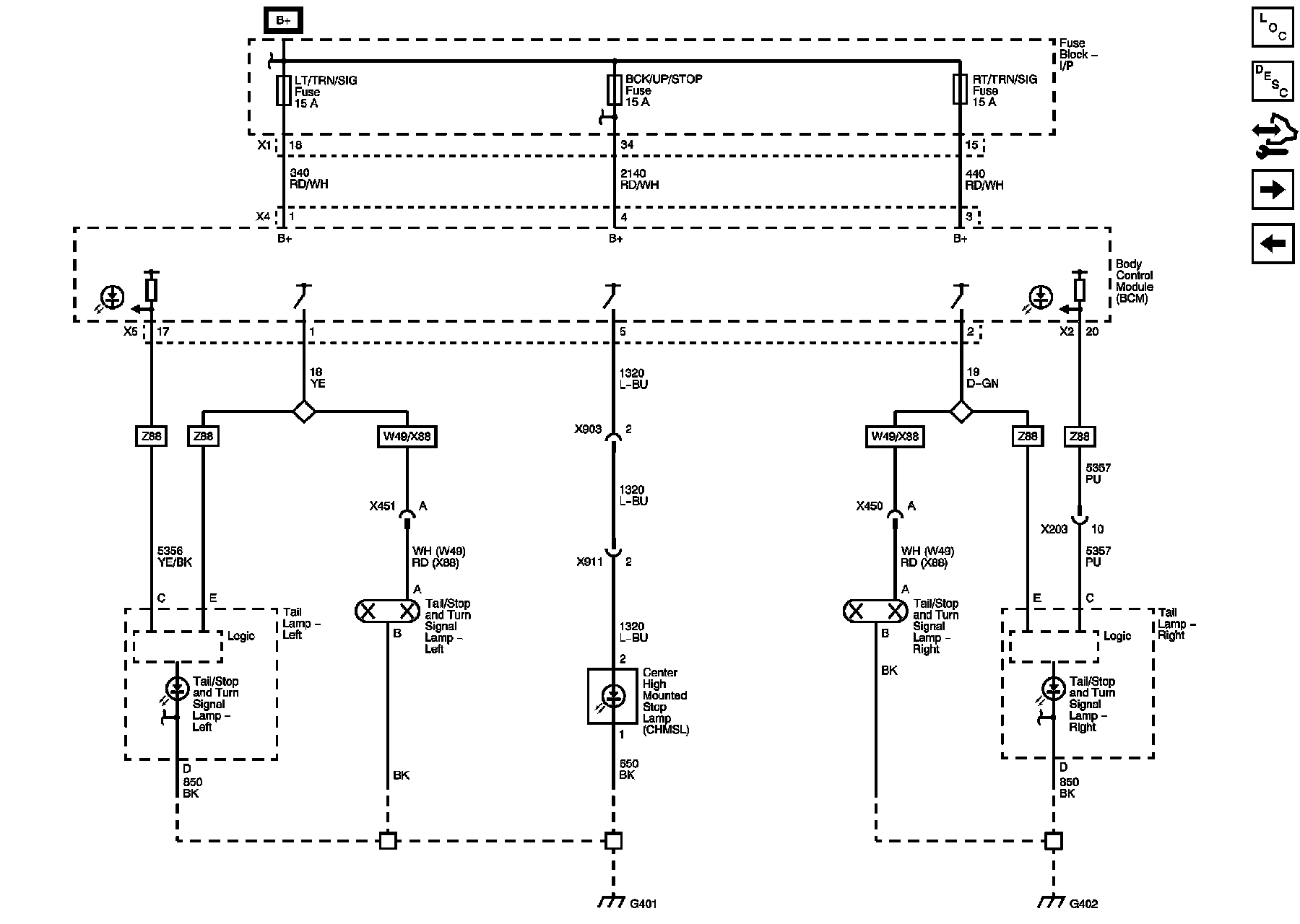

Rear Turn Signal/Stop Lamps and CHMSL (except T89)

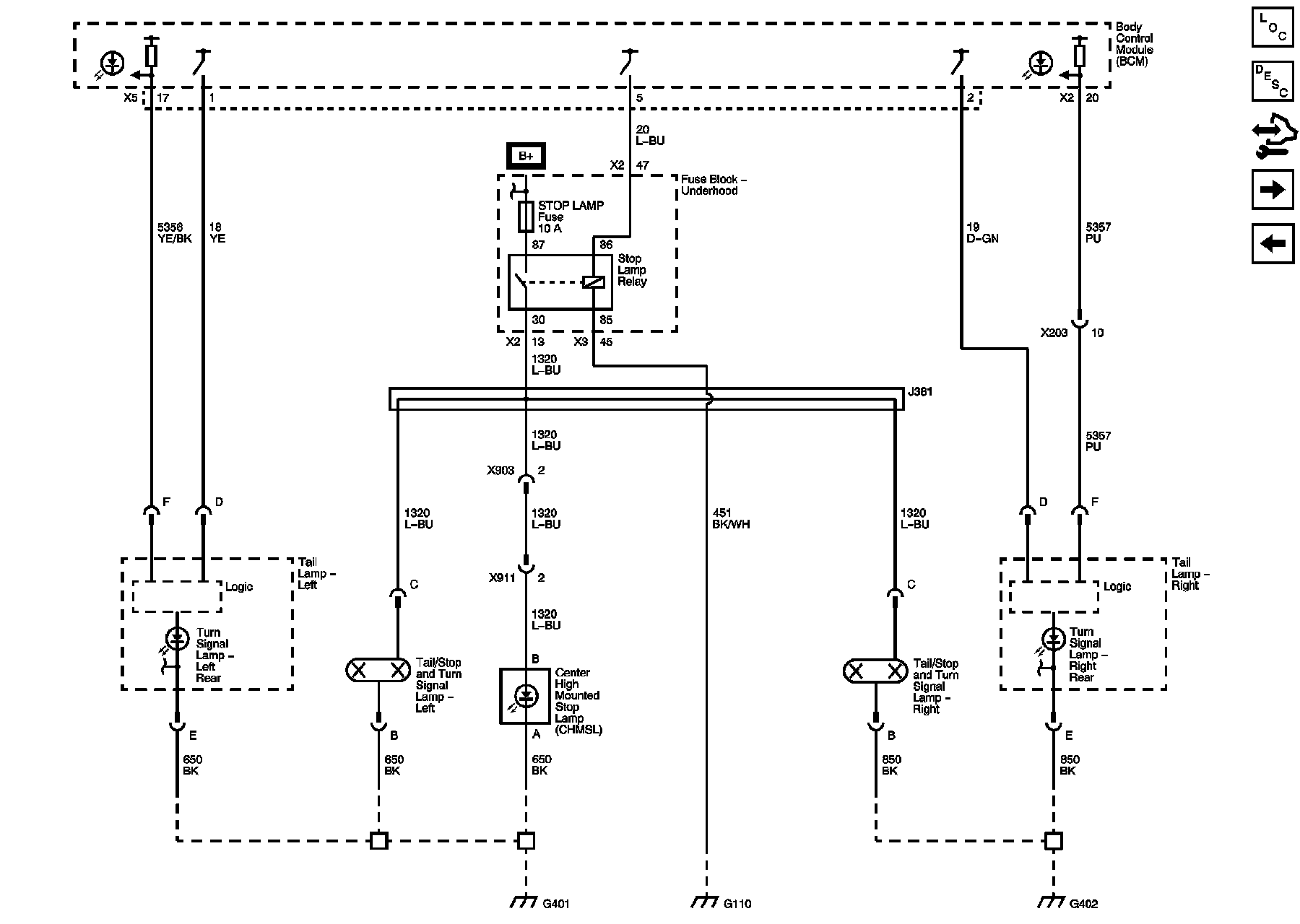

Rear Turn Signal/Stop Lamps and CHMSL (T89)






Backup Lamps
