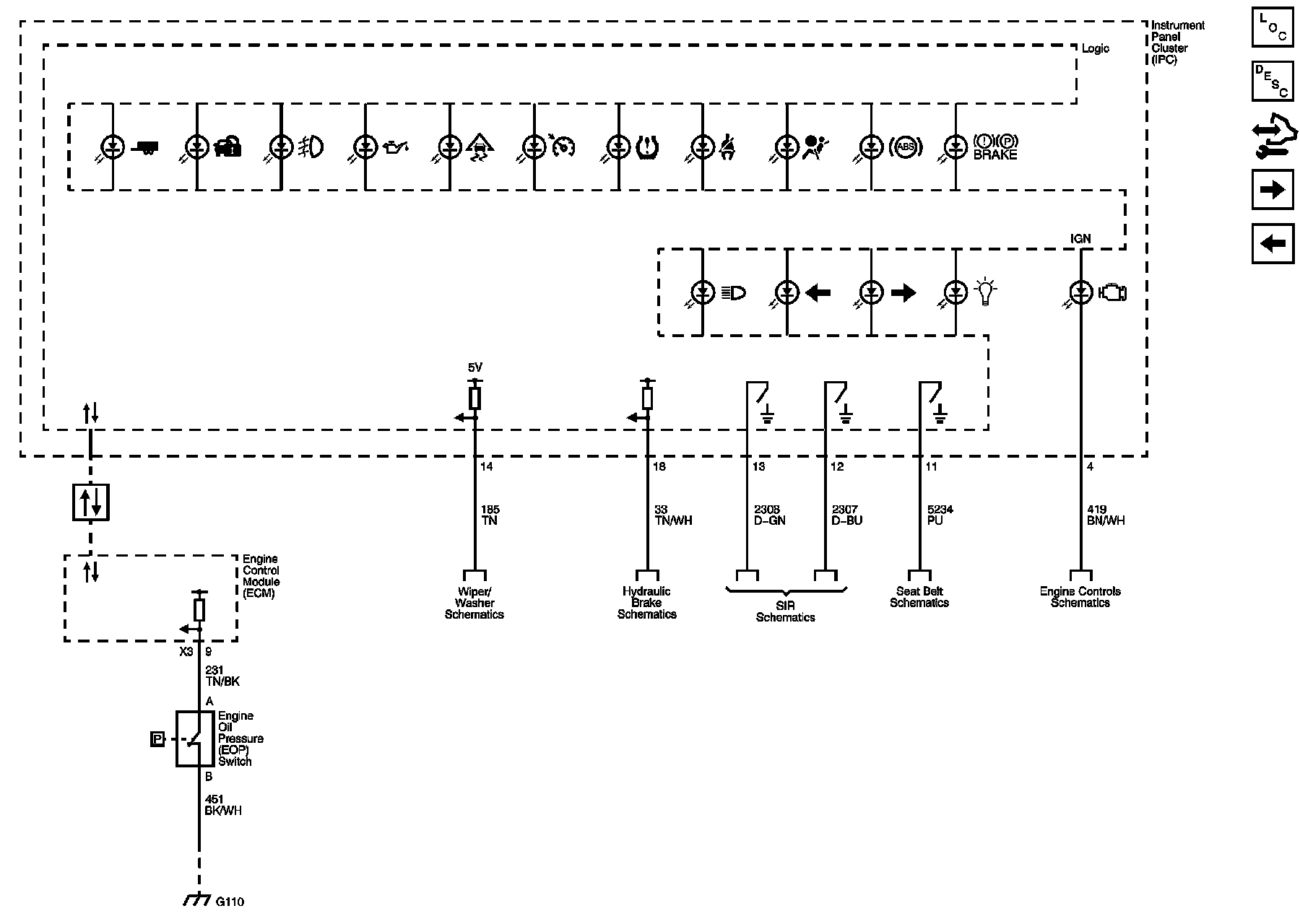

Home >> Chevrolet >> 2013 >> Traverse FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Schematics
