Home >> Chevrolet >> 2013 >> Traverse FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> HVAC - Automatic

HVAC - Automatic




HVAC Schematics

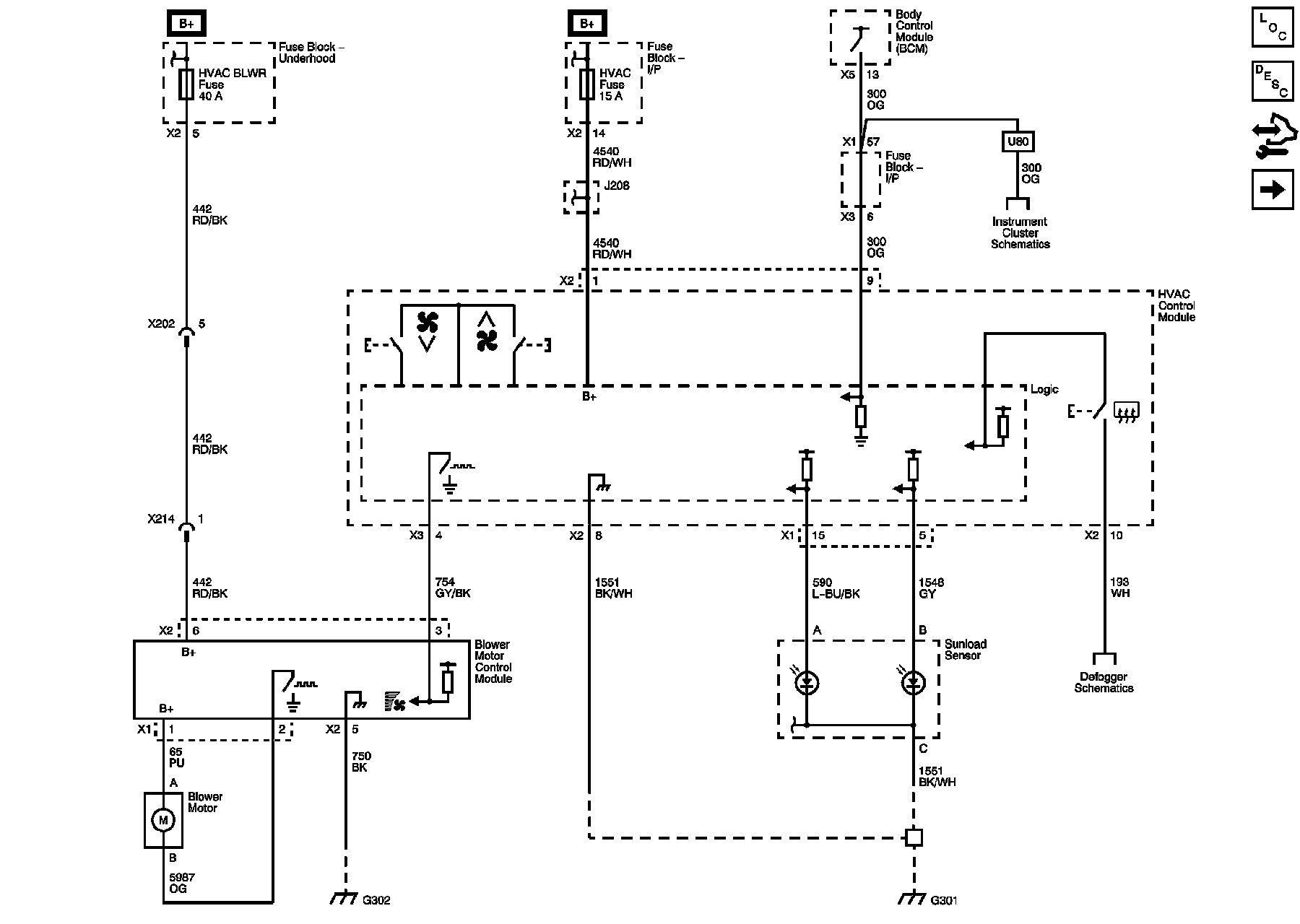

Power, Ground, Blower Control, Serial Data, and Sunload Sensor






Actuators






Sensors






Compressor Controls

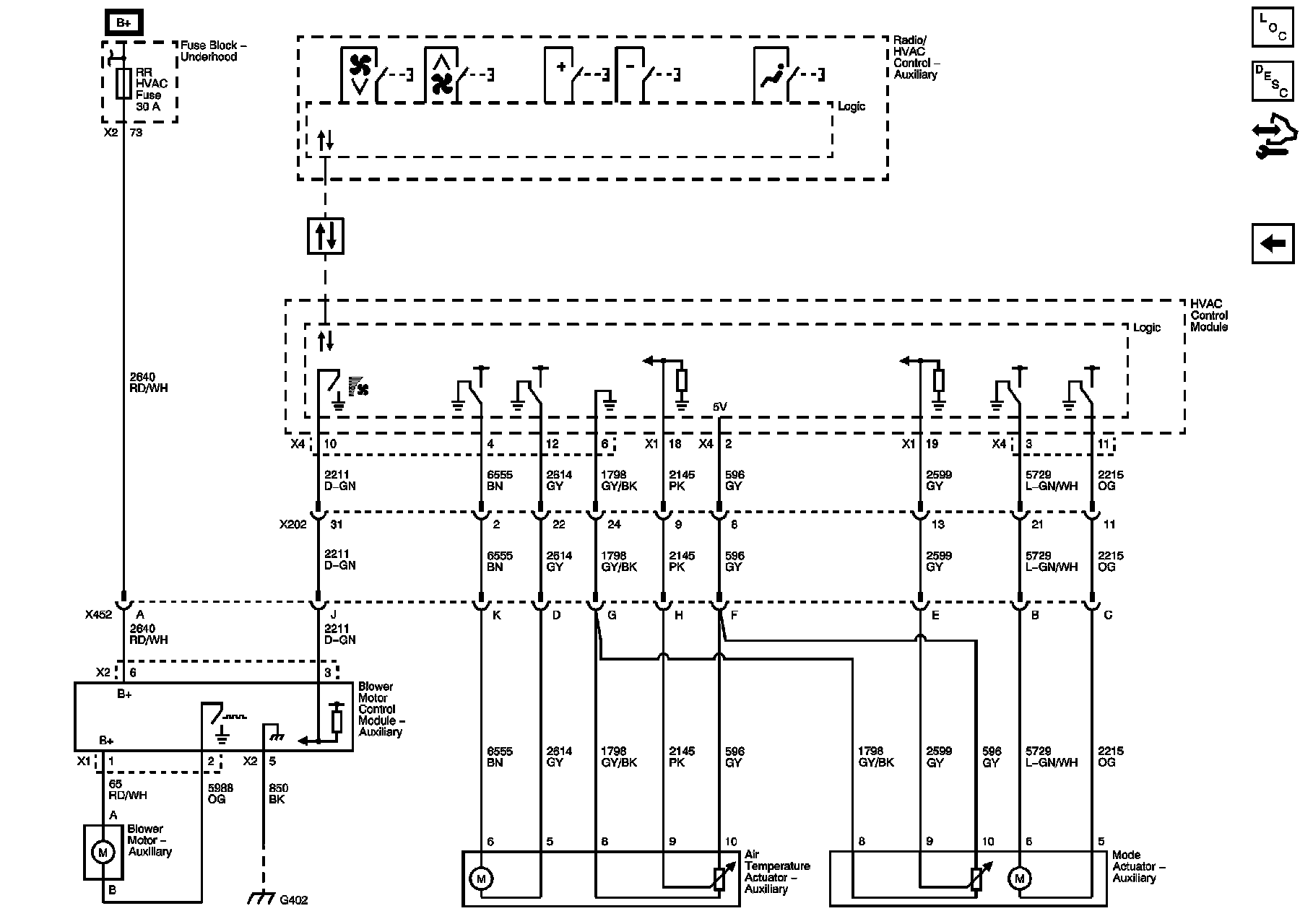

Rear HVAC
