Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics

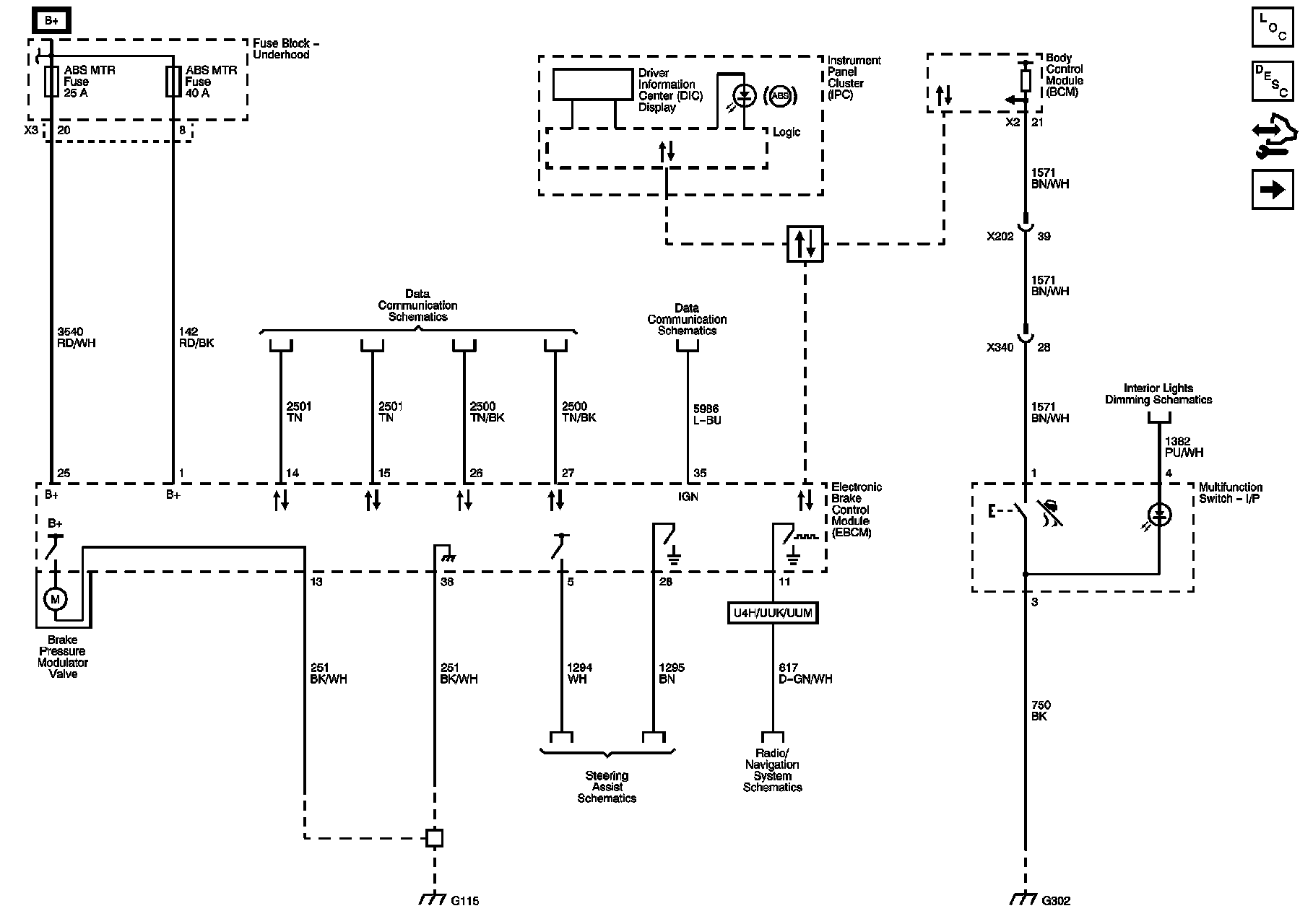

Power, Ground, Serial Data, and Traction Control






Wheel Speed Sensors






Stability Control
