X555




Inline Harness Connector End Views

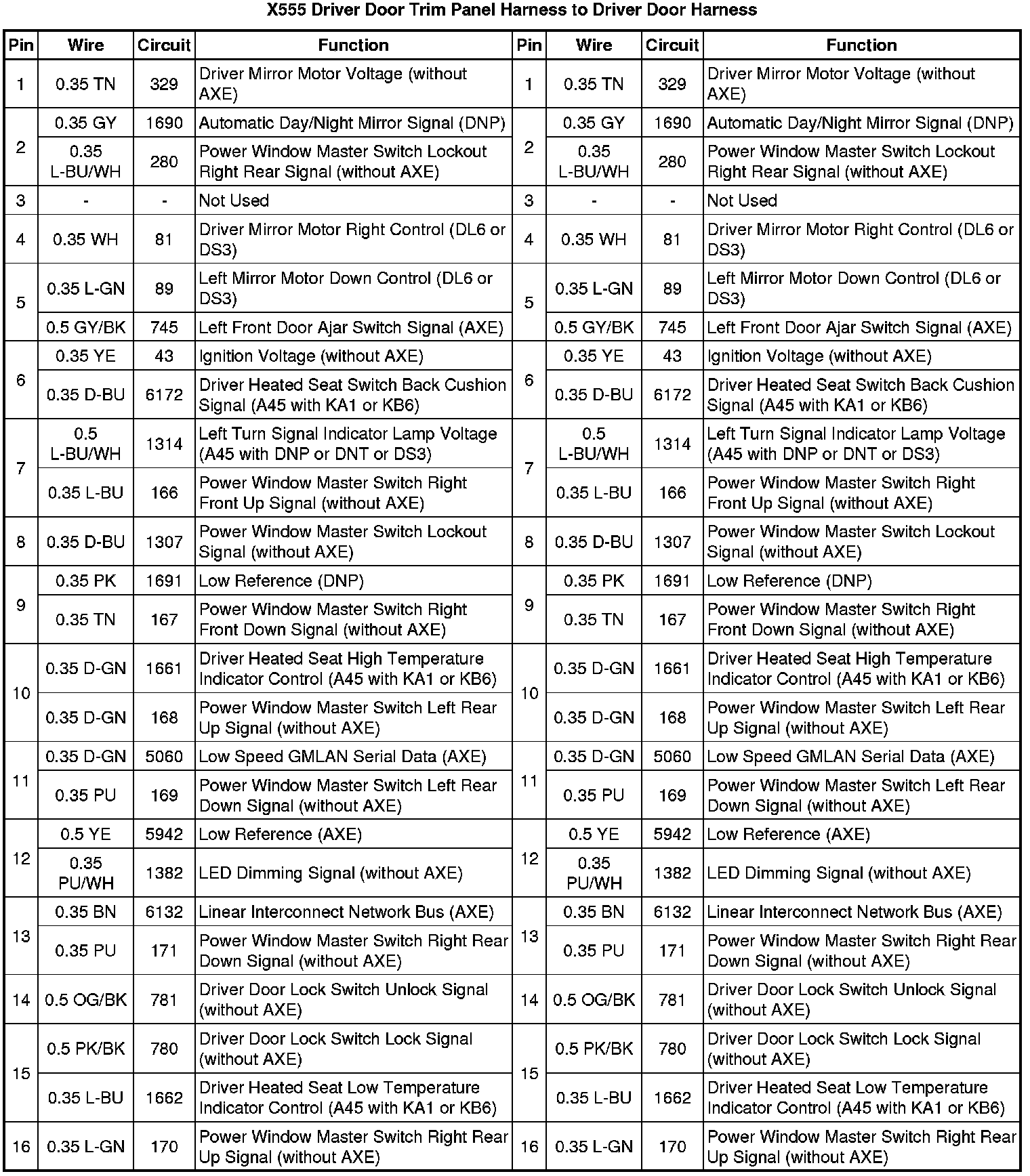

X555 Driver Door Trim Panel Harness to Driver Door Harness
