X440




Inline Harness Connector End Views

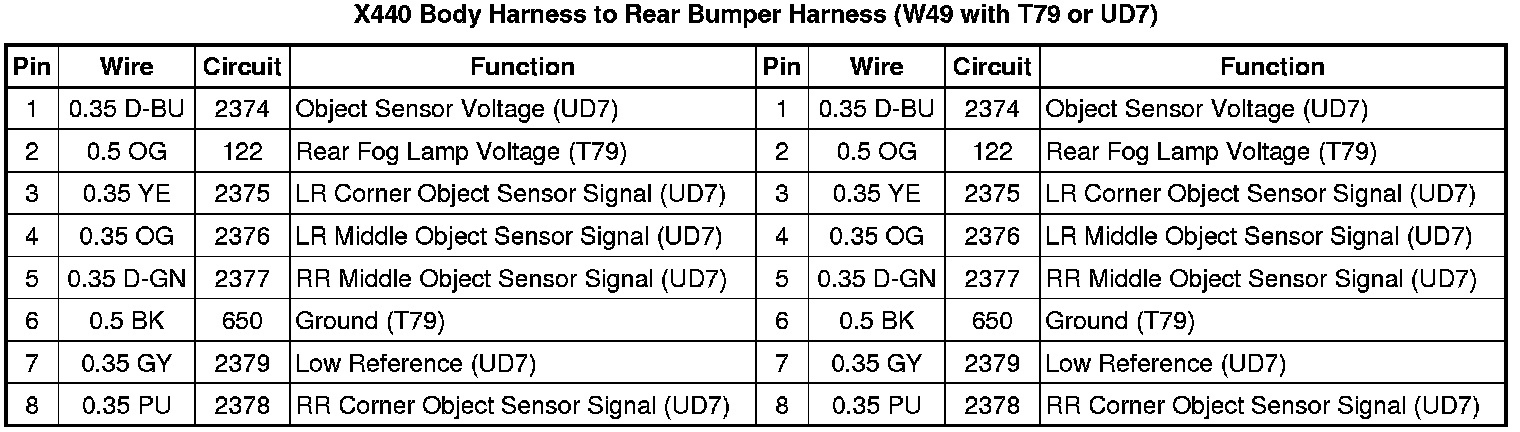

X440 Body Harness to Rear Bumper Harness (W49 with T79 or UD7)

















Inline Harness Connector End Views

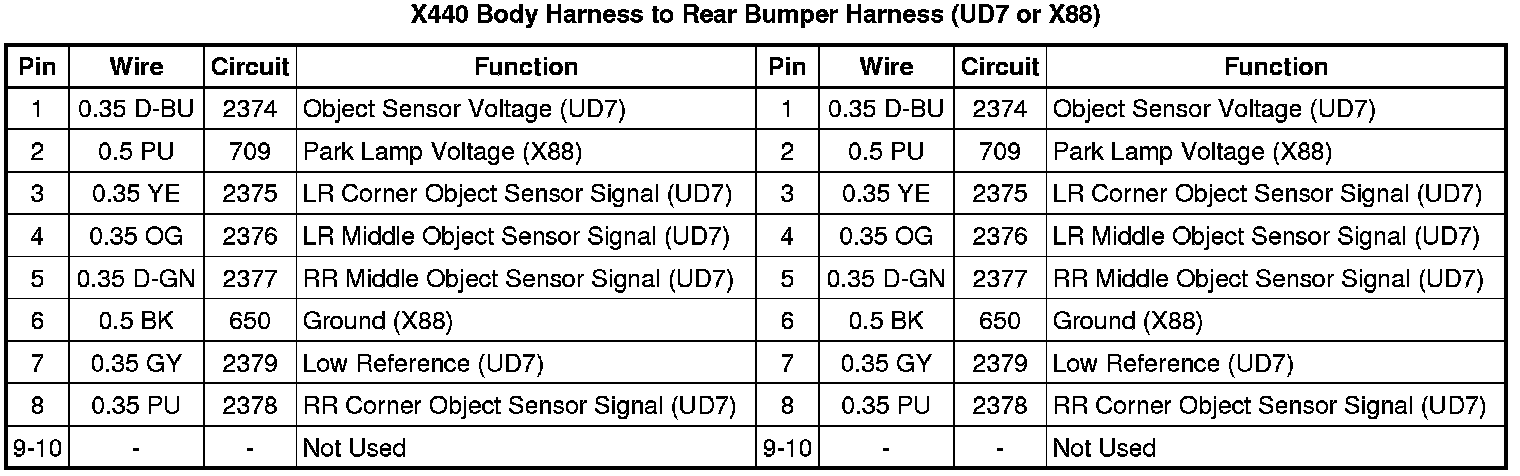

X440 Body Harness to Rear Bumper Harness (UD7 or X88)
