X393
X393
Inline Harness Connector End Views

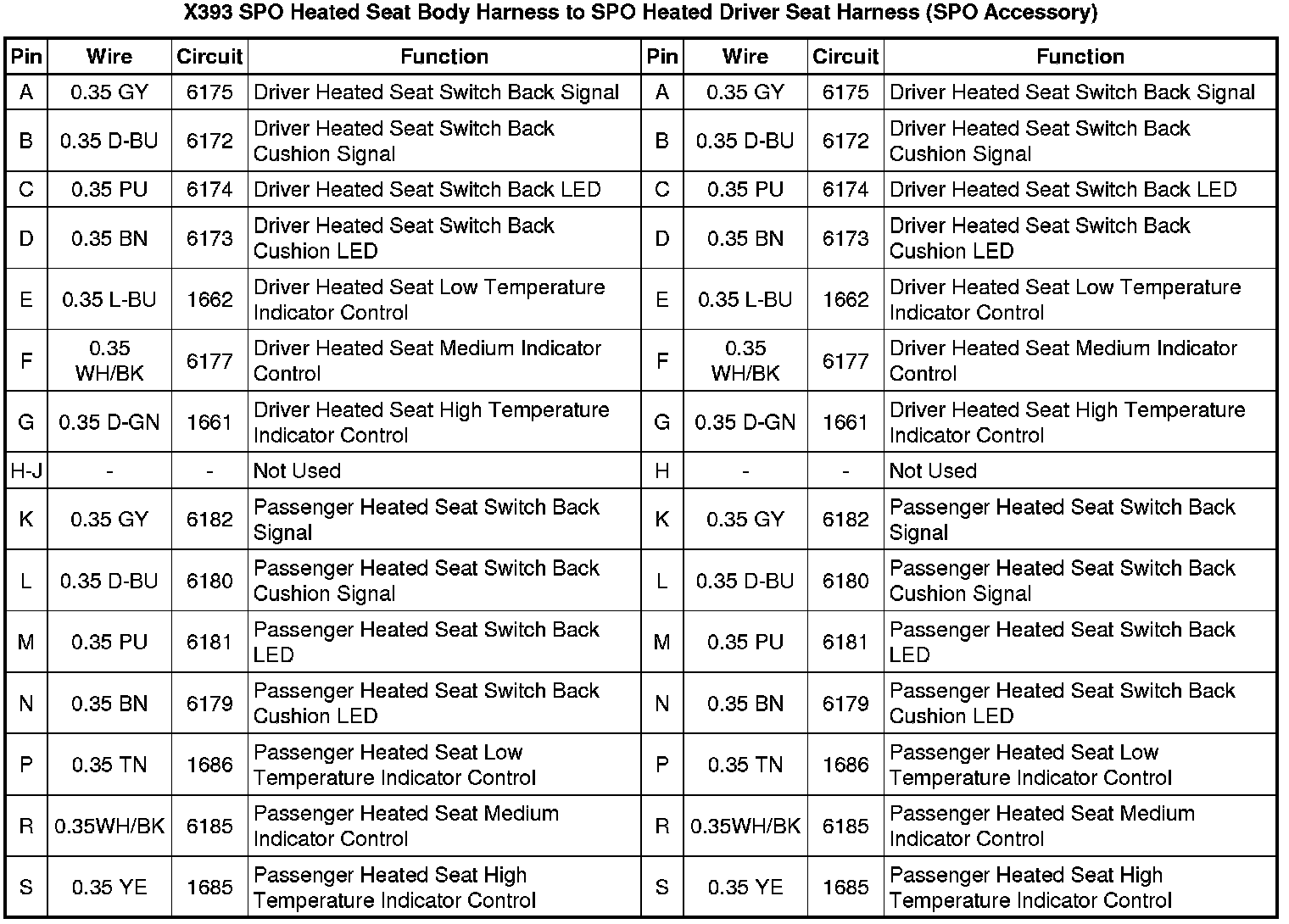

X393 SPO Heated Seat Body Harness to SPO Heated Driver Seat Harness (SPO Accessory)
