X151 Forward Lamp Harness to Left Headlamp Harness (W49 With TSH or T26)

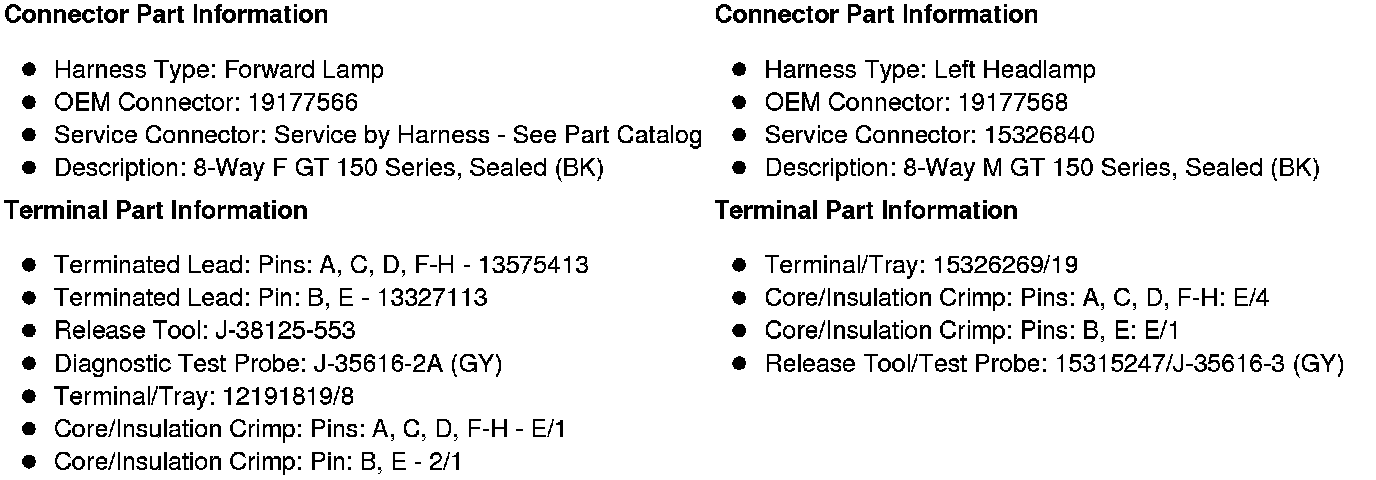

Inline Harness Connector End Views

X151 Forward Lamp Harness to Left Headlamp Harness (W49 with TSH or T26)
