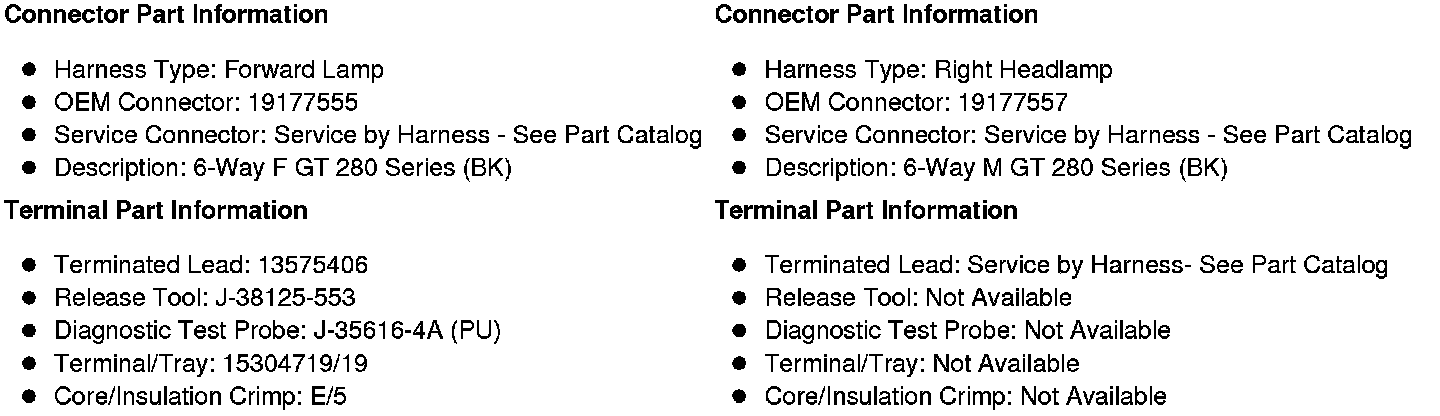

X150 Forward Lamp Harness to Right Headlamp Harness (Z88 Without TVD)




Inline Harness Connector End Views

X150 Forward Lamp Harness to Right Headlamp Harness (Z88 without TVD)
