Rear Output Shaft Seal and Bushing Removal

WARNING: This page is about a different variant/trim than selected.

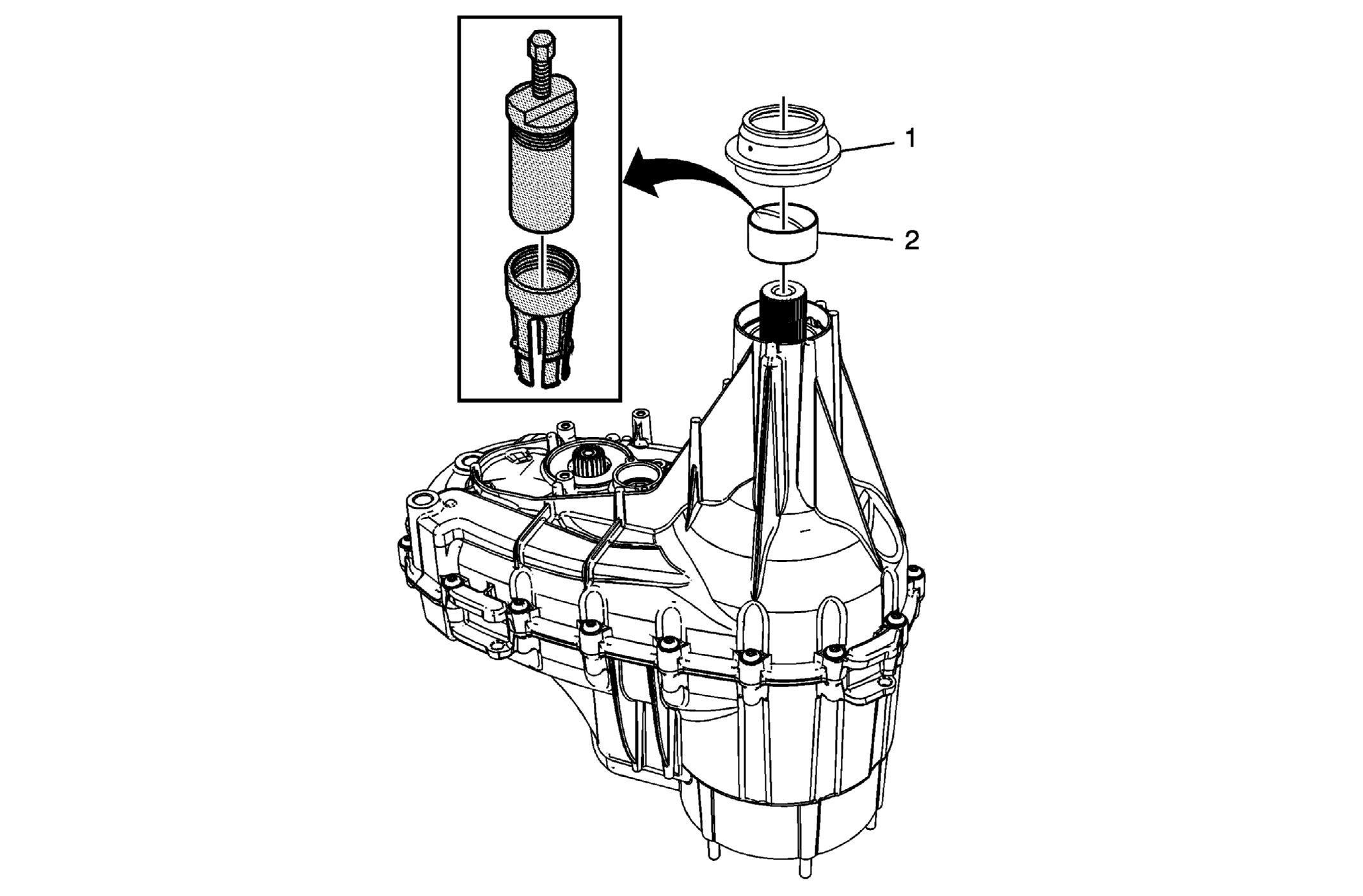

Fig 1: View Of Transfer Case Rear Output Shaft Seal & Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Rear Output Shaft Seal CAUTION: Refer to Transfer Case Seal Removal Caution .
2	Transfer Case Rear Output Shaft Bushing Follow the steps below for use of the J 45380 remover/installer. Procedure Install the finger section of the J 45380 remover/installer in front of the bushing. Install the tube and forcing screw assembly into the finger section. Ensure the forcing screw is backed out. Using a wrench on the forcing screw, remove the bushing. NOTE: Only remove the bushing if faulty. Refer to Transfer Case Rear Half Cleaning and Inspection . Special Tools J 45380 Transfer Case Rear Bushing Remover and Installer

Callout

Component Name

Transfer Case Rear Output Shaft Seal

CAUTION:

Transfer Case Rear Output Shaft Bushing
Follow the steps below for use of the J 45380 remover/installer.

Procedure

Install the finger section of the J 45380 remover/installer in front of the bushing.
Install the tube and forcing screw assembly into the finger section. Ensure the forcing screw is backed out.
Using a wrench on the forcing screw, remove the bushing.

NOTE:

Special Tools
J 45380 Transfer Case Rear Bushing Remover and Installer
