Actuator Shaft and Cam Assembly, Drive Chain, and Rear Output Shaft Assembly Removal
WARNING: This page is about a different variant/trim than selected.
Actuator Shaft and Cam Assembly, Drive Chain, and Rear Output Shaft Assembly Removal

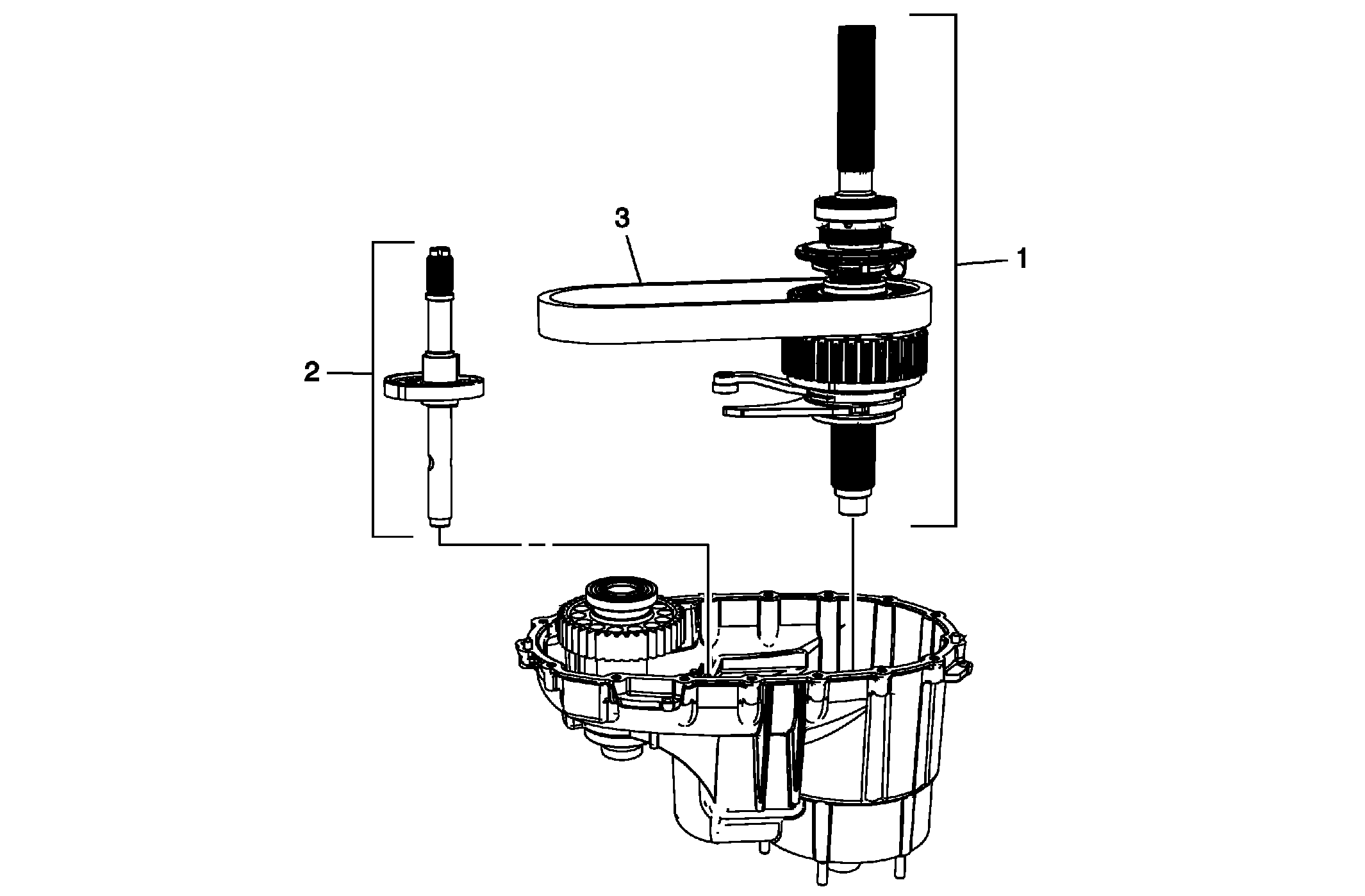

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Rear Output Shaft Assembly
NOTE:
Mount the assembly into a soft-jaw vice or holding fixture for disassembly. |
| 2 | Transfer Case Actuator Shaft and Cam Assembly |
| 3 | Transfer Case Front Output Shaft Drive Chain Assembly |
