Power, Ground, Serial Data, and Gauges Wiring Schematics

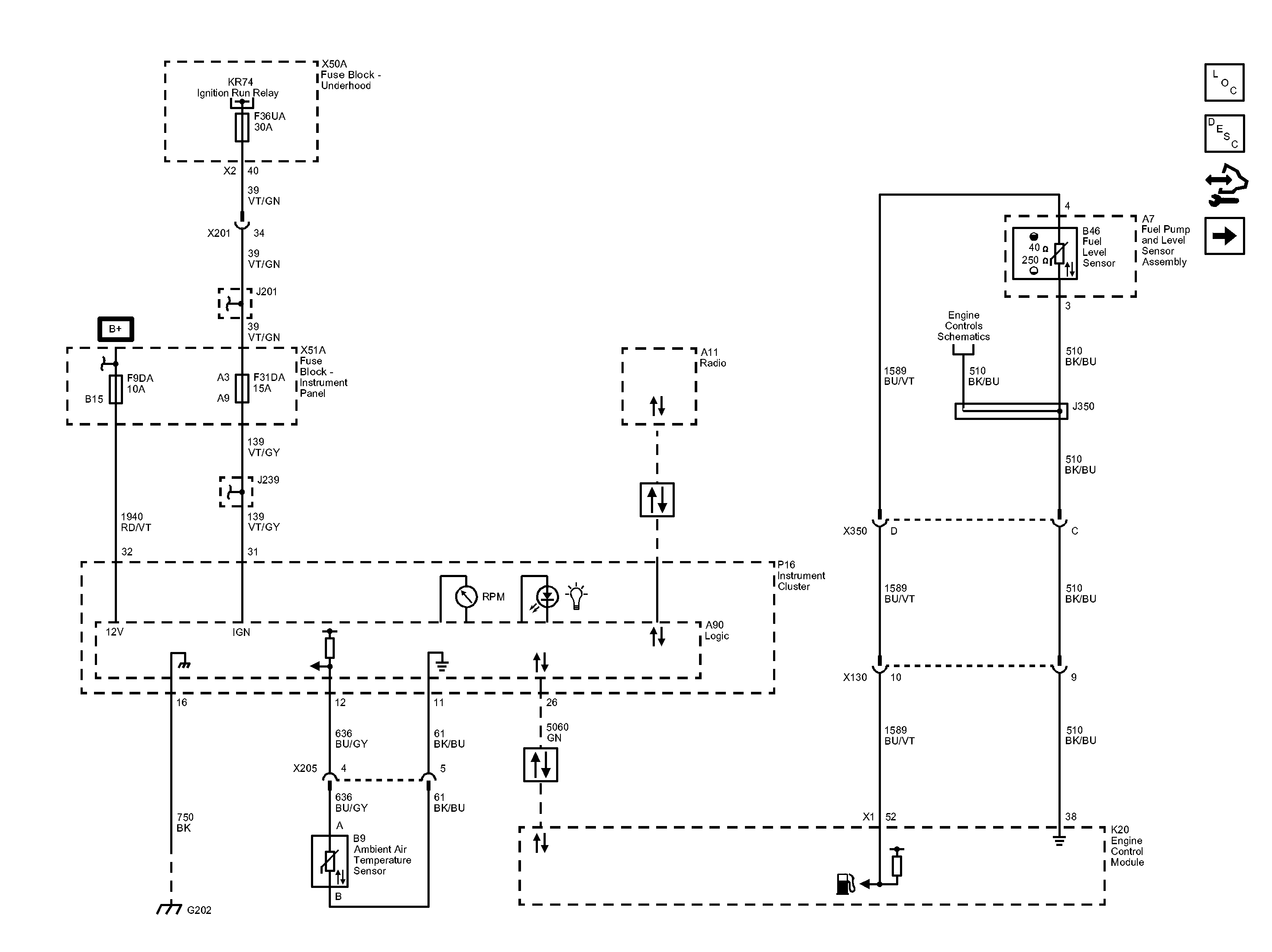

Fig 1: Power, Ground, Serial Data, and Gauges Wiring Schematics

GM2742919

Courtesy of GENERAL MOTORS COMPANY
