Passenger Indicators, Sensors, and Switches (AY0) Wiring Schematics
Passenger Indicators, Sensors, and Switches (AY0) Wiring Schematics

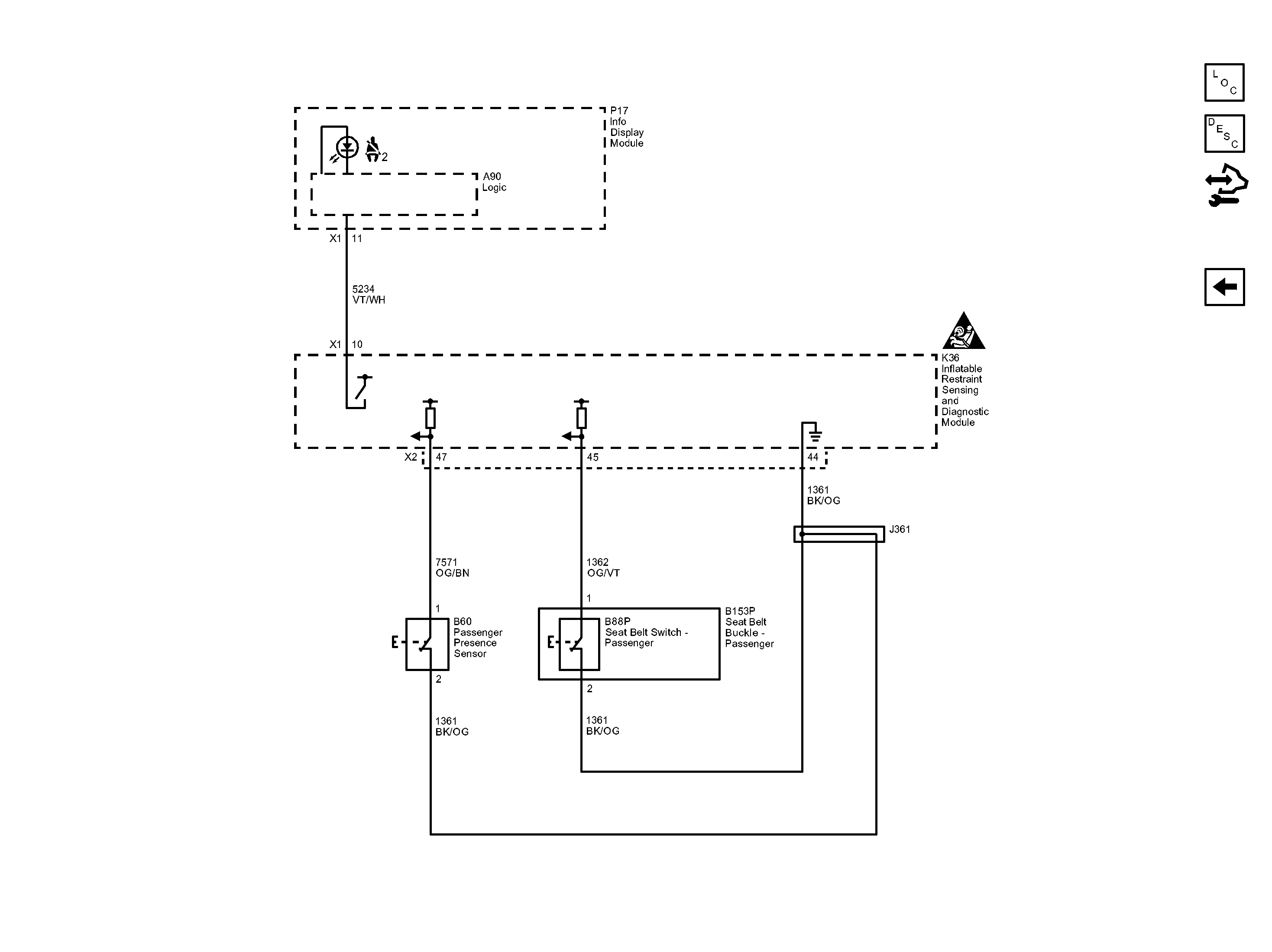

Fig 1: Passenger Indicators, Sensors, and Switches (AY0) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
