Stabilizer Shaft Link Replacement

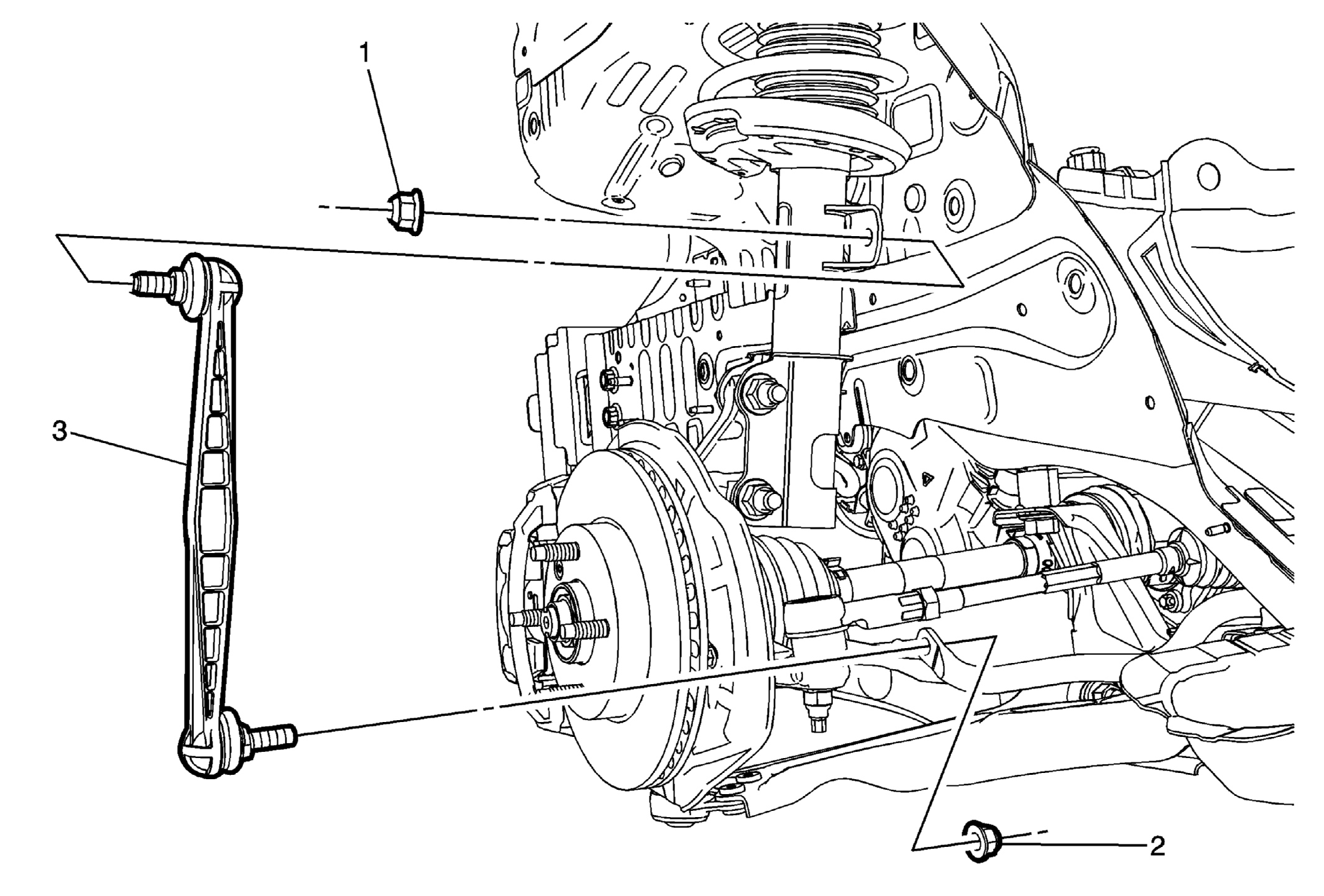

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and Support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Stabilizer Shaft Link Upper Nut CAUTION: Refer to Fastener Caution . Procedure Use the proper size Allen wrench to hold the stabilizer shaft link stud when loosening or tightening the stabilizer shaft link nut. Tighten 65 N.m (48 lb ft)
2	Front Stabilizer Shaft Link Lower Nut Procedure Use the proper size Allen wrench to hold the stabilizer shaft link stud when loosening or tightening the stabilizer shaft link nut. TIP: When removing the stabilizer shaft link lower nut, remove both of the upper nuts first and the lift up the stabilizer ends in order to get the tool access to the lower nut. Tighten 65 N.m (48 lb ft)
3	Front Stabilizer Shaft Link
