Steering Linkage Outer Tie Rod Replacement

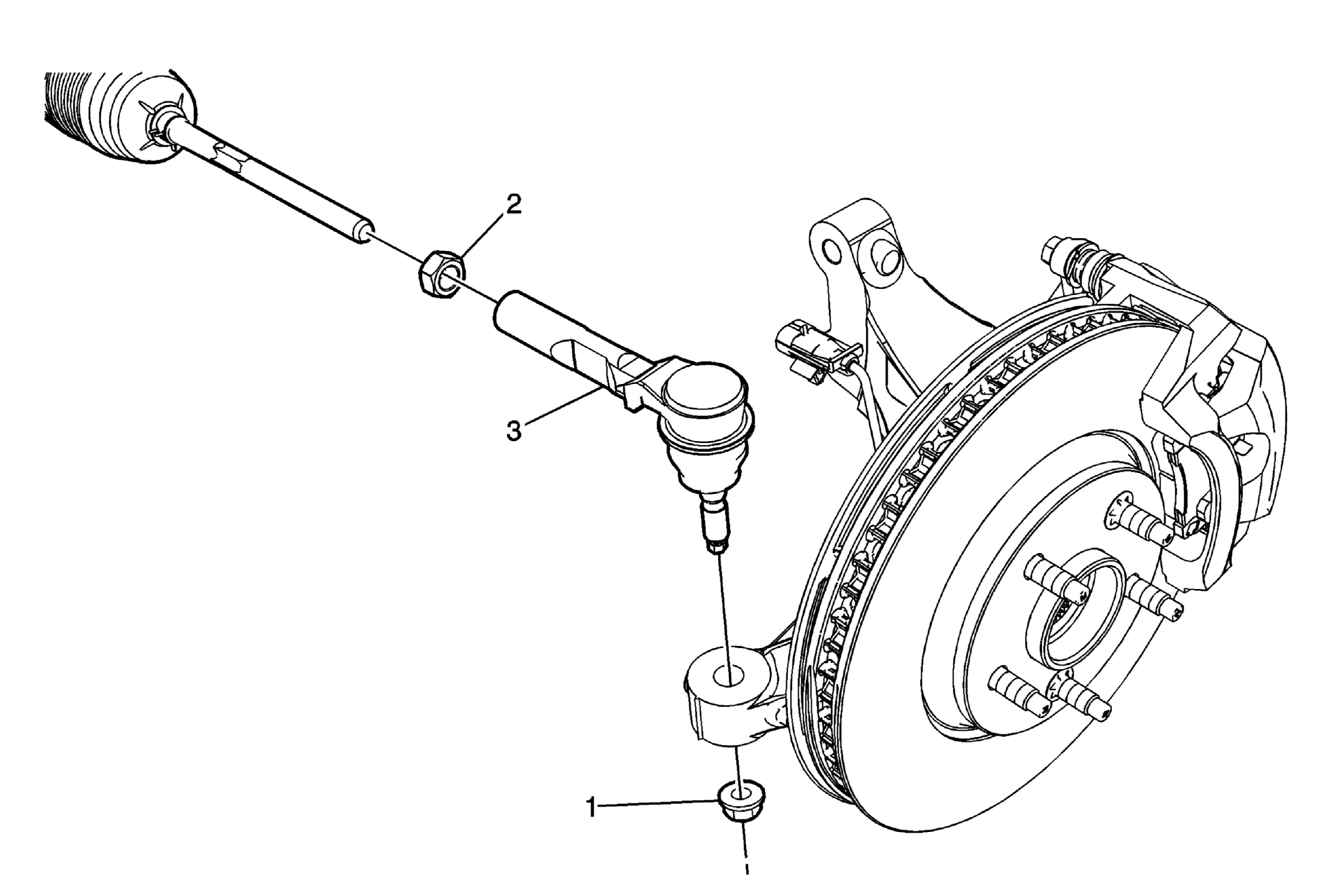

Fig 1: Identifying Rack and Pinion Outer Tie Rod End

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Steering Linkage Outer Tie Rod Nut WARNING: This component is equipped with torque-to-yield fasteners. Install a NEW torque-to-yield fastener when installing this component. Failure to replace the torque-to-yield fastener could cause bodily injury and damage to the vehicle or component. CAUTION: Refer to Fastener Caution . Procedure Remove the steering linkage outer tie rod nut. DISCARD the nut. Install a NEW outer tie rod nut. Use the EN-45059 meter in order to tighten the outer tie rod nut to the specification. Tighten 30 N.m (22 lb ft) 128 degrees Special Tools EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools .
2	Steering Linkage Inner Tie Rod Nut Procedure Use paint in order to place match marks on the steering linkage inner tie rod nut and on the steering linkage inner tie rod. During installation, align the match marks. Do not tighten the nut during installation. Tighten the nut after adjusting the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
3	Steering Linkage Outer Tie Rod CAUTION: Do not free the ball stud by using a pickle fork or a wedge-type tool. Damage to the seal or bushing may result. Procedure Use the CH-161-B puller in order to separate the steering linkage outer tie rod from the steering knuckle. Inspect the steering linkage inner tie rod for bent or damaged threads. Clean the tapered surface of the steering knuckle. After the installation is complete, measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment . Special Tools CH-161-B Bearing Puller For equivalent regional tools, refer to Special Tools .
