Speed and Temperature Sensors, Pressure and Shift Controls

WARNING: This page is about a different variant/trim than selected.

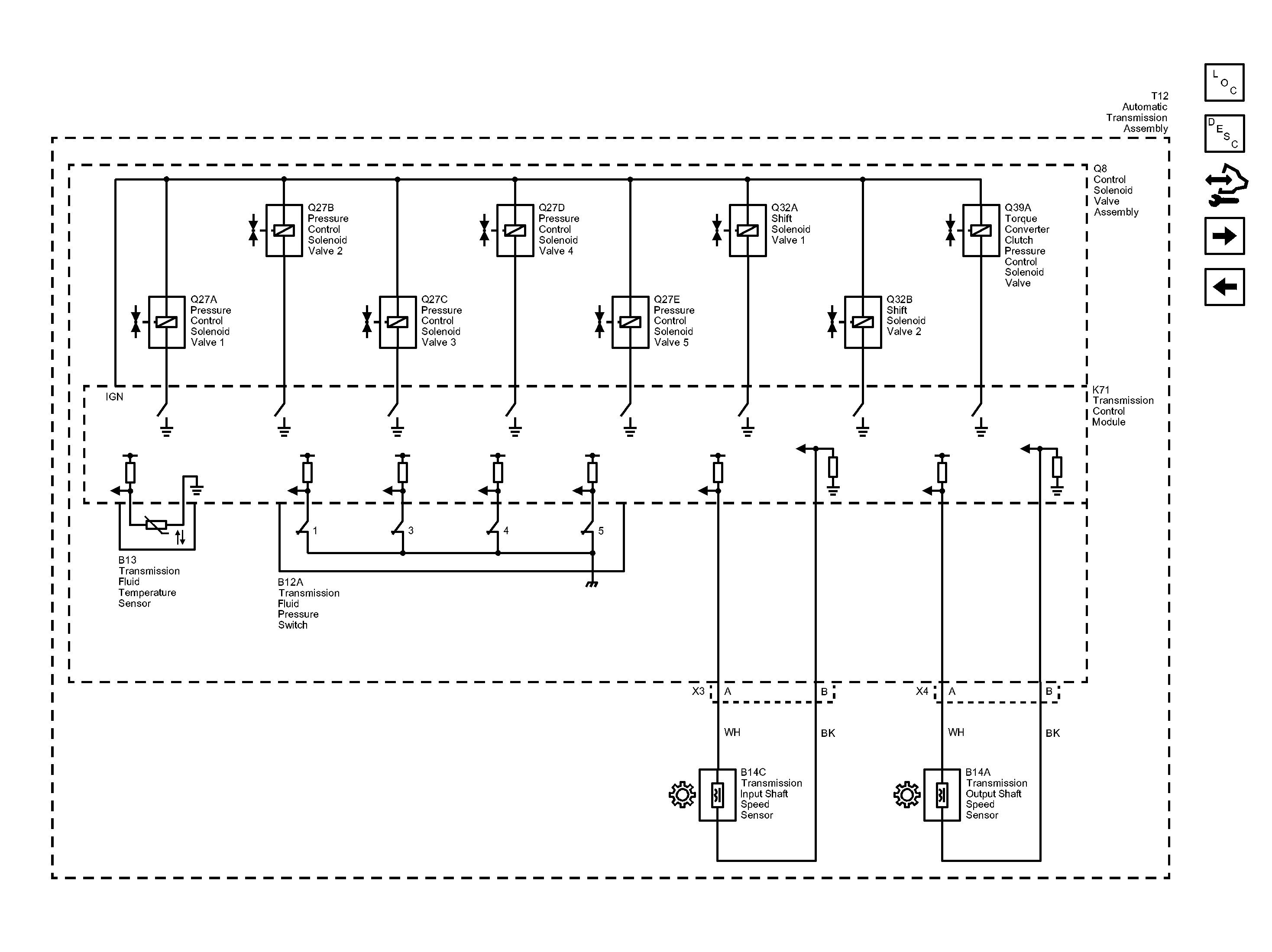

Fig 1: Speed and Temperature Sensors, Pressure and Shift Controls Wiring Schematic
GM2781811Courtesy of GENERAL MOTORS COMPANY
