Internal Mode Switch and Tap Up/Tap Down Switches

WARNING: This page is about a different variant/trim than selected.

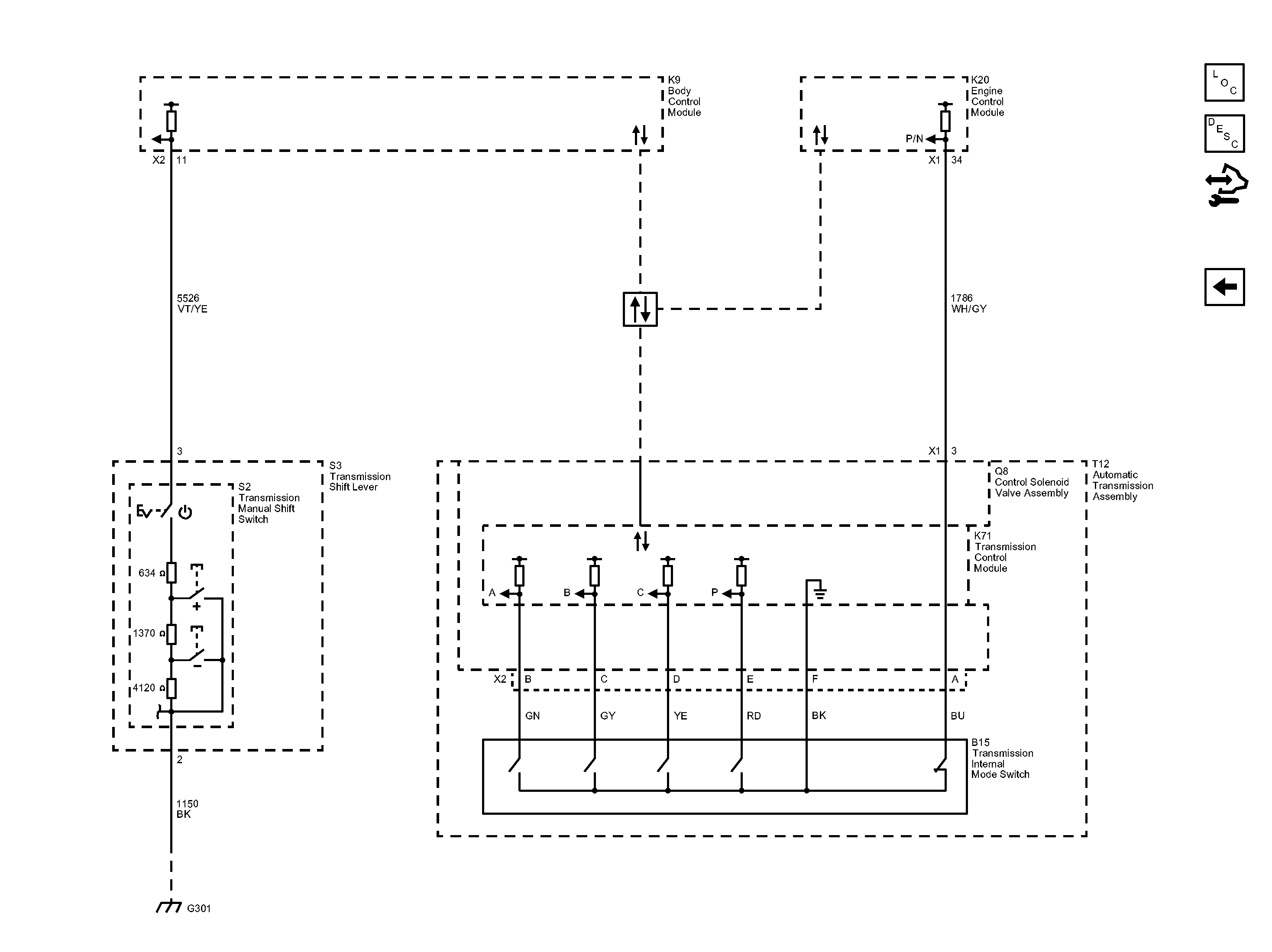

Fig 1: Internal Mode Switch and Tap Up/Tap Down Switches Wiring Schematic
GM2781817Courtesy of GENERAL MOTORS COMPANY
