Section 6 (Engine Controls/Fuel - 1.8L (LUW, LWE) - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Module Power, Ground, Serial Data and MIL
Module Power, Ground, Serial Data and MIL
WARNING:
This page is about a different variant/trim than selected.

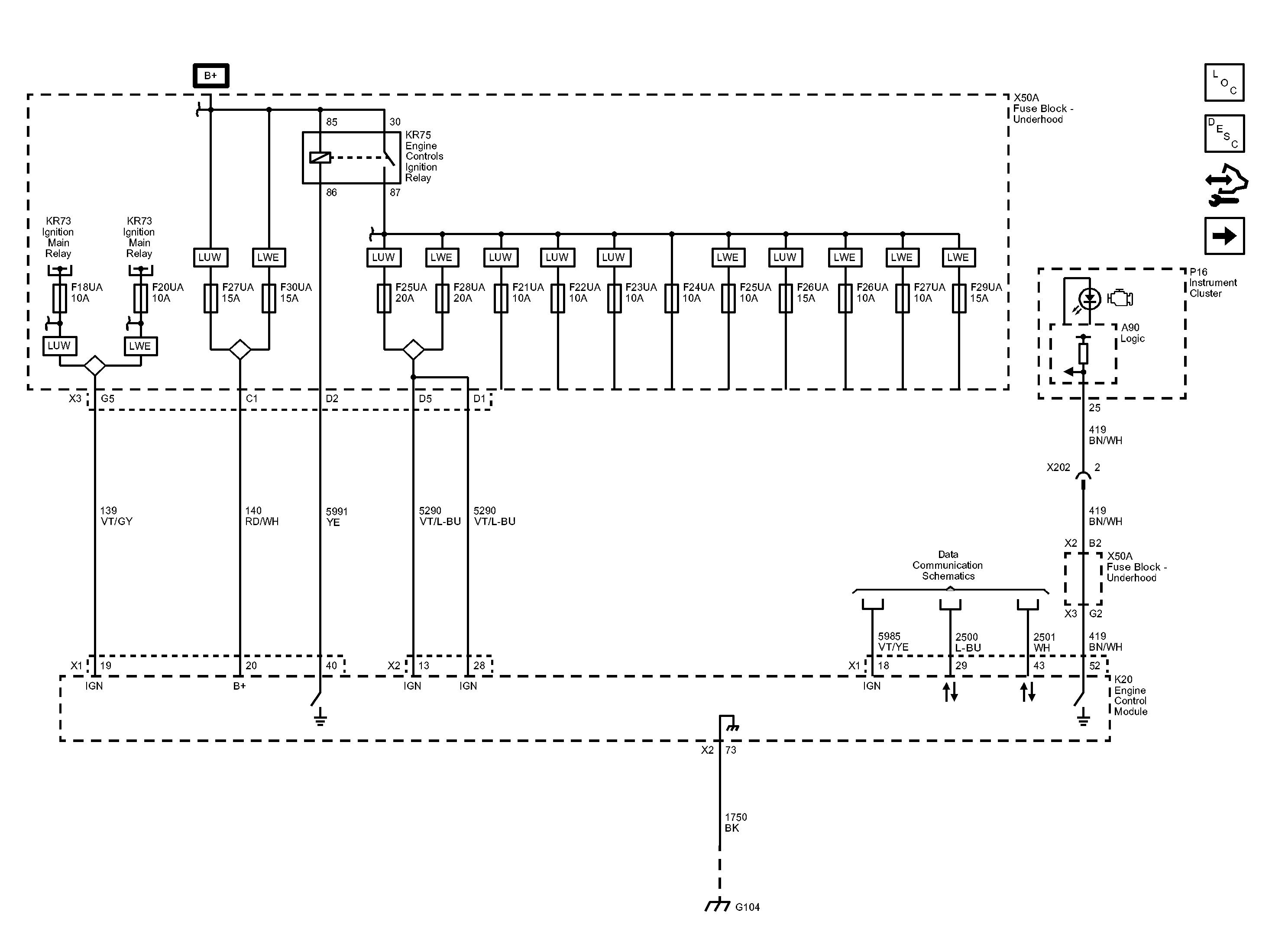

Fig 1: Module Power, Ground, Serial Data and MIL Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
