Ignition Controls - Camshaft, Crankshaft, Knock Sensors & Camshaft Actuators

WARNING: This page is about a different variant/trim than selected.

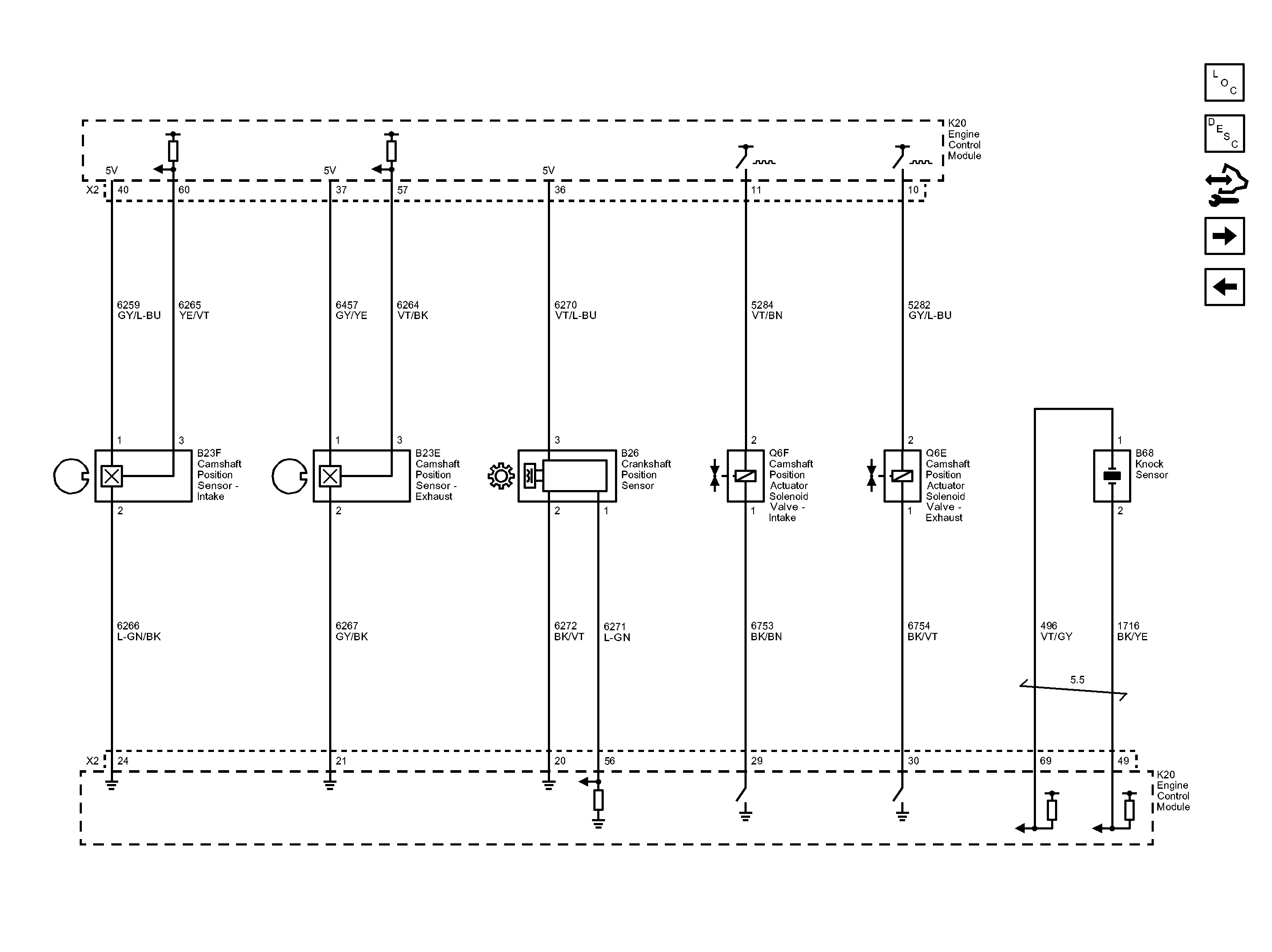

Fig 1: Ignition Controls - Camshaft, Crankshaft, Knock Sensors & Camshaft Actuators Wiring Schematic
GM2780460Courtesy of GENERAL MOTORS COMPANY
