Device Controls - Secondary Air Injection (NU6)

WARNING: This page is about a different variant/trim than selected.

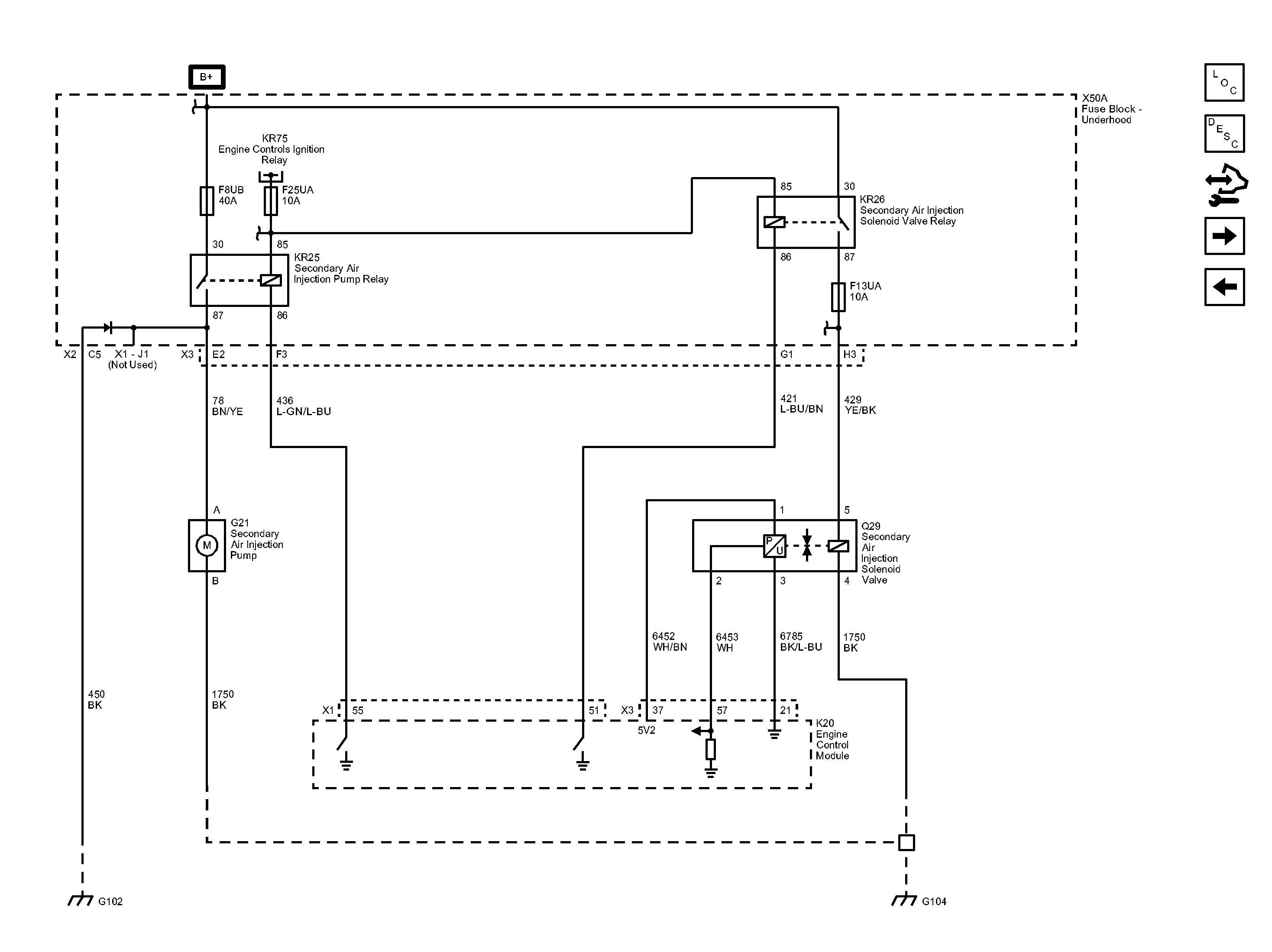

Fig 1: Device Controls - Secondary Air Injection (NU6) Wiring Schematic
GM2876978Courtesy of GENERAL MOTORS COMPANY
