Section 5 (Manual Transmission - F13-5/F15-5/F17-5 (M26))
>>
Schematic Wiring Diagrams
>>
Manual Transmission Wiring Schematics
>>
M26
Manual Transmission Wiring Schematics: M26
WARNING:
This page is about a different variant/trim than selected.

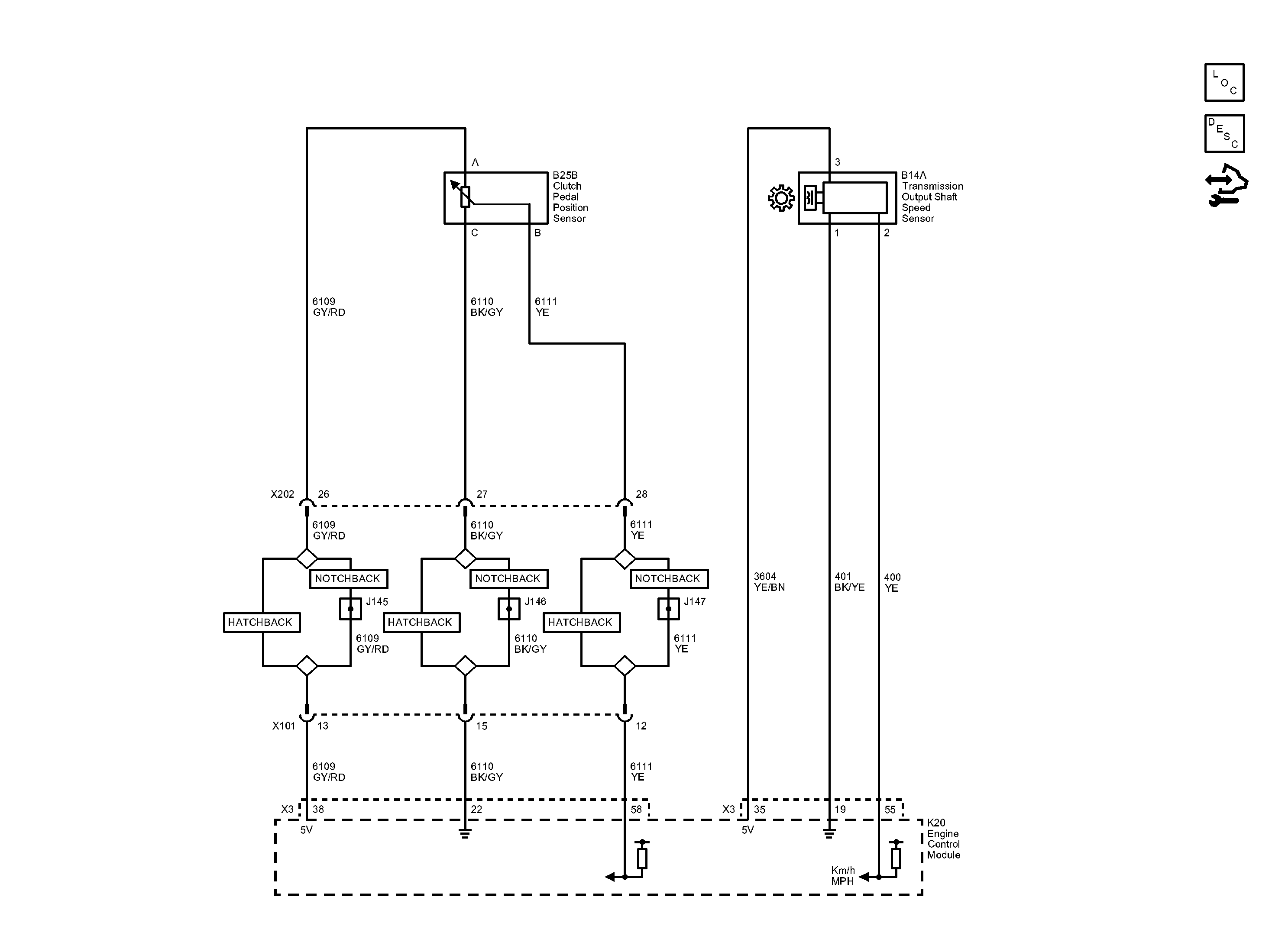

Fig 1: Manual Transmission Wiring Schematic (M26)
Courtesy of GENERAL MOTORS COMPANY
