Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Coat the O-ring with transmission fluid.

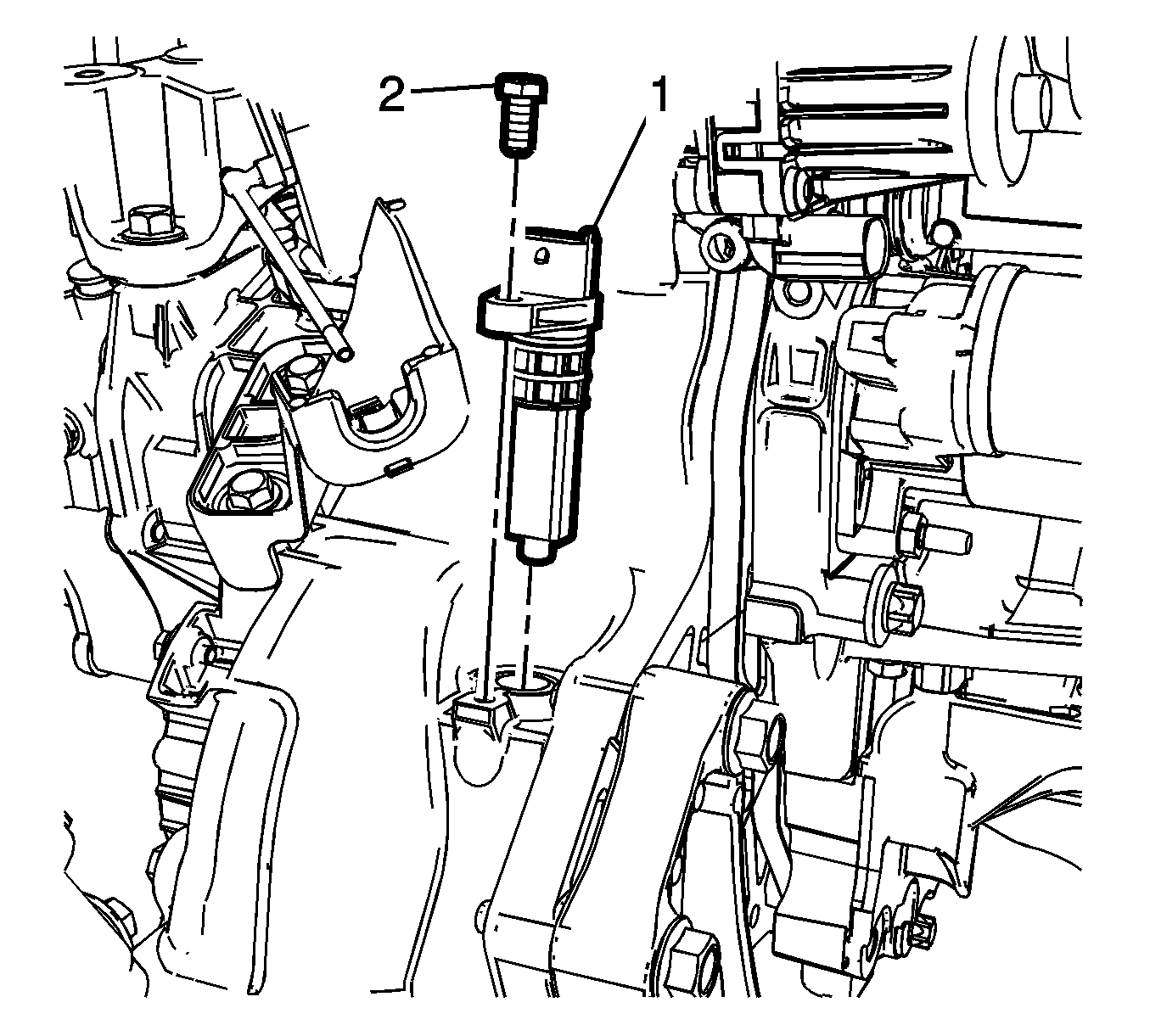

- Install the speedometer-driven gear (1).
- Install the speedometer housing retaining bolt (2) and tighten to 4 N.m (35 lb in).
- Connect the speedometer speed sensor electrical connector.
CAUTION:
Refer to Fastener Caution .
