Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
  3. Using a suitable jack stand, support the rear of the powertrain.
    4. Fig 1: Transmission Rear Mount Bracket Through Bolt
    GM2503662Courtesy of GENERAL MOTORS COMPANY
  4. Remove and DISCARD the transmission mount to bracket through bolt (1).

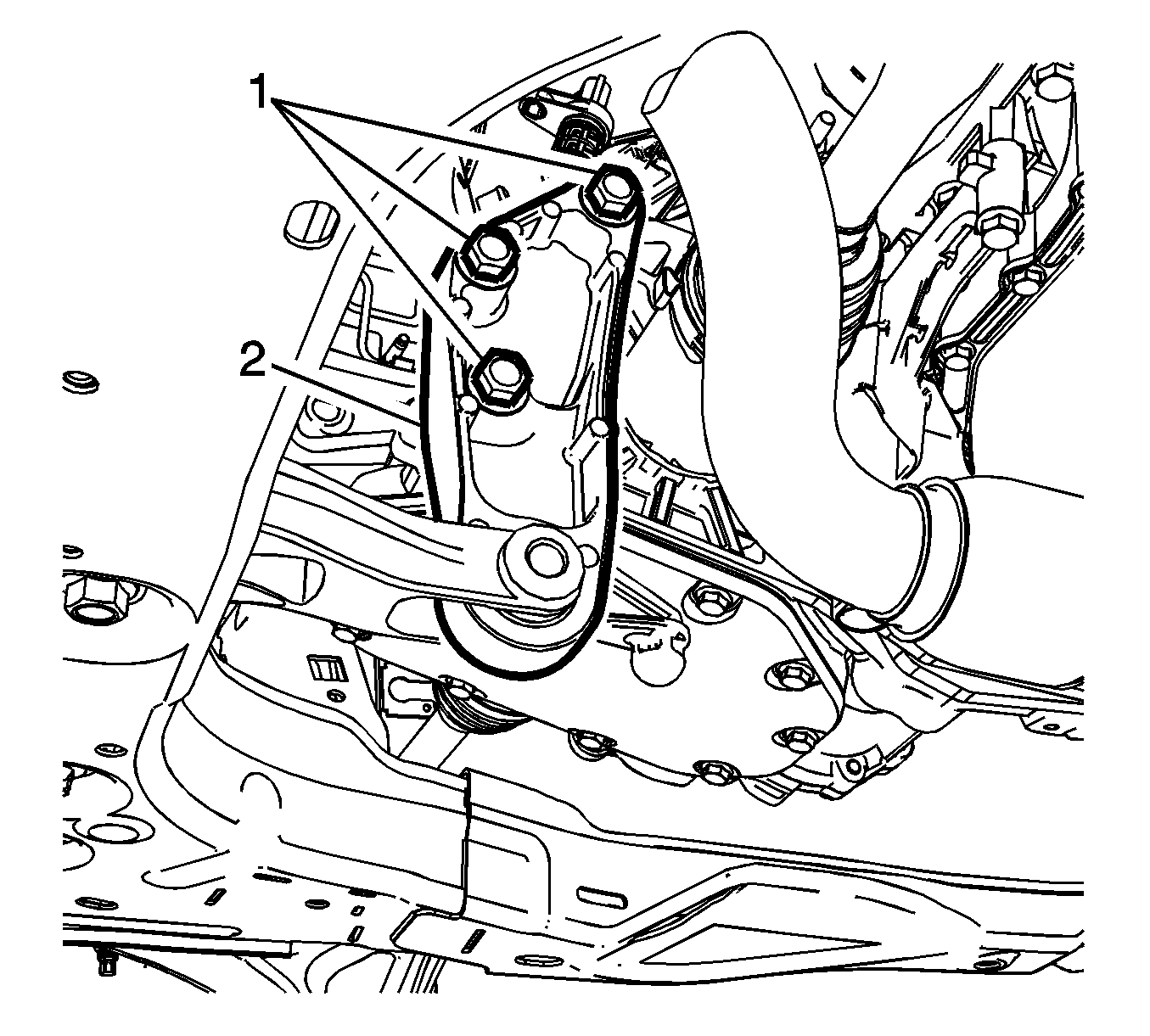

    5. Fig 2: Transmission Rear Mount Bracket & Bolts
    GM2512927Courtesy of GENERAL MOTORS COMPANY
  5. Remove and DISCARD the transmission mount bracket bolts (1).
  6. Remove the transmission rear mount bracket (2).
