Installation Procedure

WARNING: This page is about a different variant/trim than selected.

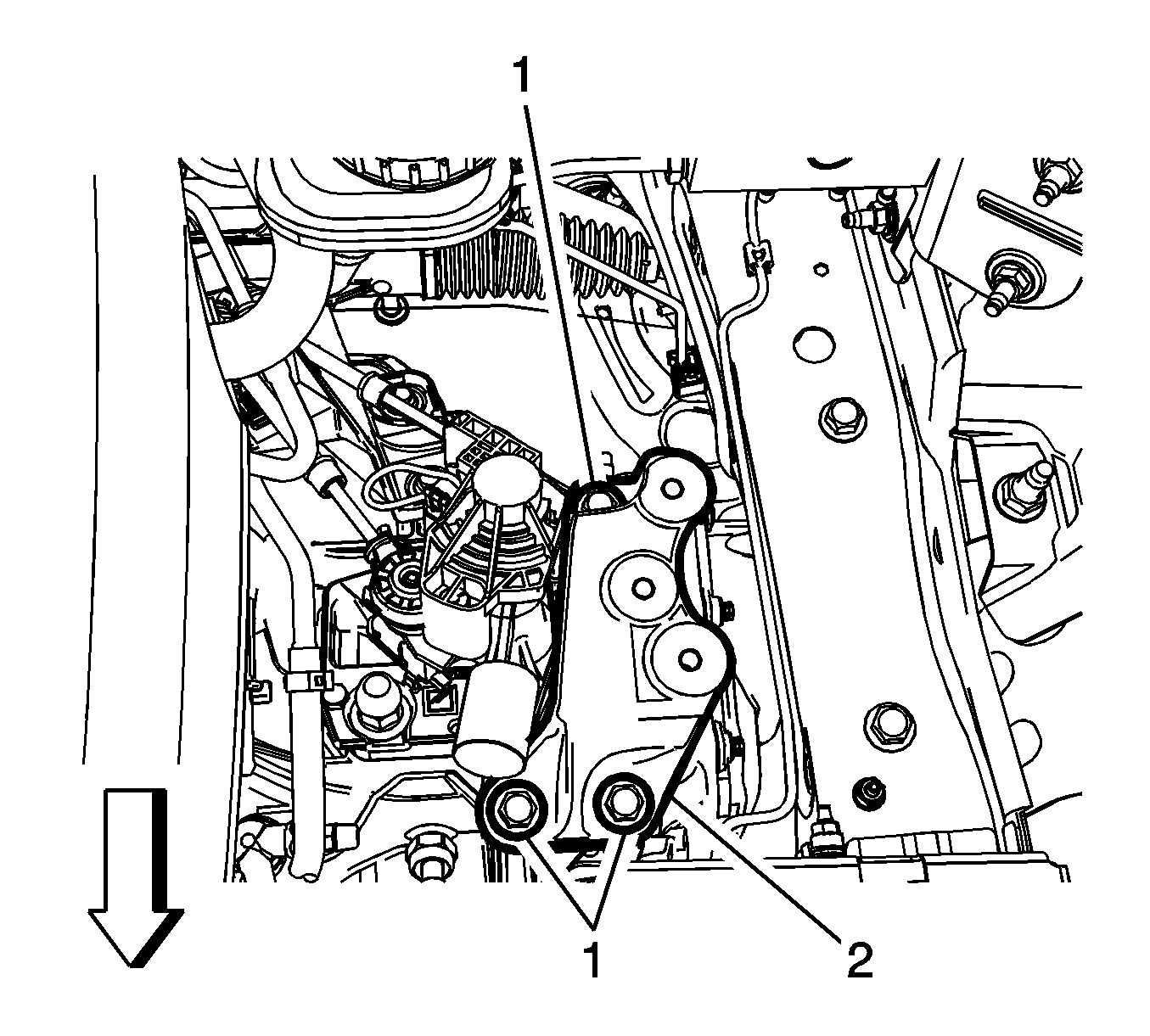

Fig 1: Transmission Mount Bracket & Bolts - Left Side

GM2512906

Courtesy of GENERAL MOTORS COMPANY

Install the left transmission mount bracket (2) to the transmission.

CAUTION:

Refer to Fastener Caution .

Install the left transmission mount bracket to transmission bolts (1) and tighten to 62 N.m (46 lb ft).
Install the left transmission mount. Refer to Transmission Mount Replacement - Left Side .
