Installation Procedure

WARNING: This page is about a different variant/trim than selected.

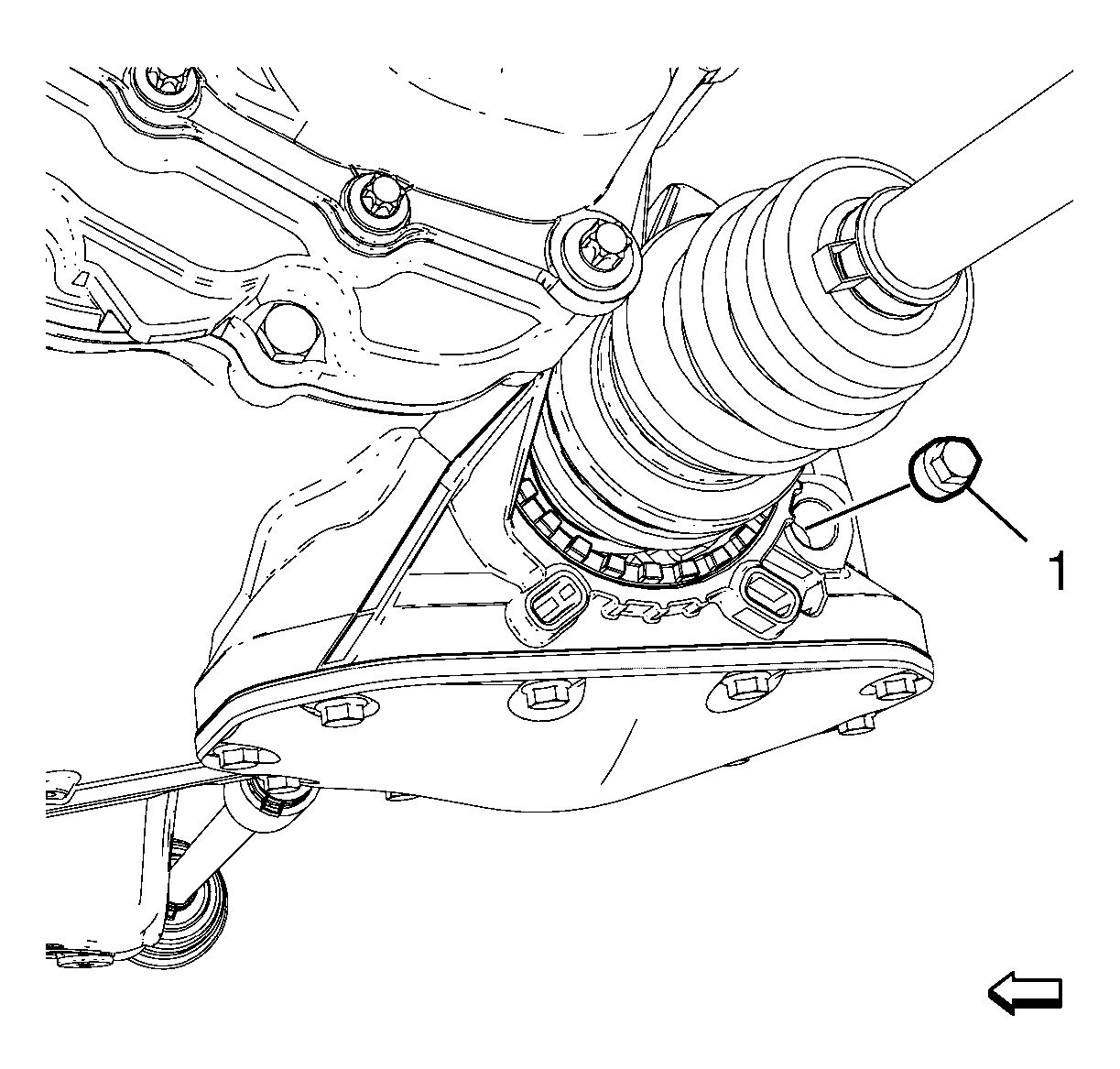

    Fig 1: Transmission Case Plug
    GM2191523Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install a NEW case plug (1) and tighten to 4Y (35 lb in) plus 45-135 degrees.
  2. Install the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement
  3. Lower the vehicle.
