Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Install the NEW clutch and differential housing cover gasket.

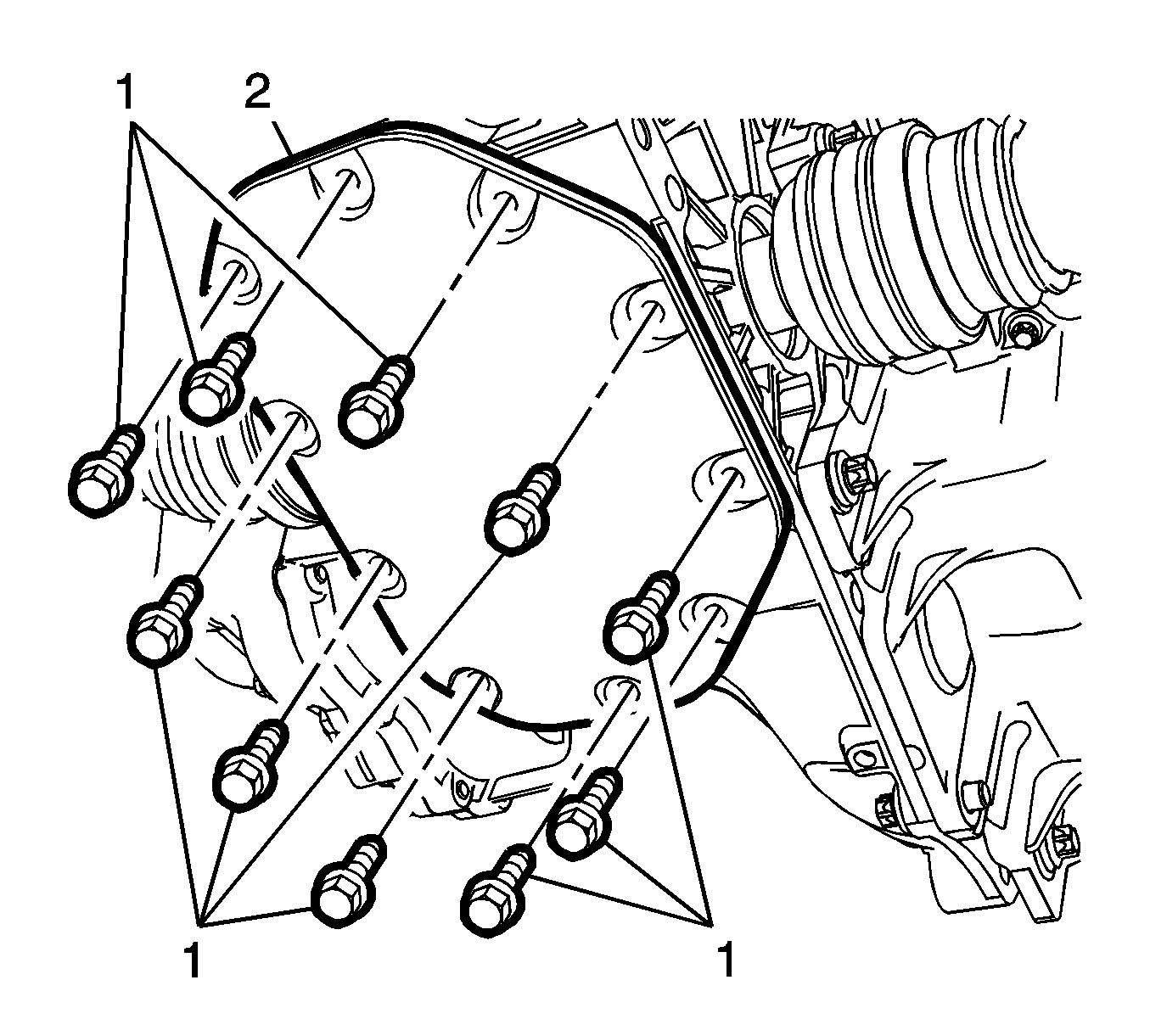

- Install the clutch and differential housing cover (2).
- Install the clutch and differential housing cover bolts (1) and tighten to 18 N.m (13 lb ft).
- Remove and DISCARD the transmission case plug (1).
- Add transmission fluid until it seeps out of plug hole.
- Install the NEW transmission case plug (1) and tighten to 4 N.m (35 lb in) plus 45-135 degrees.
- Install the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
WARNING:
Use care when working around exhaust heat shields. The heat shields may have sharp edges and can cause personal injury if contact is made. Always install a temporary cover to the heat shield to reduce the risk of injury.
