Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to Battery Tray Replacement .
    2. Fig 1: Selector Level Cable Components
    GM2512882Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the shift cable and selector cable ends (1) from the transmission shift lever and selector levers.
  3. Pull the cable retainers (2) to release the shift lever and selector lever cable from the shift lever and selector lever cable bracket.
  4. Disconnect the shift lever and selector lever cable (3) from the shift lever and selector lever cable bracket.

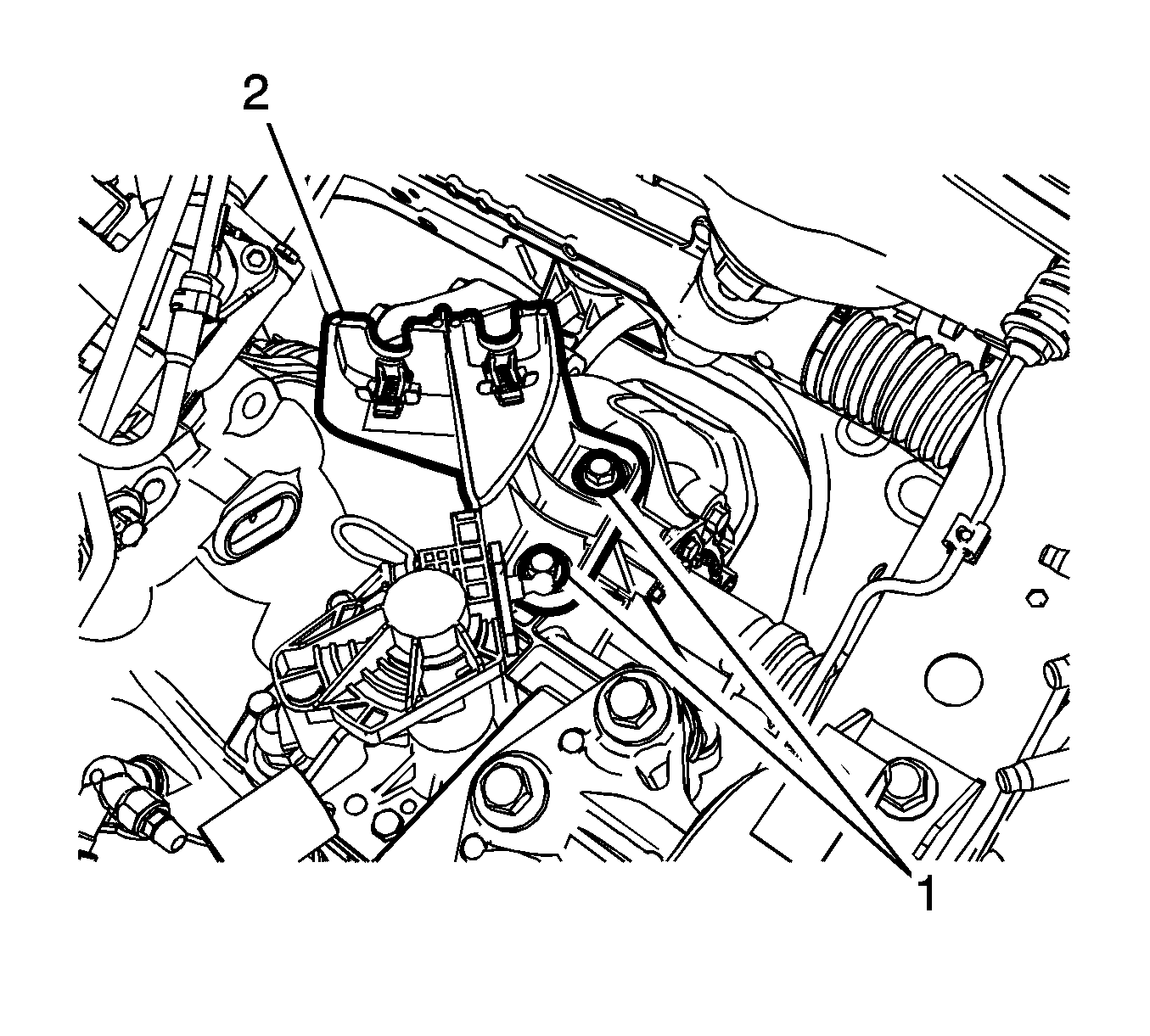

    5. Fig 2: Selector & Shift Lever Cable Bracket
    GM2512931Courtesy of GENERAL MOTORS COMPANY
  5. Remove the two shift lever and selector lever cable bracket fasteners (1).
  6. Remove the shift lever and selector lever cable bracket (2) from the transmission.
