Gear Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

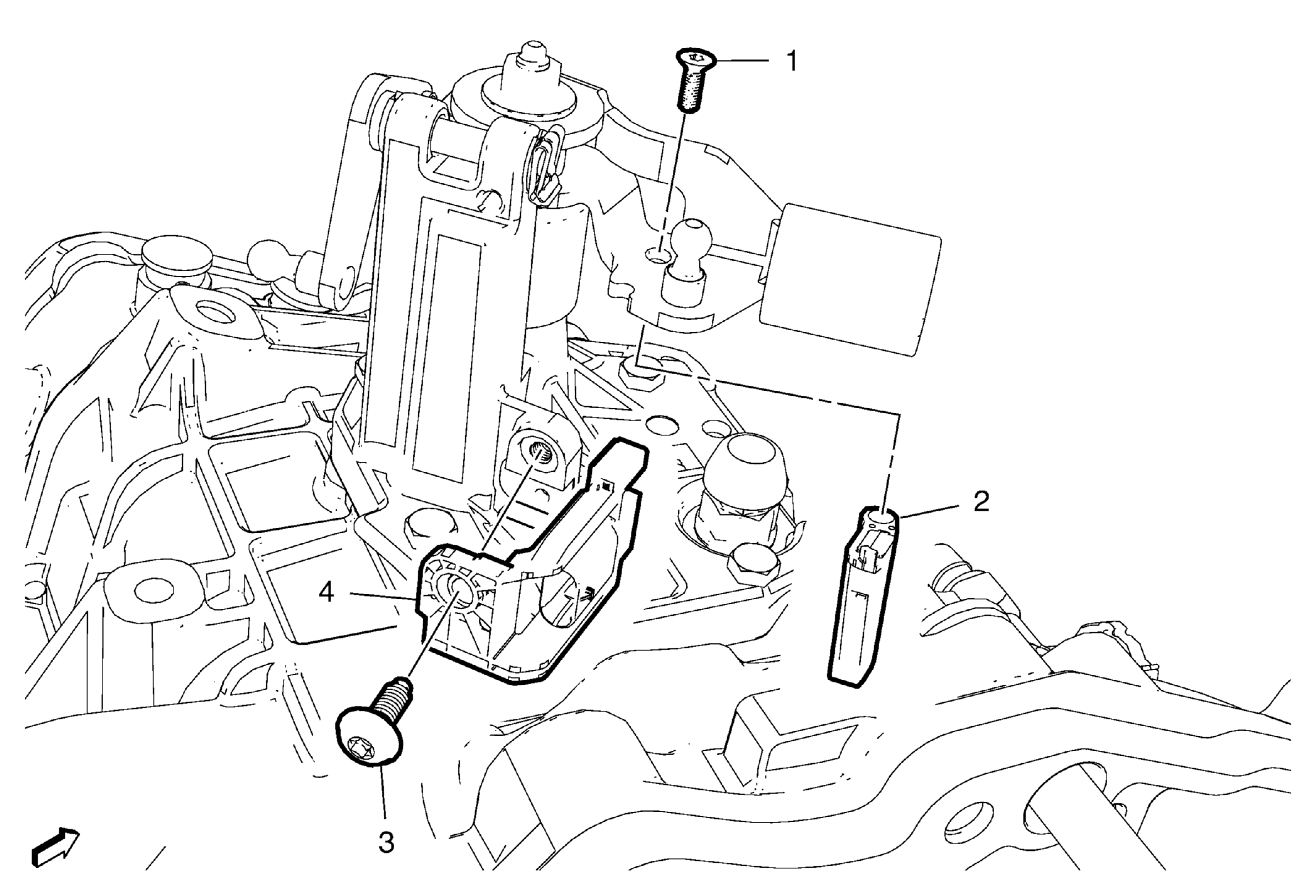

Fig 1: Gear Position Sensor & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Unclip the engine control module (ECM) and bracket from the battery tray.
1	Gear Position Sensor Magnet Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb ft)
2	Gear Position Sensor Magnet
3	Gear Position Sensor Bolt Tighten 8 N.m (71 lb ft)
4	Gear Position Sensor Procedure Disconnect electrical connector After installation is complete, learn neutral gear sensor. Refer to Control Module References .
