Installation Procedure

WARNING: This page is about a different variant/trim than selected.

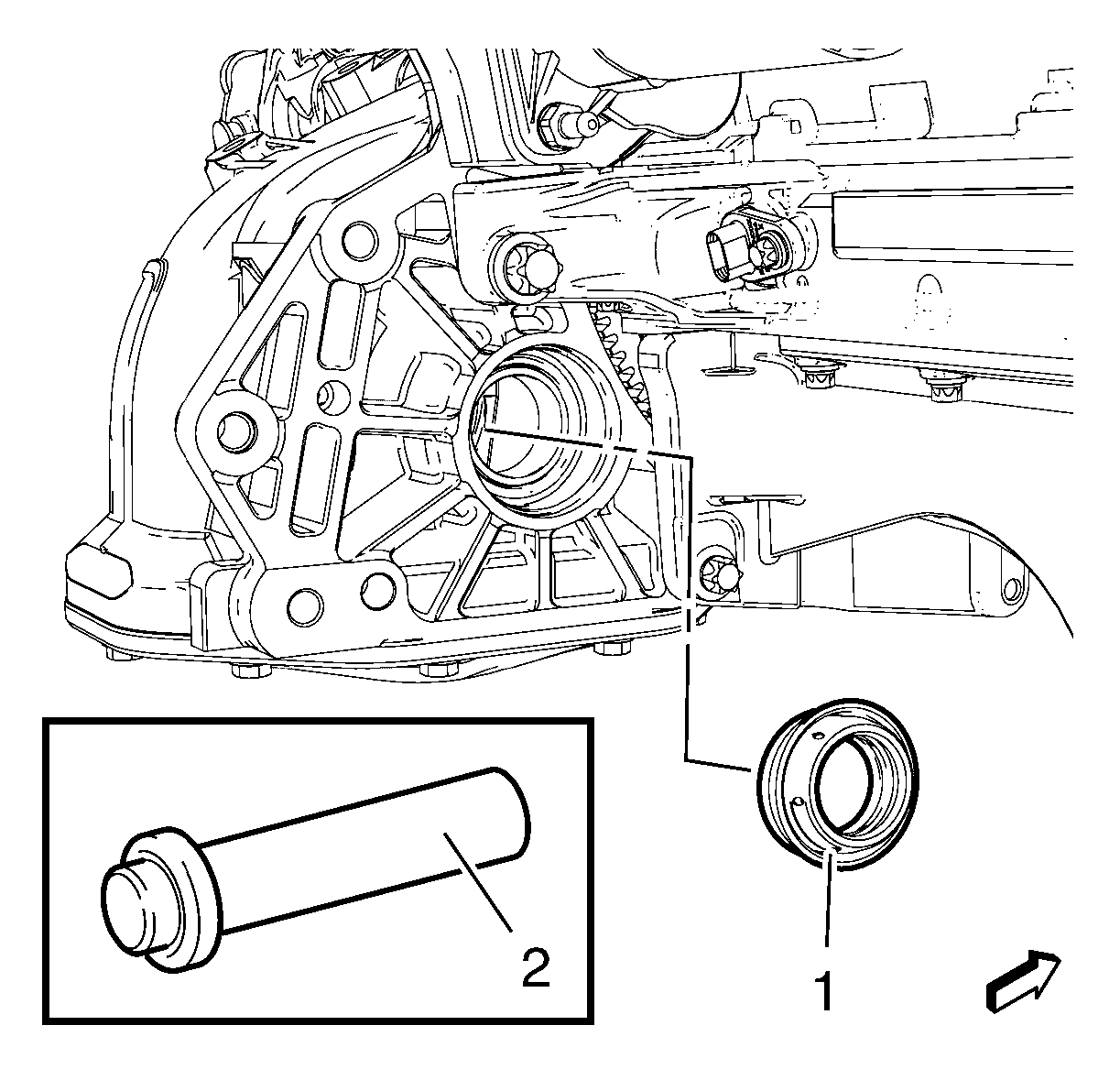

    Fig 1: Right Front Wheel Drive Shaft Oil Seal & Installation Tools
    GM2191374Courtesy of GENERAL MOTORS COMPANY
  1. Coat the NEW right front wheel drive shaft oil seal (1) with transmission fluid.
  2. Install the NEW right front wheel drive shaft oil seal (1) using the DT-446  drift and hammer (2).
  3. Install the wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
  4. Install the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
  5. Lower the vehicle.
