Installation Procedure

WARNING: This page is about a different variant/trim than selected.

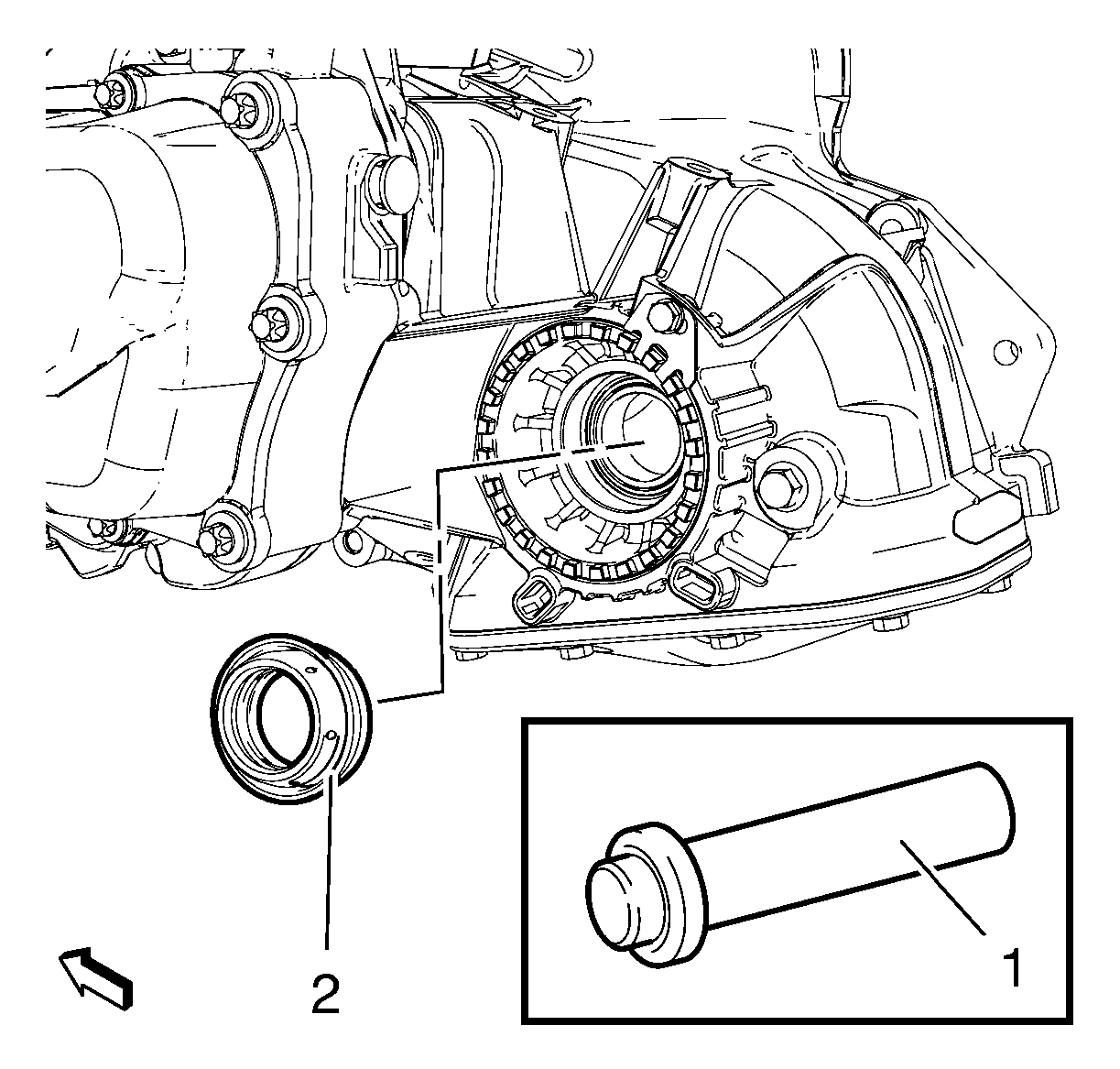

    Fig 1: Left Front Wheel Drive Shaft Oil Seal & Installation Tools
    GM2191376Courtesy of GENERAL MOTORS COMPANY
  1. Coat the NEW left front wheel drive shaft oil seal (2) with transmission fluid.
  2. Install the NEW left front wheel drive shaft oil seal (2) using the DT-446  drift and hammer (1).
  3. Install the left wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
  4. Install the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
  5. Lower the vehicle.
