Installation Procedure

WARNING: This page is about a different variant/trim than selected.

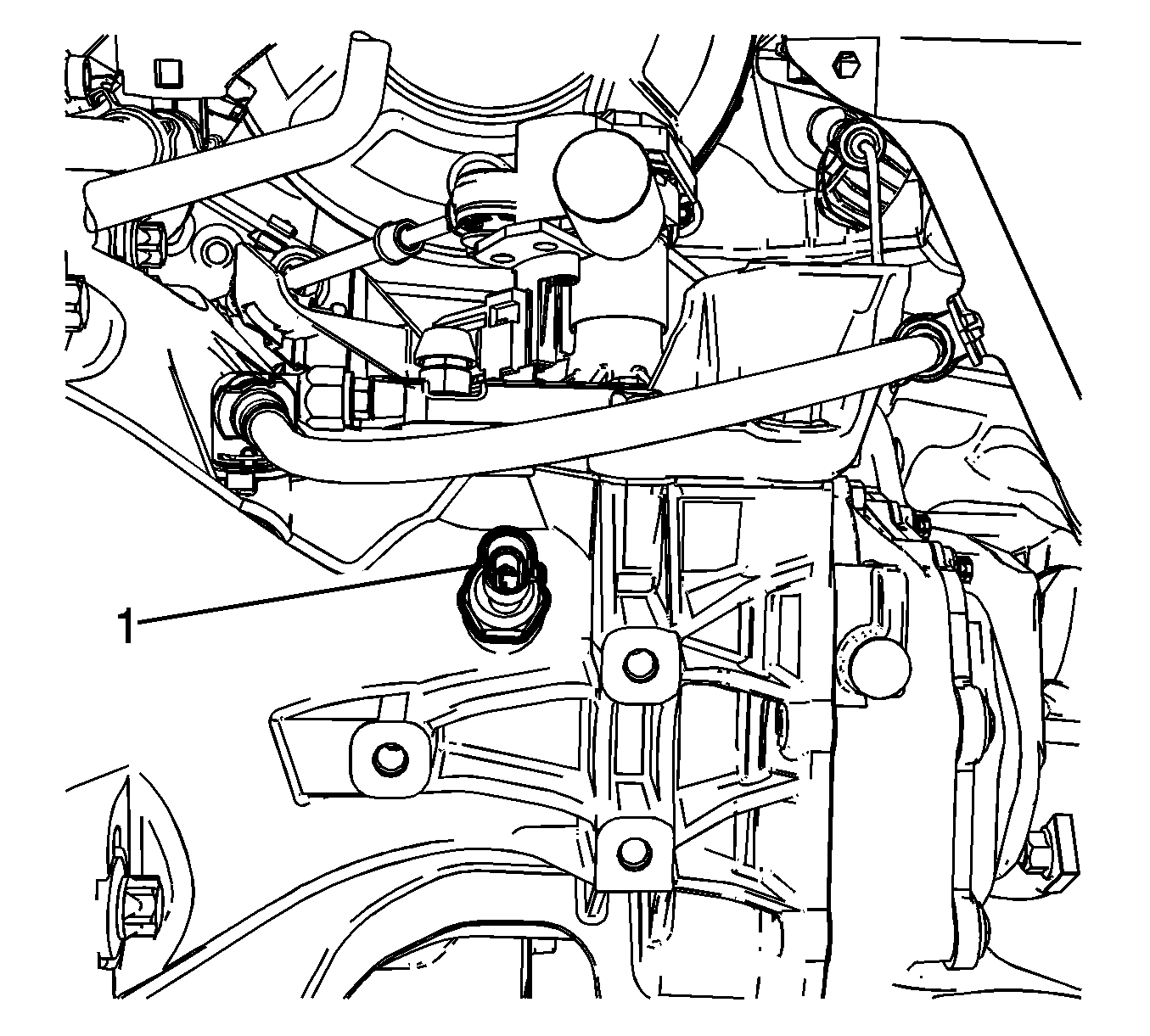

Fig 1: Backup Lamp Switch

GM2512913

Courtesy of GENERAL MOTORS COMPANY

Install a NEW backup lamp switch washer on the backup lamp switch (1).

CAUTION:

Refer to Component Fastener Tightening Caution .

Install the backup lamp switch (1) into the transmission case, and tighten to 20 N.m (15 lb ft).
Connect the electrical connector to the backup lamp switch (1).
