Transmission Disassemble

WARNING: This page is about a different variant/trim than selected.

Special Tools

For equivalent regional tools, refer to Special Tools .

    Fig 1: Transmission Holding Fixture & Universal Adapter
    GM2262246Courtesy of GENERAL MOTORS COMPANY
  1. Attach R-0007758  holding fixture (2) to the transmission.
  2. Attach R-0007758  holding fixture (2) with transmission to the 3-9506289  Universal Adapter (1).
  3. Fig 2: Clutch Release Bearing
    GM2276933Courtesy of GENERAL MOTORS COMPANY
  4. Remove the clutch release bearing (1).
  5. Fig 3: Clutch Fork Shaft & Retaining Bolt
    GM2262247Courtesy of GENERAL MOTORS COMPANY
  6. Remove the clutch fork shaft retaining bolt (2).
  7. Remove the clutch fork shaft (1).
  8. Fig 4: Control Lever Housing, Gasket & Bolts
    GM2262248Courtesy of GENERAL MOTORS COMPANY
  9. Remove the transmission control lever housing bolts (1).
  10. Remove the control lever housing (2) and gasket (3).
  11. Fig 5: Transmission Cover, Gasket & Bolts
    GM2262250Courtesy of GENERAL MOTORS COMPANY
  12. Remove the transmission cover bolts (3).
  13. Remove the transmission cover (2) and gasket (1).
  14. Fig 6: Back Up Lamp Switch
    GM2262253Courtesy of GENERAL MOTORS COMPANY
  15. Remove the back up lamp switch (1).
  16. Fig 7: Transmission Case Components
    GM2262252Courtesy of GENERAL MOTORS COMPANY
  17. Remove the transmission case bolts (3).
  18. Remove the transmission case (2) and gasket (1).
  19. Remove the case magnet (4), may stay with case.
  20. Remove the reverse idler gear washer (5), may stay on the reverse idler gear shaft.

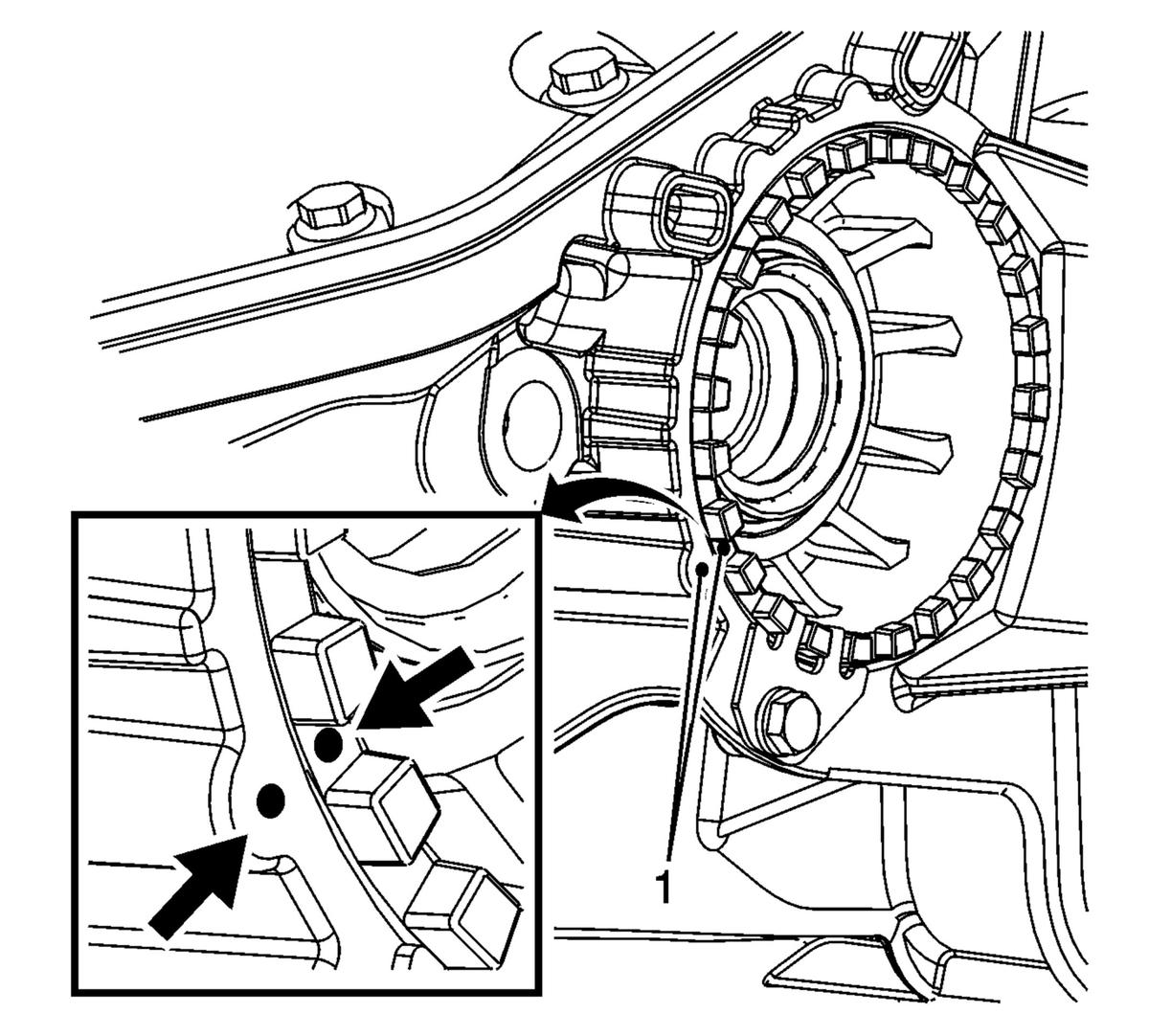

  21. Fig 8: Differential Bearing Adjuster & Case
    GM2262255Courtesy of GENERAL MOTORS COMPANY
  22. Mark the differential bearing adjuster and case (1) before removal.
  23. Fig 9: Differential Bearing Adjuster Lock & Bolt
    GM2262256Courtesy of GENERAL MOTORS COMPANY
  24. Remove the differential bearing adjuster lock bolt (1).
  25. Remove the differential bearing adjuster lock (2).
  26. Fig 10: Front Differential Bearing Adjuster & O-Ring Seal
    GM2262258Courtesy of GENERAL MOTORS COMPANY
  27. Using S-9407198  differential bearing race wrench remove the front differential bearing adjuster (1).
  28. Remove the front differential bearing retainer O-ring seal (2).
  29. Fig 11: Front Differential Carrier Cover, Bolts & Gasket
    GM2262259Courtesy of GENERAL MOTORS COMPANY
  30. Remove the front differential carrier cover bolts (1).
  31. Remove the differential carrier cover (2) and gasket (3).
  32. Fig 12: Front Differential Carrier
    GM2262260Courtesy of GENERAL MOTORS COMPANY
  33. Remove the front differential carrier (1).
