5th Gear Synchronizer

WARNING: This page is about a different variant/trim than selected.

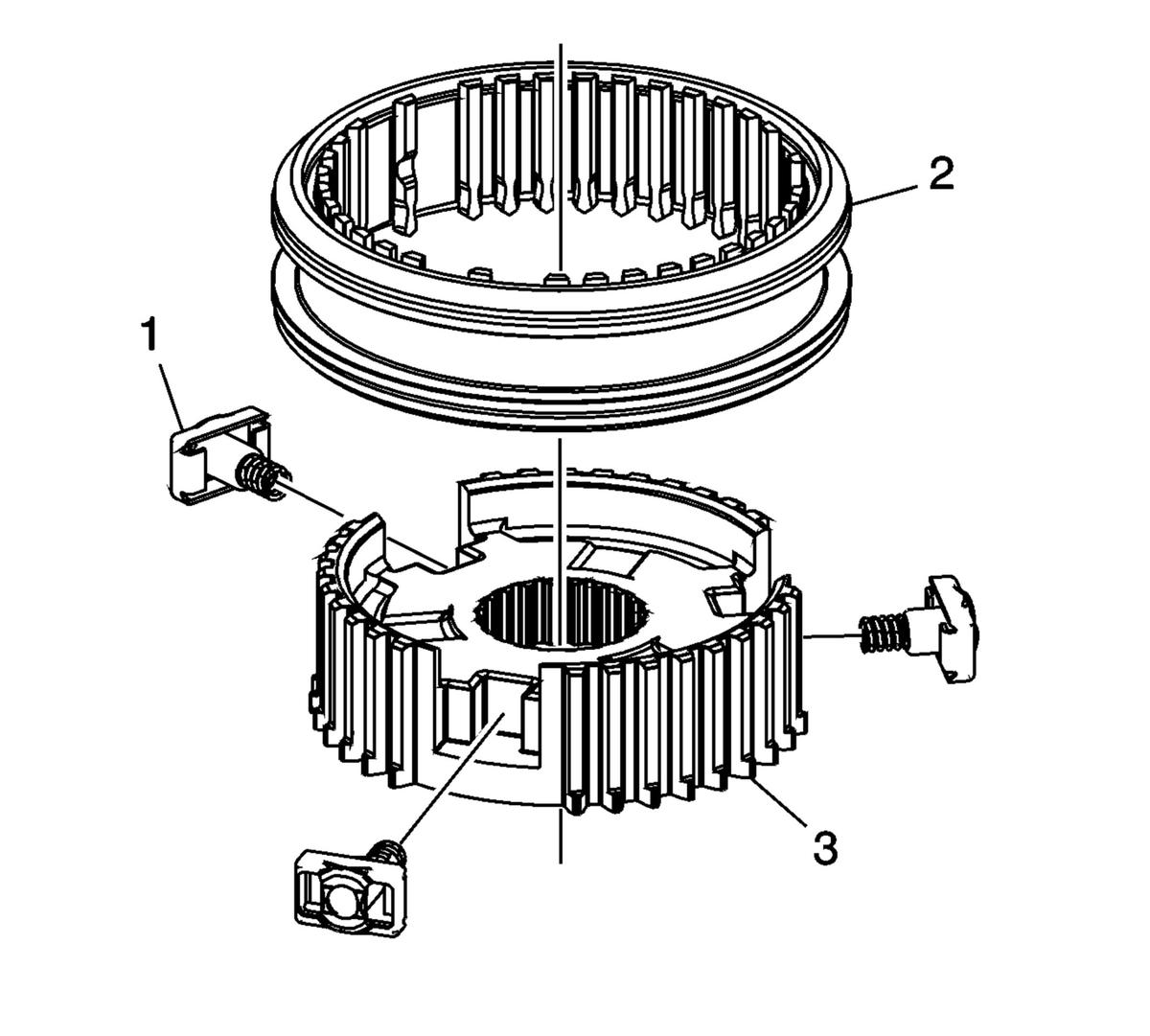

    Fig 1: 5th Gear Synchronizer Components
    GM2262607Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 5th gear synchronizer hub (3) from the 5th gear synchronizer sleeve (2).
  2. Remove the synchronizer inserts (1) from the 5th gear synchronizer hub (3).
