3rd/4th Gear Synchronizer

WARNING: This page is about a different variant/trim than selected.

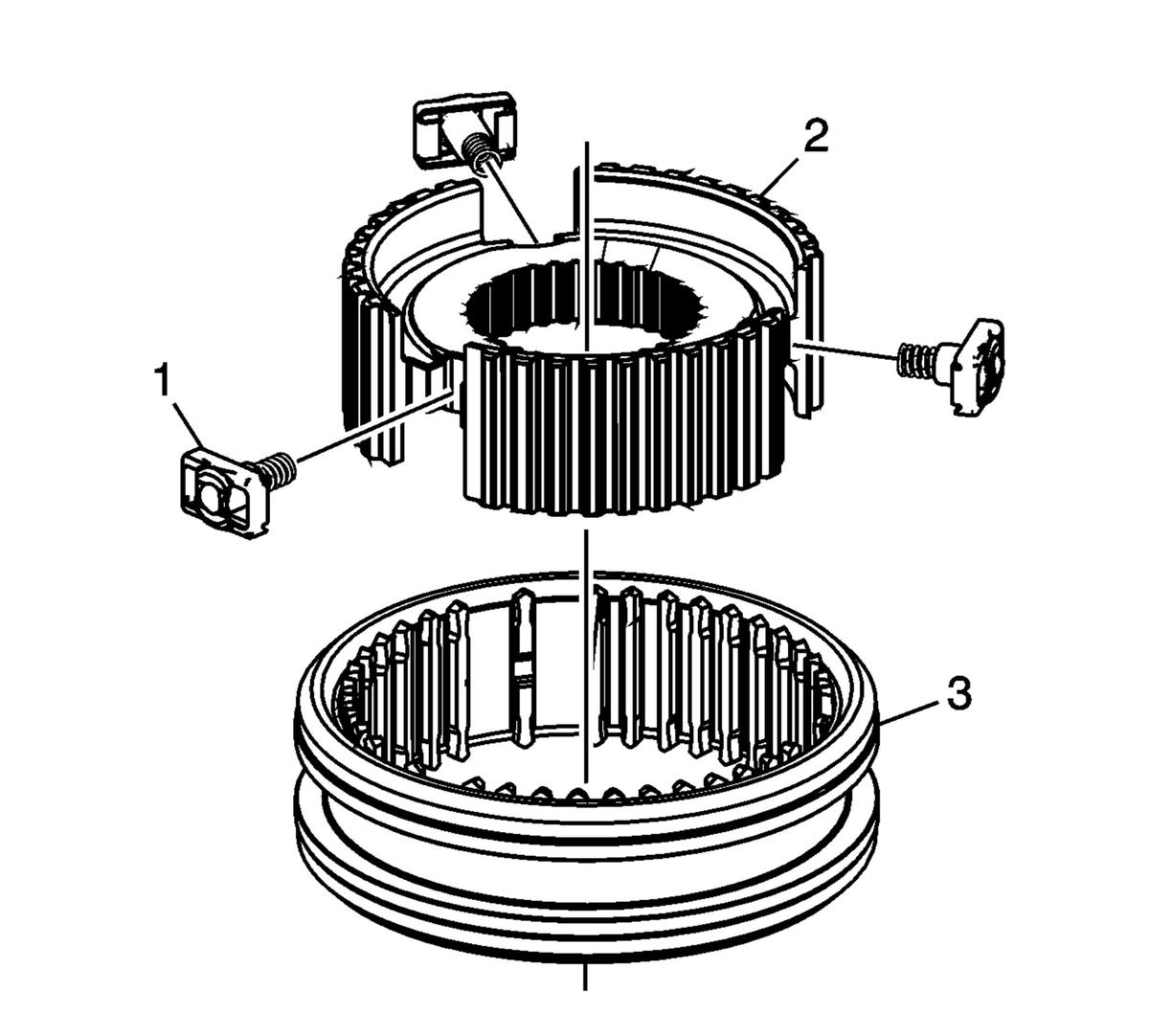

    Fig 1: 3rd/4th Gear Synchronizer Components
    GM2262606Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 3rd/4th gear synchronizer hub (2) from the 3rd/4th gear synchronizer sleeve (3).
  2. Remove the synchronizer inserts (1) from the 3rd/4th gear synchronizer hub (2).
