1st/2nd Gear Synchronizer

WARNING: This page is about a different variant/trim than selected.

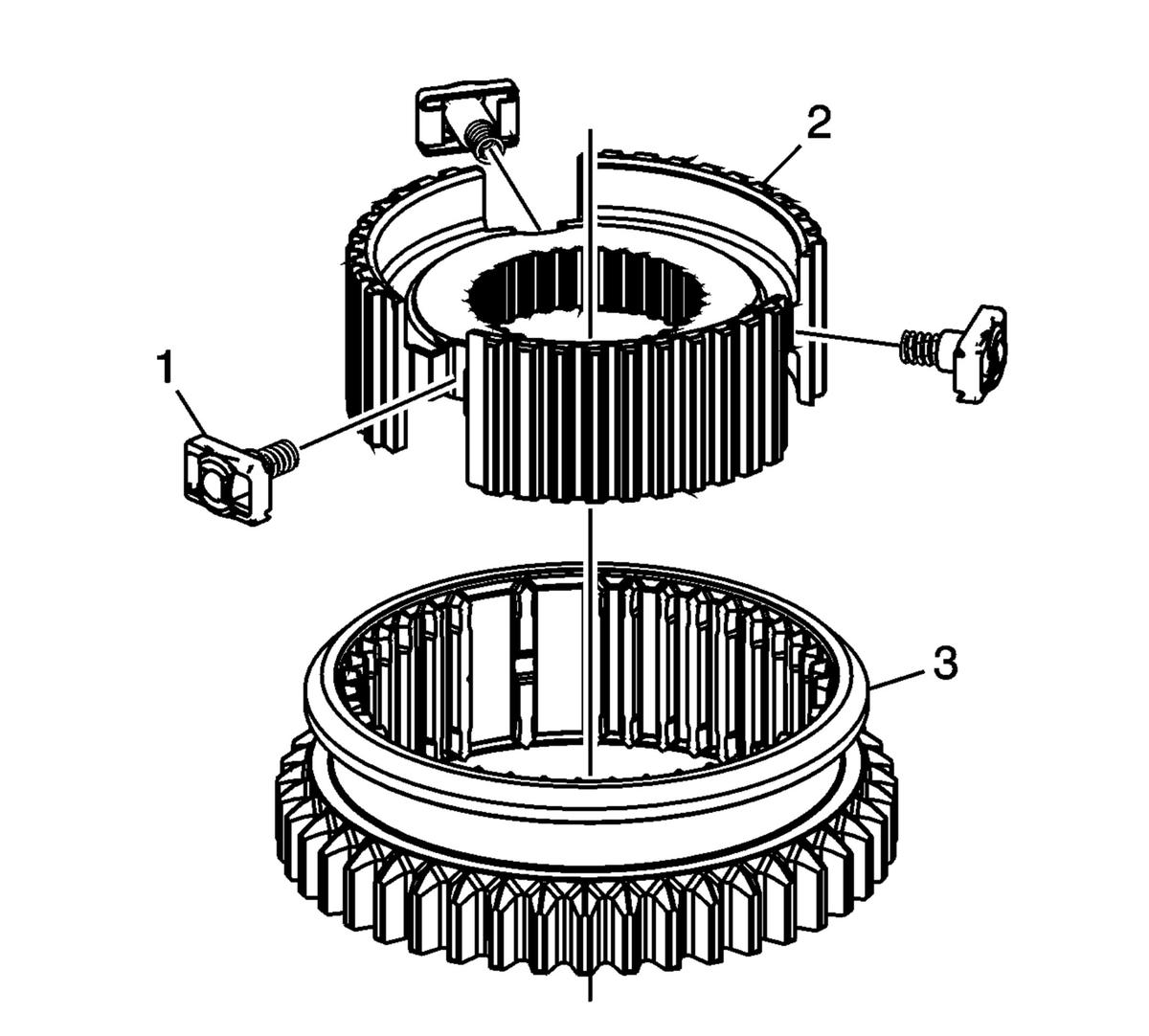

Fig 1: 1st/2nd Gear Synchronizer Components

Courtesy of GENERAL MOTORS COMPANY

NOTE:

When servicing the synchronizers, retain them in the same order that they are removed. Keep the synchronizer components together and mark them to identify correct location.

Remove the 1st/2nd gear synchronizer hub (2) from the 1st/2nd gear synchronizer sleeve (3).
Remove the synchronizer inserts (1) from the 1st/2nd gear synchronizer hub (2).
