Shift Fork Cleaning and Inspection (Gen 2)
WARNING: This page is about a different variant/trim than selected.

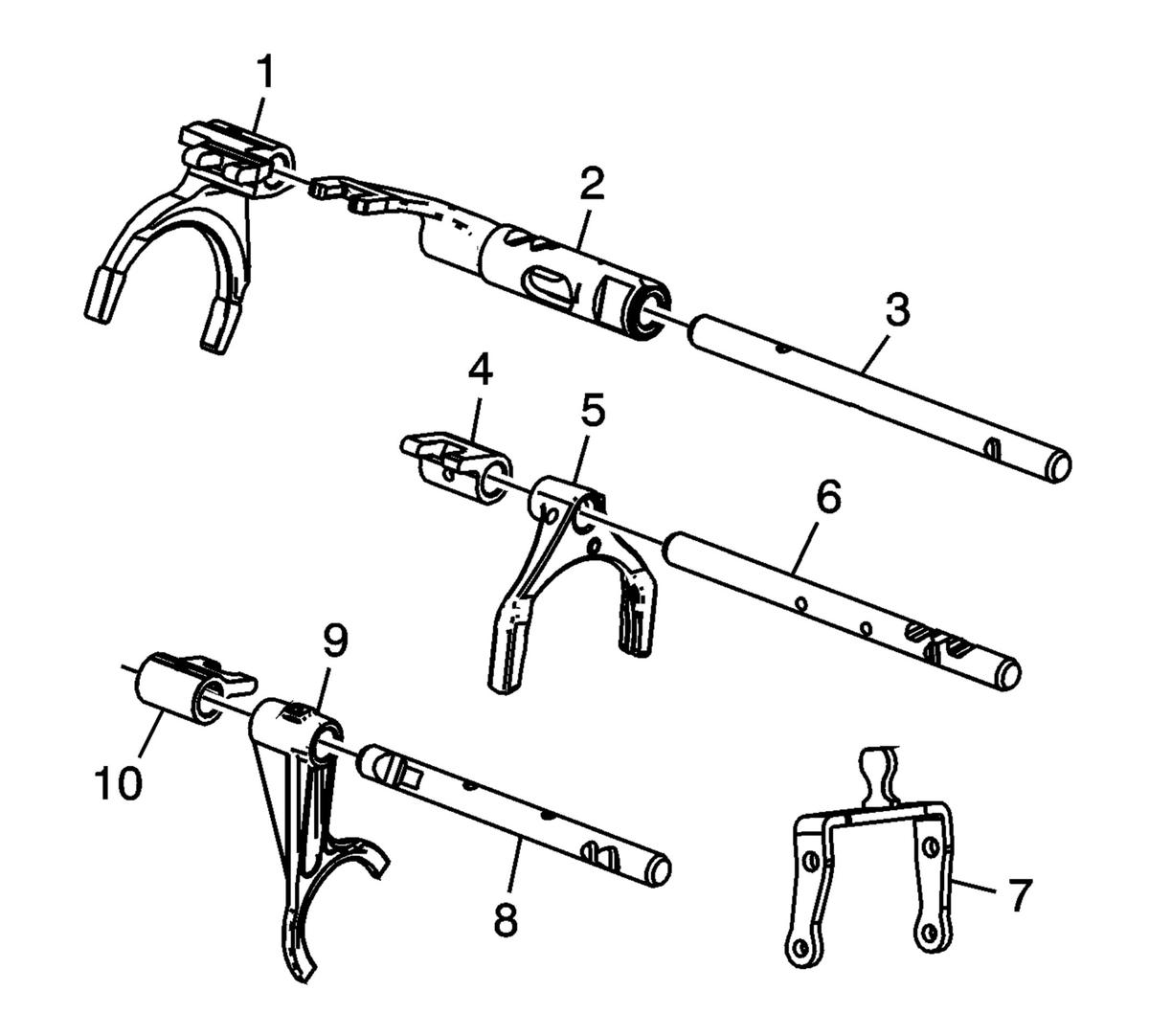

- Clean the following components with a suitable solvent. Air dry all the parts.
- 3rd and 4th shift fork assembly (1)
- 5th shift blocking guide (2)
- 3rd and 4th shift shaft (3)
- 1st and 2nd shaft block (4)
- 1st and 2nd shift fork assembly (5)
- 1st and 2nd shift shaft (6)
- 5th shift fork assembly (7)
- Reverse shift shaft (8)
- Reverse shift fork assembly (9)
- Reverse fork block (10)

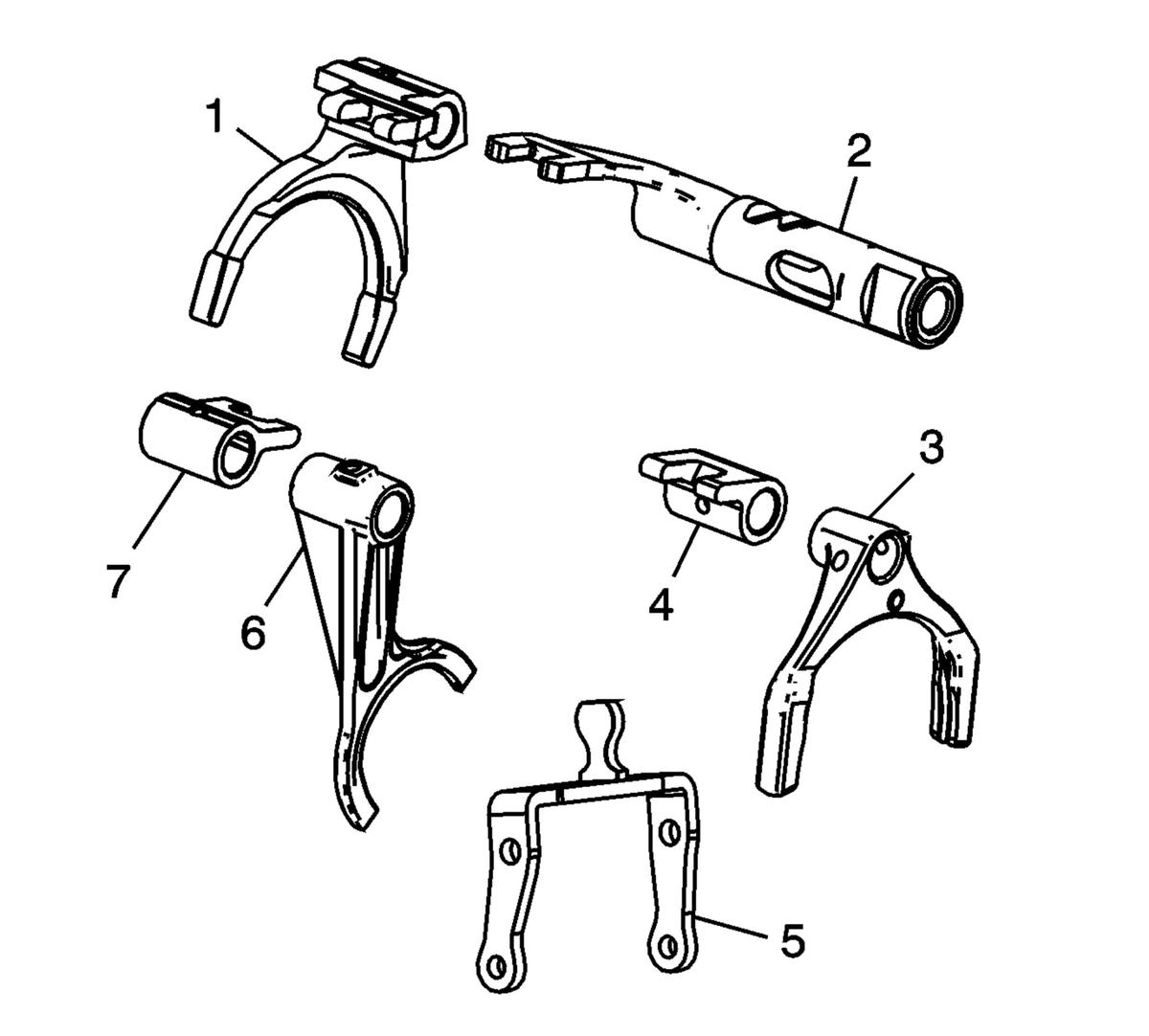

- Inspect the following components for excessive wear, fractures or distortion.
- 3rd and 4th shift fork assembly (1)
- 5th shift blocking guide (2)
- 1st and 2nd shift fork assembly (3)
- 1st and 2nd shaft block (4)
- 5th shift fork assembly (5)
- Reverse shift fork assembly (6)
- Reverse fork block (7)
- Inspect the shift shaft lever bushings for excessive wear.
- Inspect the shift fork nylon inserts (1) for wear.
- Replace parts that are fractured, excessively worn, or distorted.
- Replace an excessively worn or burred shift shaft.
WARNING:
Wear safety glasses to avoid injury when using compressed air or any cleaning solvent. Bodily injury may occur if fumes are inhaled or if skin is exposed to chemicals.
