3rd and 4th Gear Synchronizer Hub and 4th Gear Removal
WARNING: This page is about a different variant/trim than selected.

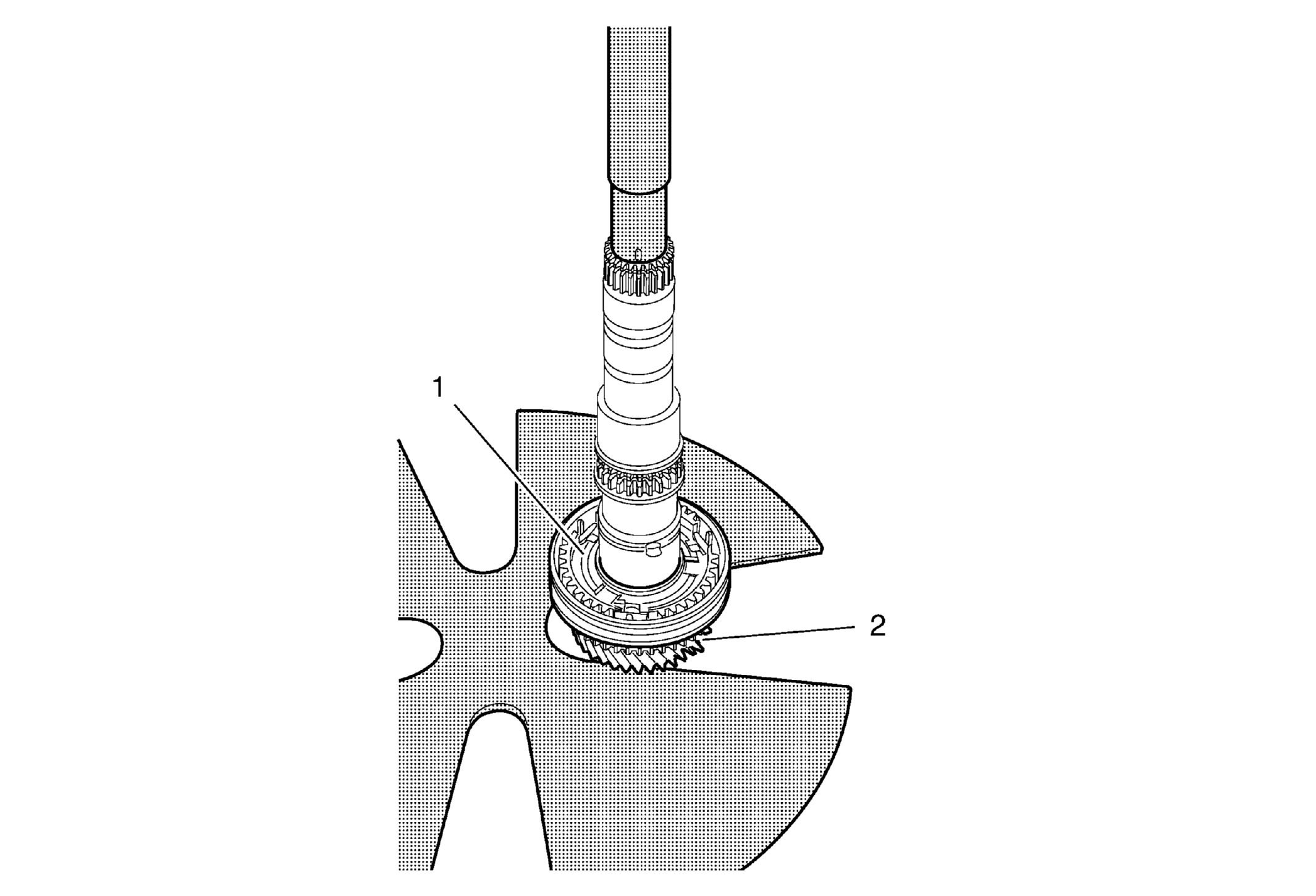

Courtesy of GENERAL MOTORS COMPANY 3rd and 4th Gear Synchronizer Hub and 4th Gear Removal
| Callout |
Component Name |
Preliminary Procedure
A hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. |
| 1 |
3rd and 4th Gear Synchronizer Hub Special Tools
- DT-307-B
Remover Plate
- DT-736
Clutch Arbor
|
| 2 |
4th Gear |
