3rd Gear Removal

WARNING: This page is about a different variant/trim than selected.

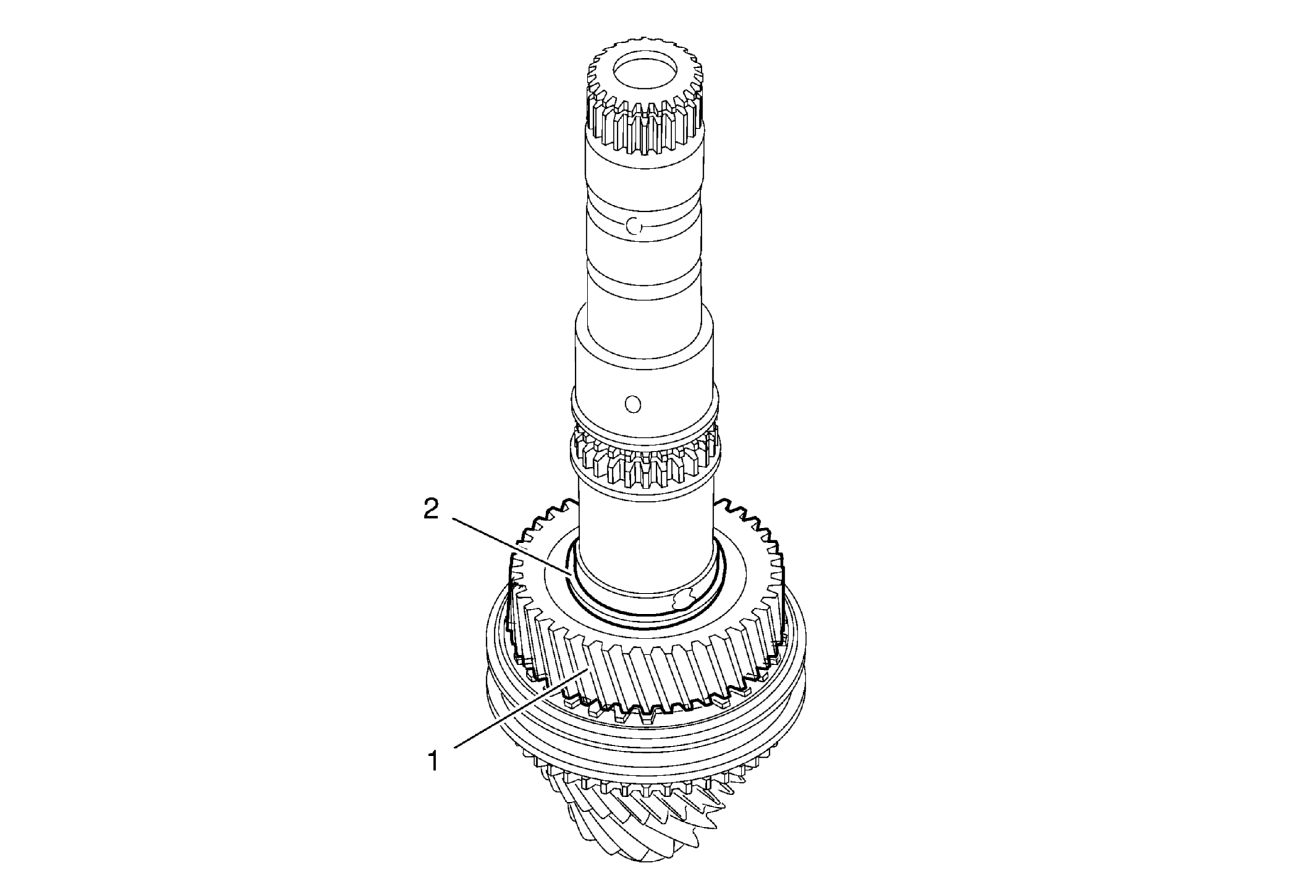

Fig 1: 3rd Gear & Bearing
GM2192608Courtesy of GENERAL MOTORS COMPANY
3rd Gear Removal

Callout Component Name
1 3rd Gear
2 3rd Gear Bearing
