1st and 2nd Gear Synchronizer Hub and 2nd Gear Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY 1st and 2nd Gear Synchronizer Hub and 2nd Gear Removal
| Callout |
Component Name |
Preliminary Procedure
A hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. |

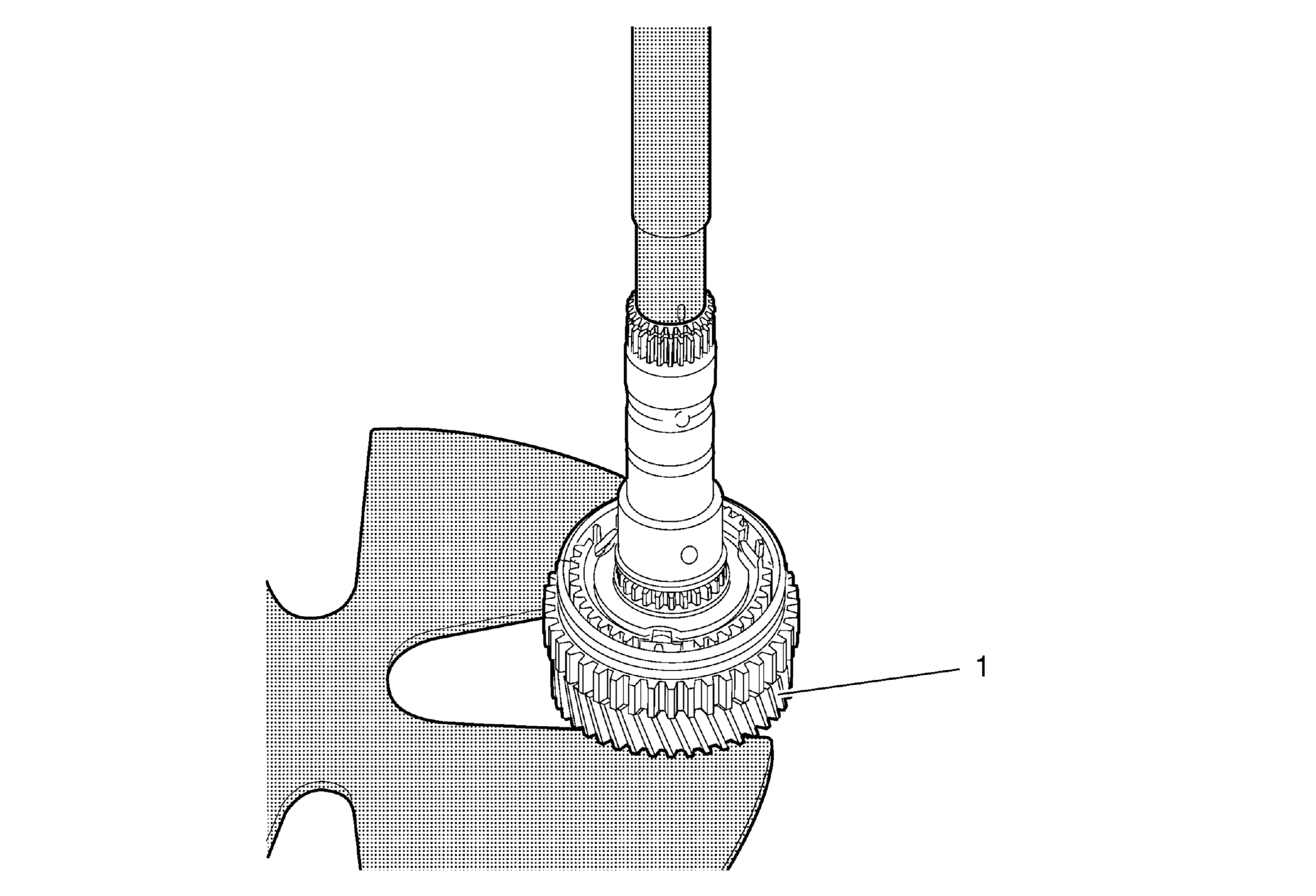

| 1 |
2nd Gear Special Tools
- DT-307-B
Remover Plate
- DT-736
Clutch Arbor
|
