Input Shaft Disassemble
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
NOTE:

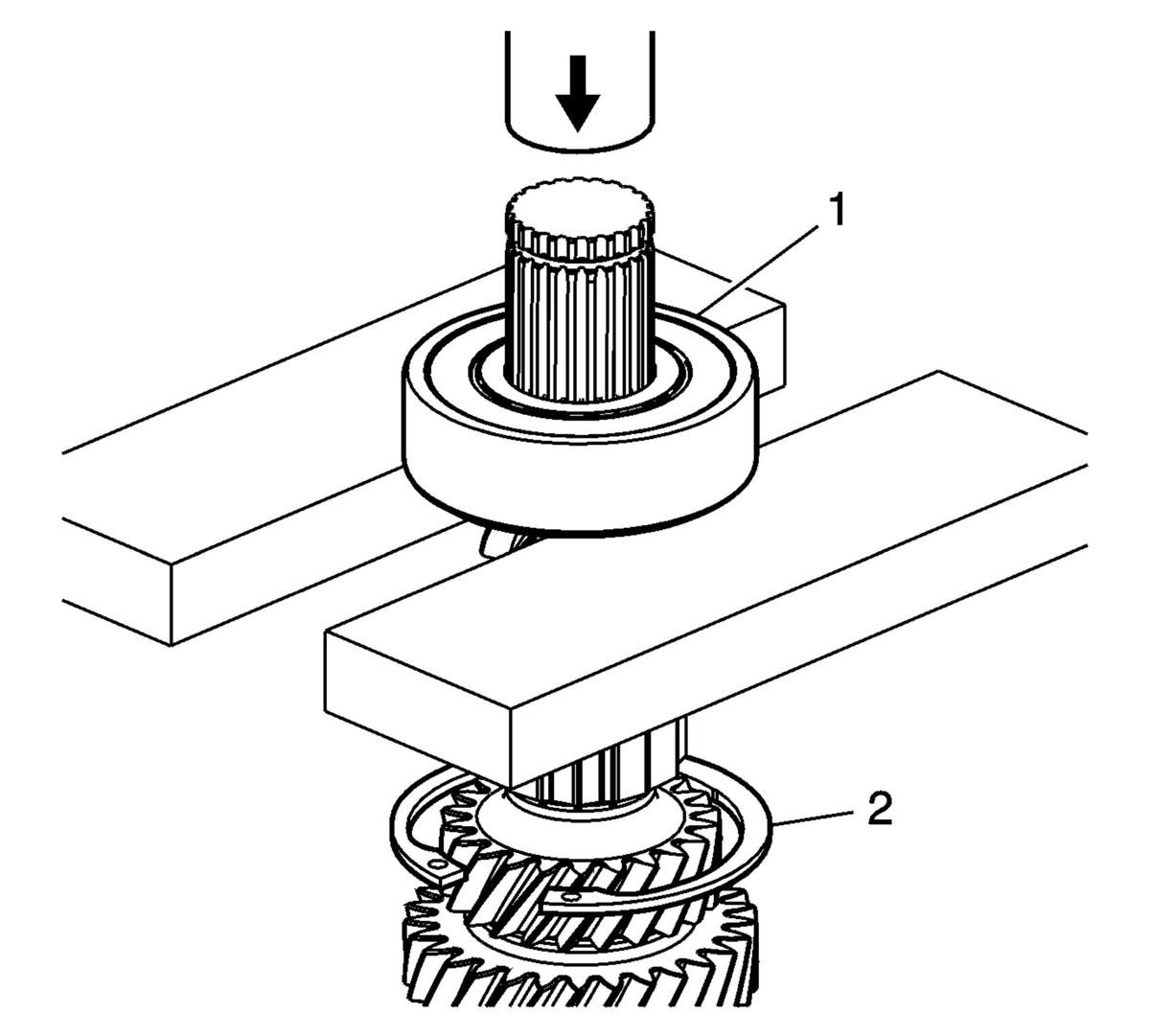

The input shaft rear bearing retaining ring (2) remains loose on the shaft.
- Remove the input shaft rear bearing assembly (1) using a hydraulic press.
- Remove the retaining ring (2).
