Reverse Gears and Shaft
WARNING: This page is about a different variant/trim than selected.

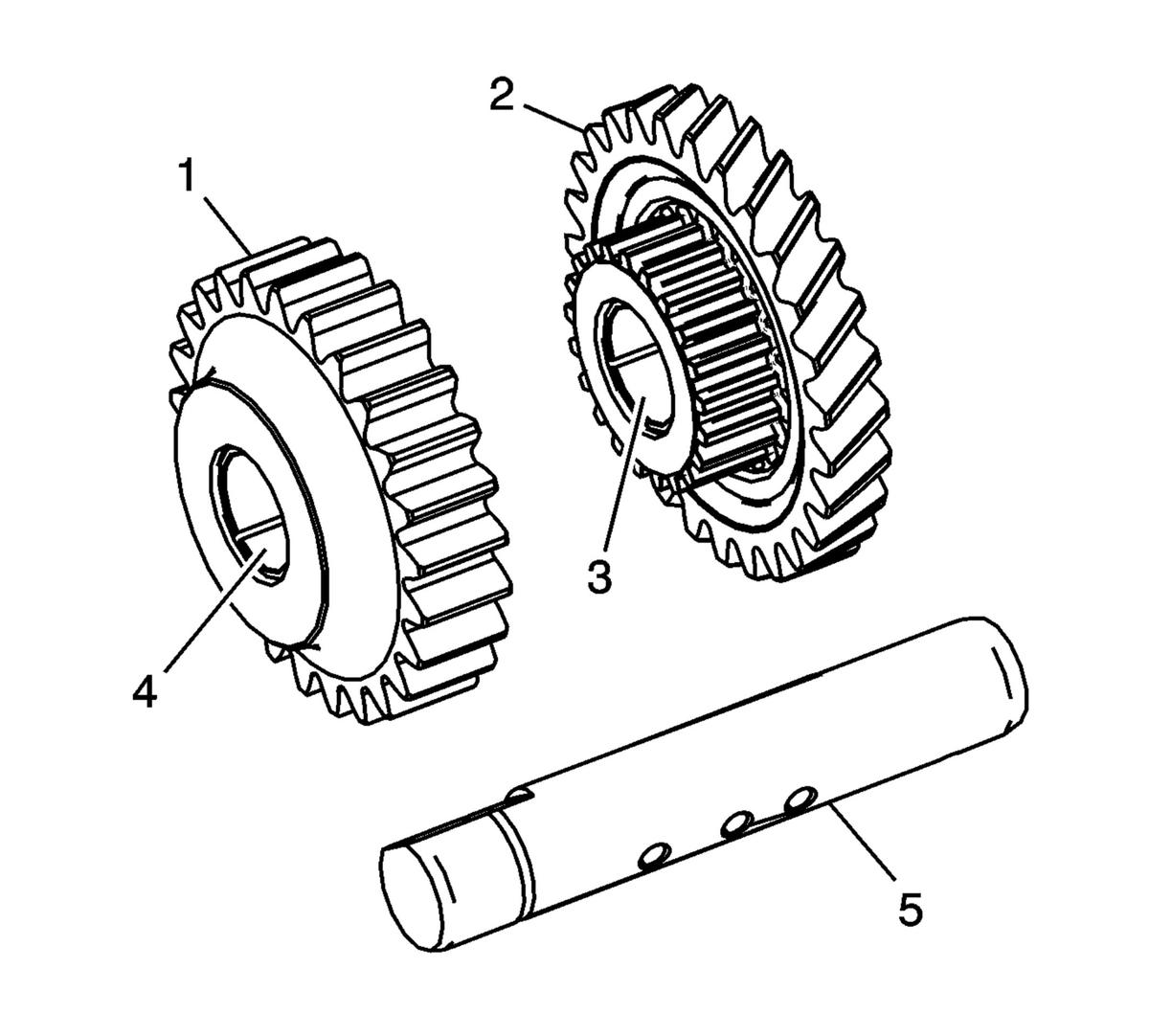

- Clean the reverse spur gear (1), reverse helical gear (2), and shaft (5) in a suitable solvent and air dry all the parts.
- Inspect the reverse spur gear bushings (4) and reverse helical gear bushings (3) for the following conditions:
- Excessive wear
- Scoring
- Pitting
- Replace the reverse gears if the bushings are faulty.
- Inspect the reverse gear shaft for the following conditions:
- Excessive wear
- Scoring
- Pitting
- Replace the reverse gear shaft if it is faulty.
