Reverse Idler Gear and Shaft
WARNING: This page is about a different variant/trim than selected.

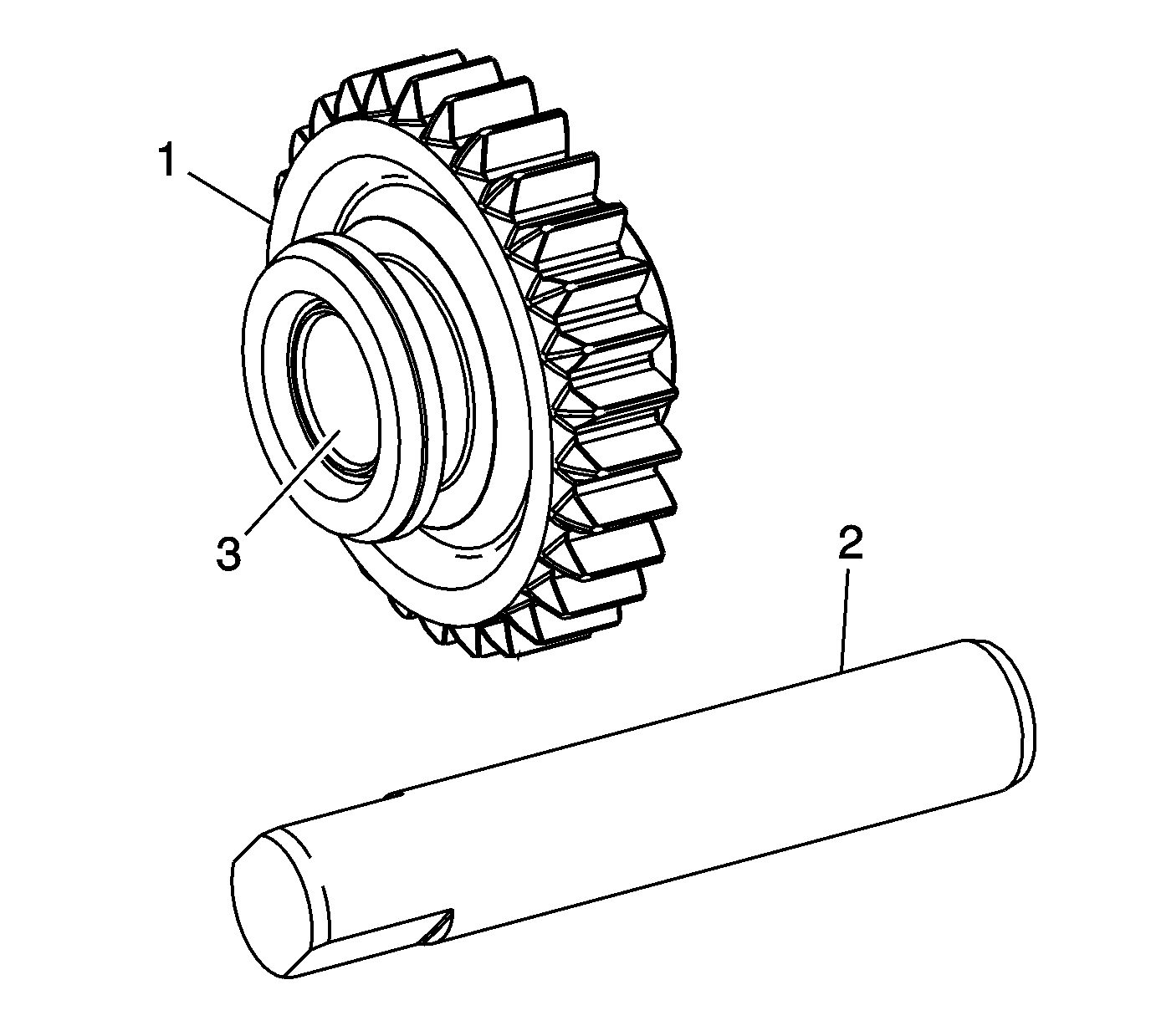

- Clean the reverse idler gear (1) and shaft (2) in a suitable solvent and air dry all the parts.
- Inspect the reverse idler gear bushing (3) for the following conditions:
- Excessive wear
- Scoring
- Pitting
- Replace the reverse idler gear if the bushing is faulty.
- Inspect the reverse idler gear shaft for the following conditions:
- Excessive wear
- Scoring
- Pitting
- Replace the reverse idler gear shaft if it is faulty.
