Input Shaft
WARNING: This page is about a different variant/trim than selected.

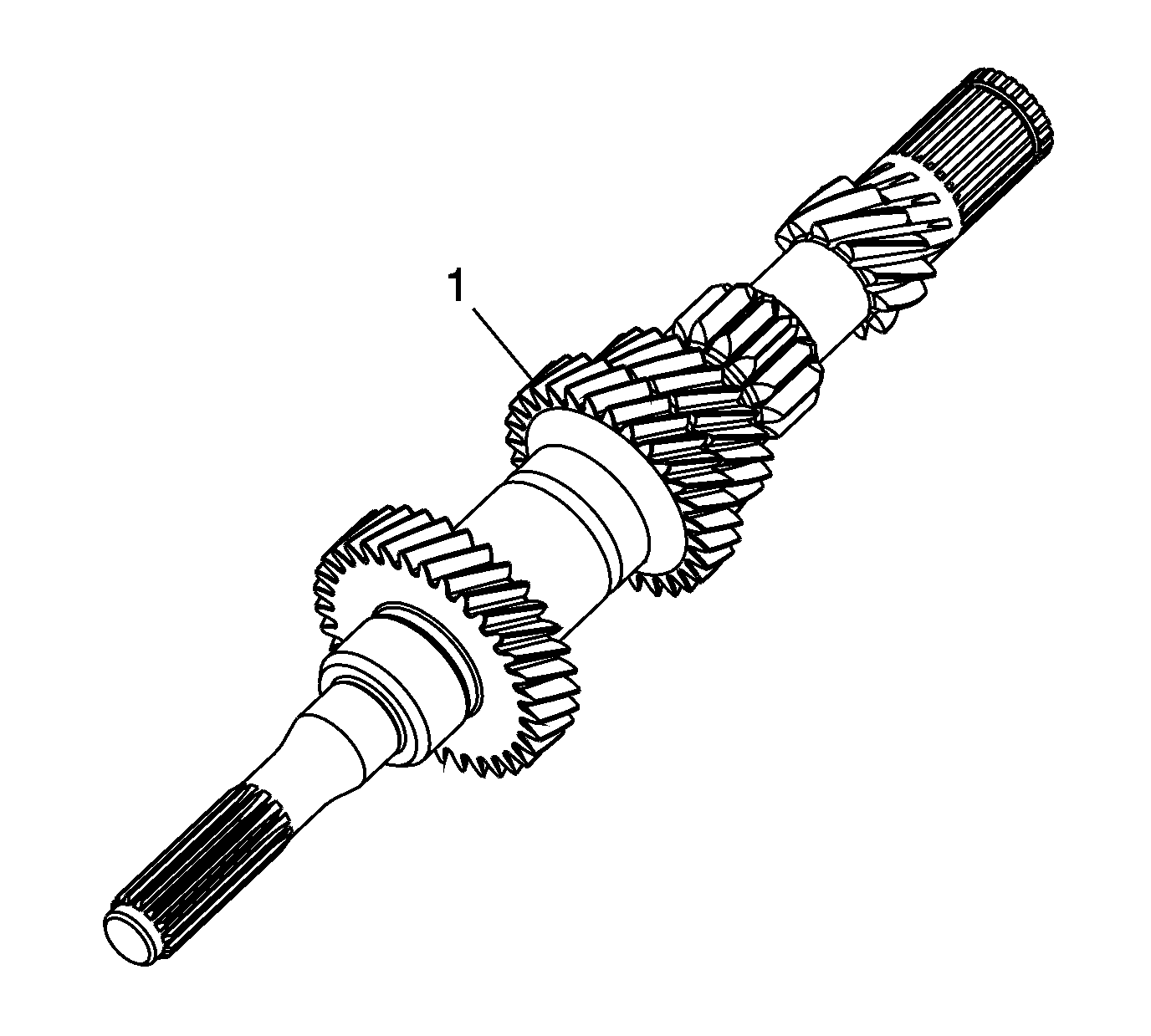

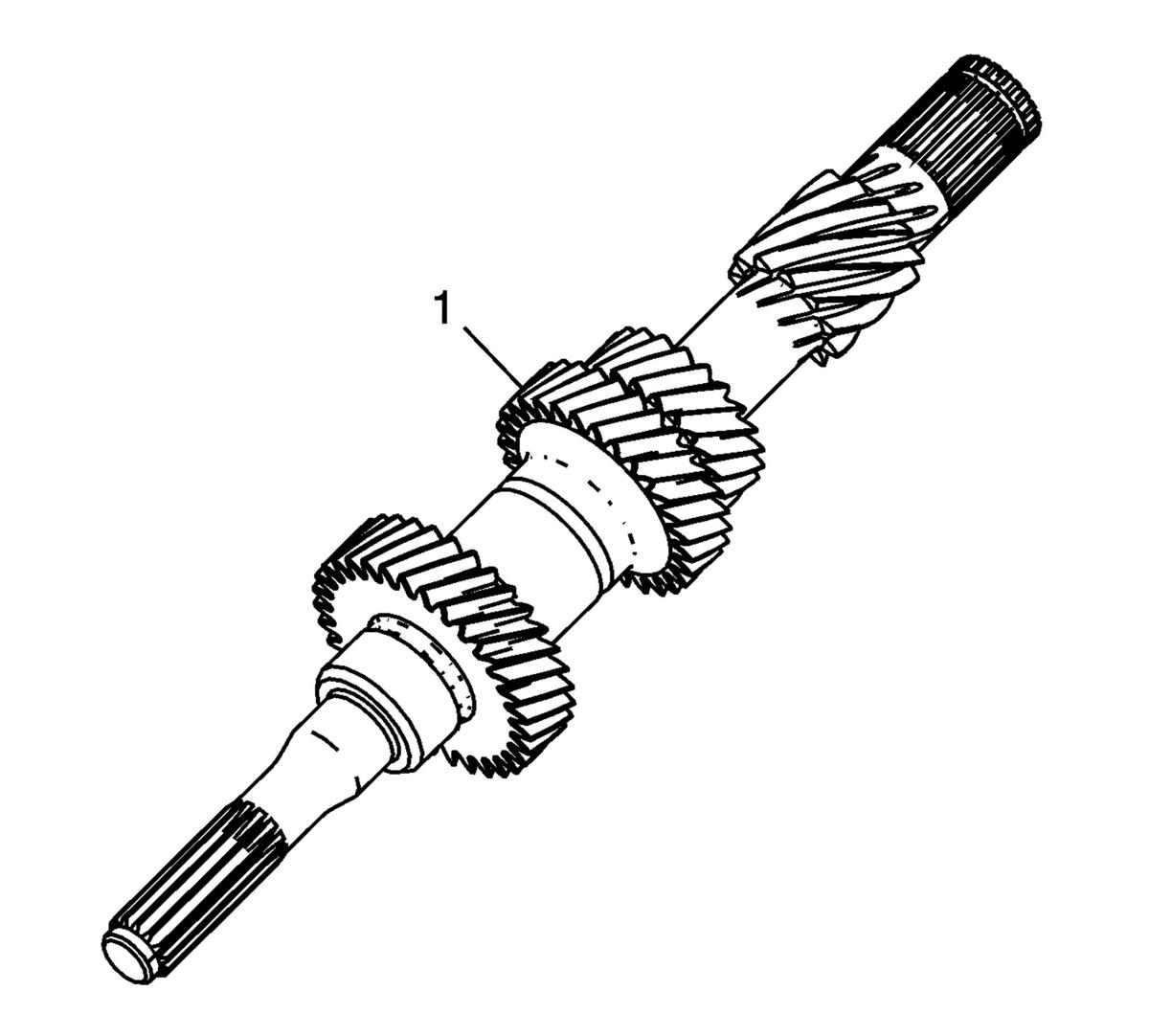

- Clean the input shaft (1) in a suitable solvent.
- Clean and air dry the oil gallery.
- Inspect the input shaft bearing surfaces for the following conditions:
- Wear
- Lack of lubricant
- Debris embedded in the oil grooves
- Brinelling
- Inspect the input shaft splines for wear or damage.
- Replace the input shaft if any of the above conditions are found.
