Clutch and Differential Housing Disassemble

Special Tools

• M-680770  Universal Sliding Mallet
• R-0007758  Holding Fixture
• R-0407008  Counter Shaft Bearing Remover
• R-0407010  Input Shaft Needle Bearing Puller and Driver
• R-0407013  Gearshift Device Bushing Puller
• R-0007761  Universal Handle for Pullers and Installers
• T-0207928  Retainer Remover

For equivalent regional tools, refer to Special Tools .

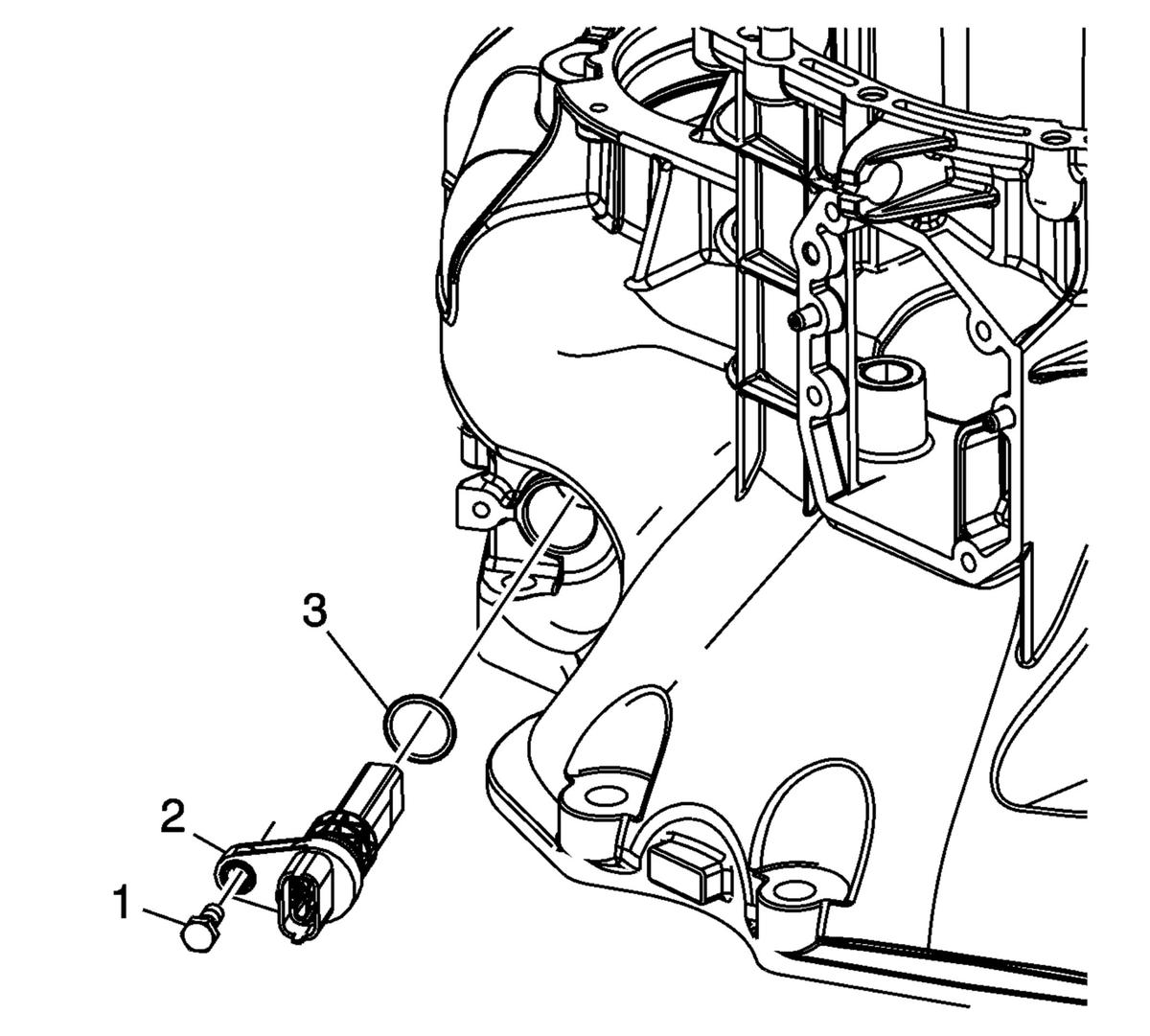

Fig 1: Vehicle Speed Sensor, Bolt & O-ring Seal
Courtesy of GENERAL MOTORS COMPANY
1. Remove the vehicle speed sensor bolt (1) and vehicle speed sensor assembly (2).
2. Remove and discard the vehicle speed sensor O-ring seal (3).

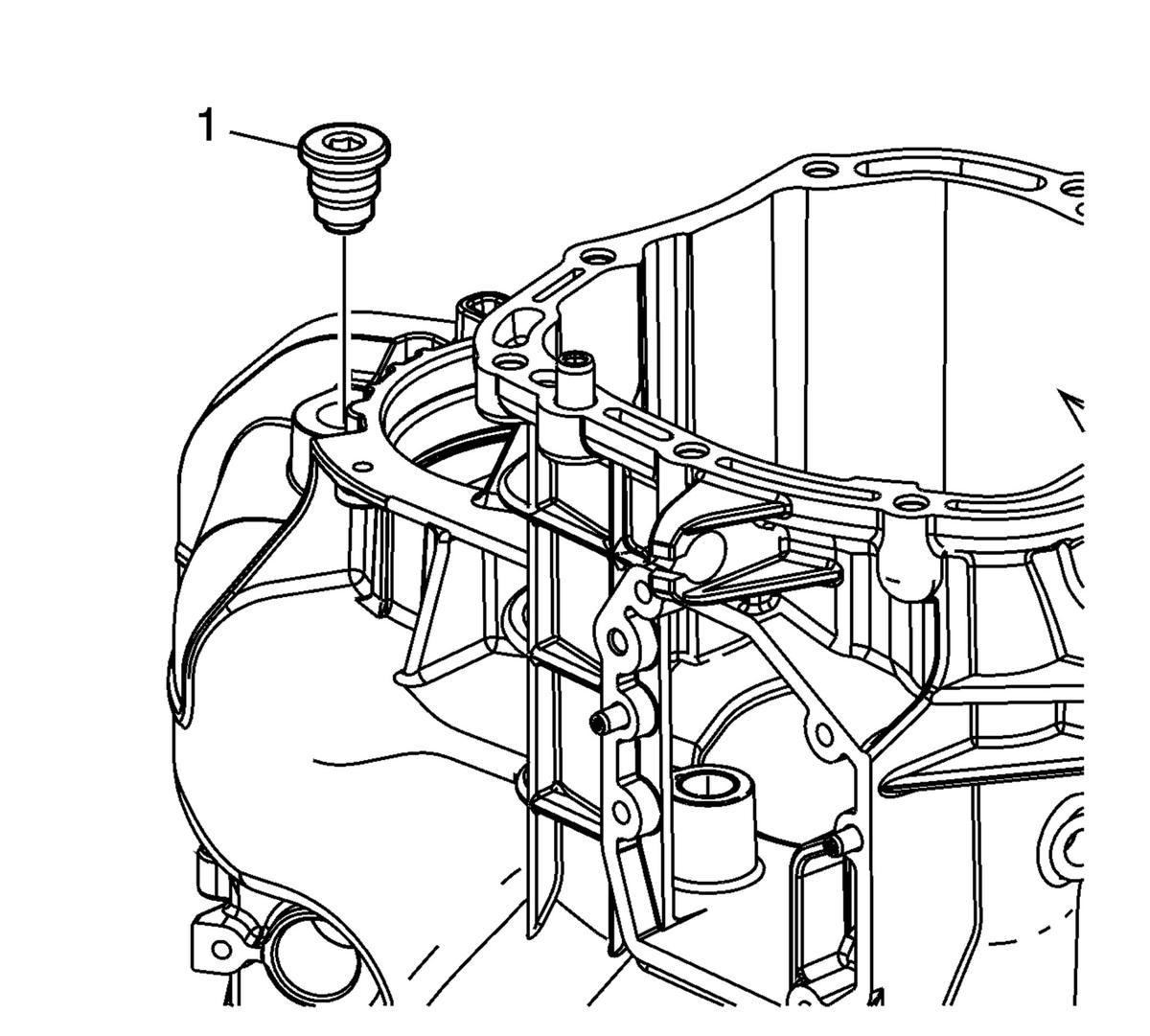

Fig 2: Transmission Magnet
Courtesy of GENERAL MOTORS COMPANY
3. Remove the transmission magnet (1).

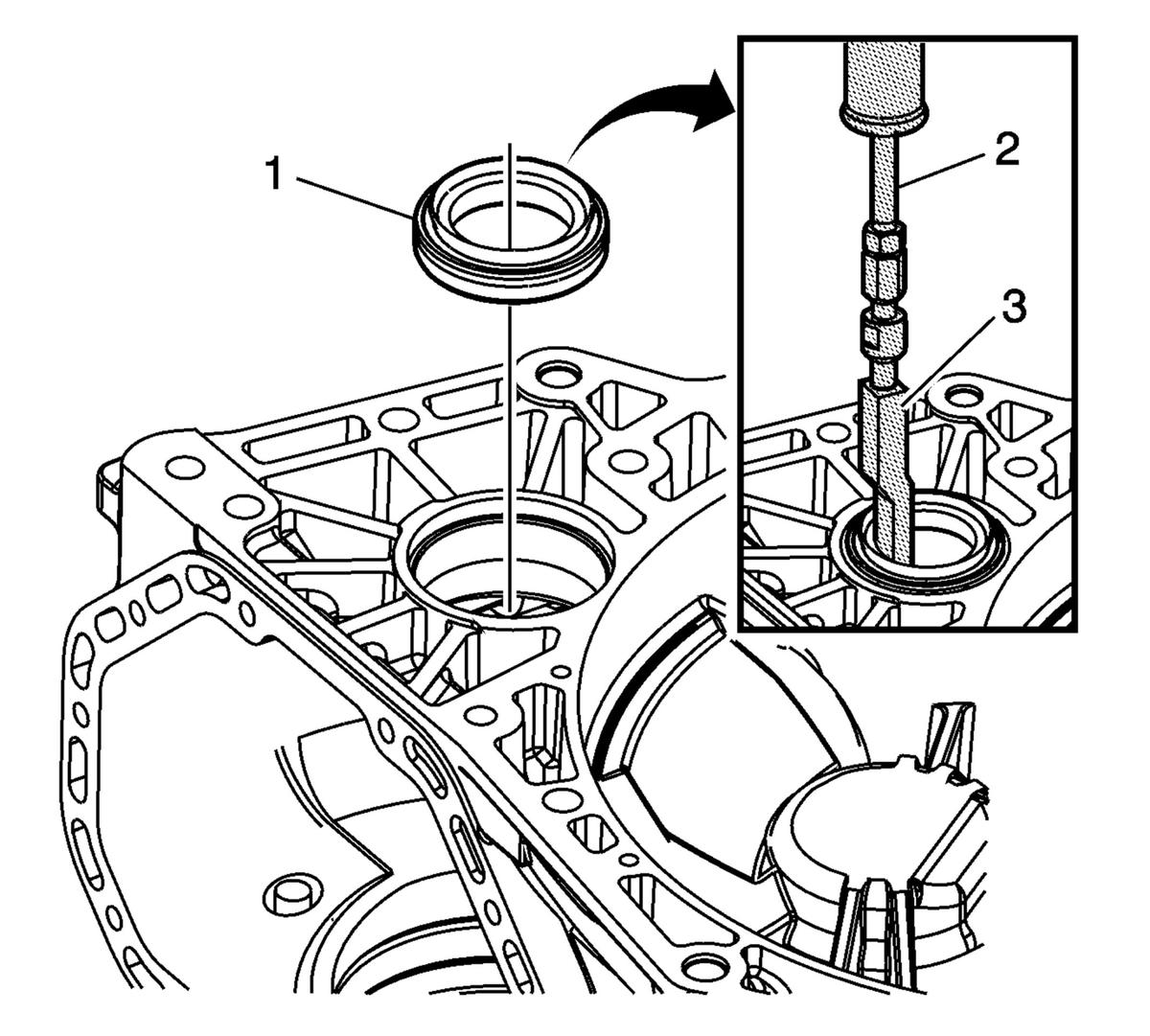

Fig 3: Front Wheel Drive Shaft Oil Seal & Removal Tools
Courtesy of GENERAL MOTORS COMPANY
4. Using the T-0207928  retainer remover (3) with the M-680770  sliding mallet (2) remove the front wheel drive shaft oil seal assembly (1).

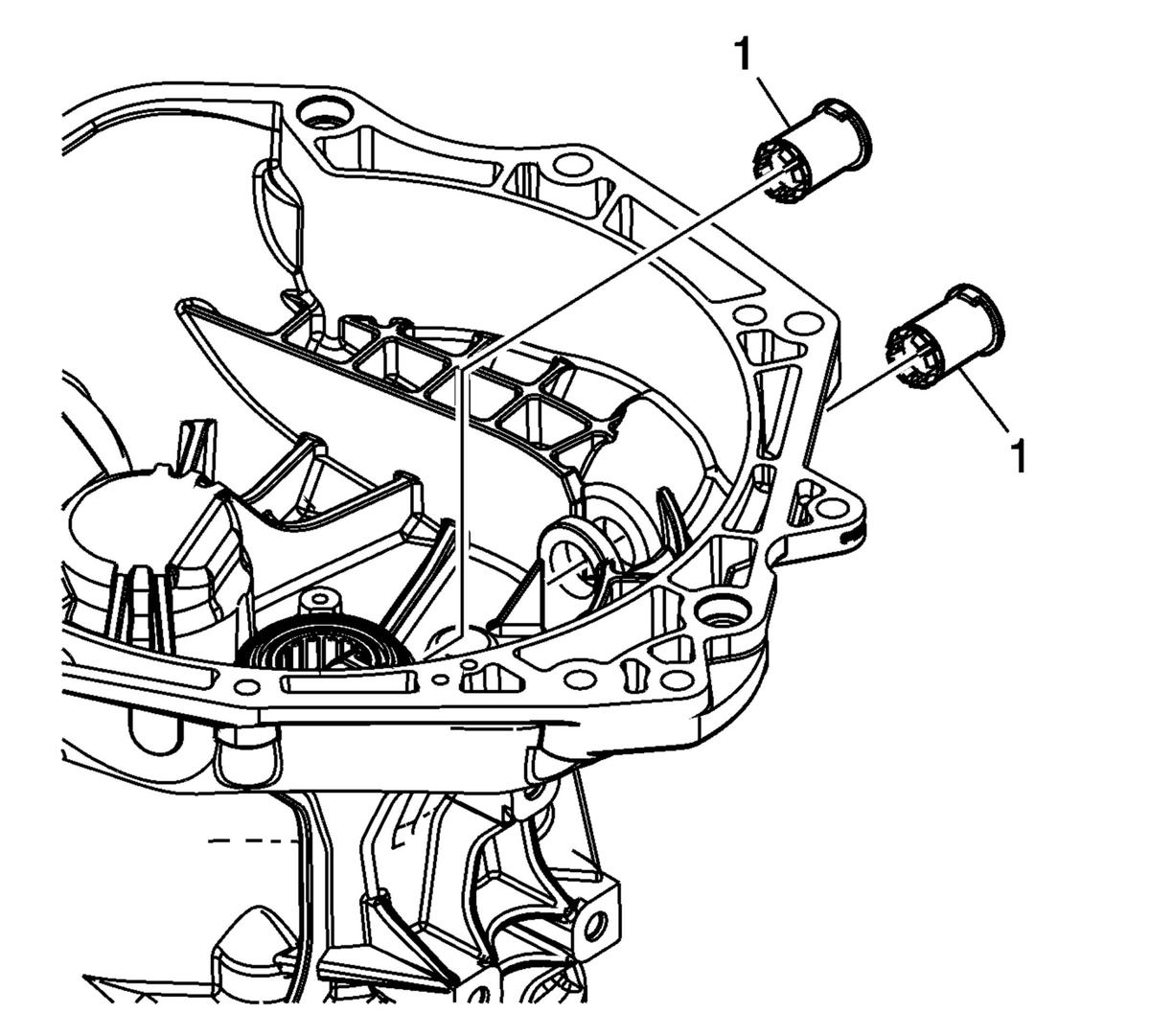

Fig 4: Clutch Yoke Shaft Bushings
Courtesy of GENERAL MOTORS COMPANY
5. Remove the clutch yoke shaft bushings (1).

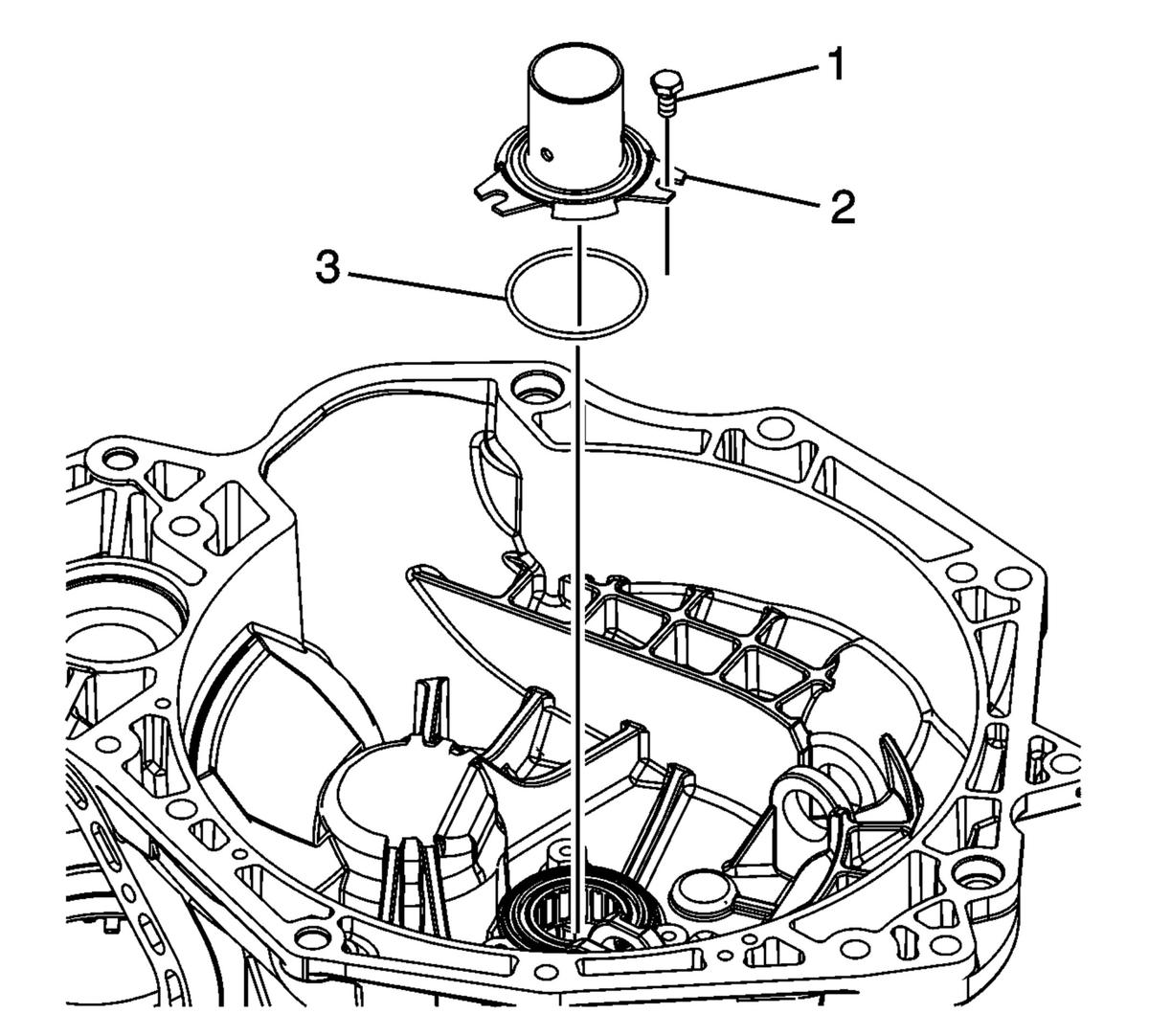

Fig 5: Clutch Release Bearing Collar, Bolt & O-ring Seal
Courtesy of GENERAL MOTORS COMPANY
6. Remove the clutch release bearing collar bolt (1).
7. Remove the clutch release bearing collar (2).
8. Remove the clutch release bearing collar O-ring seal (3).

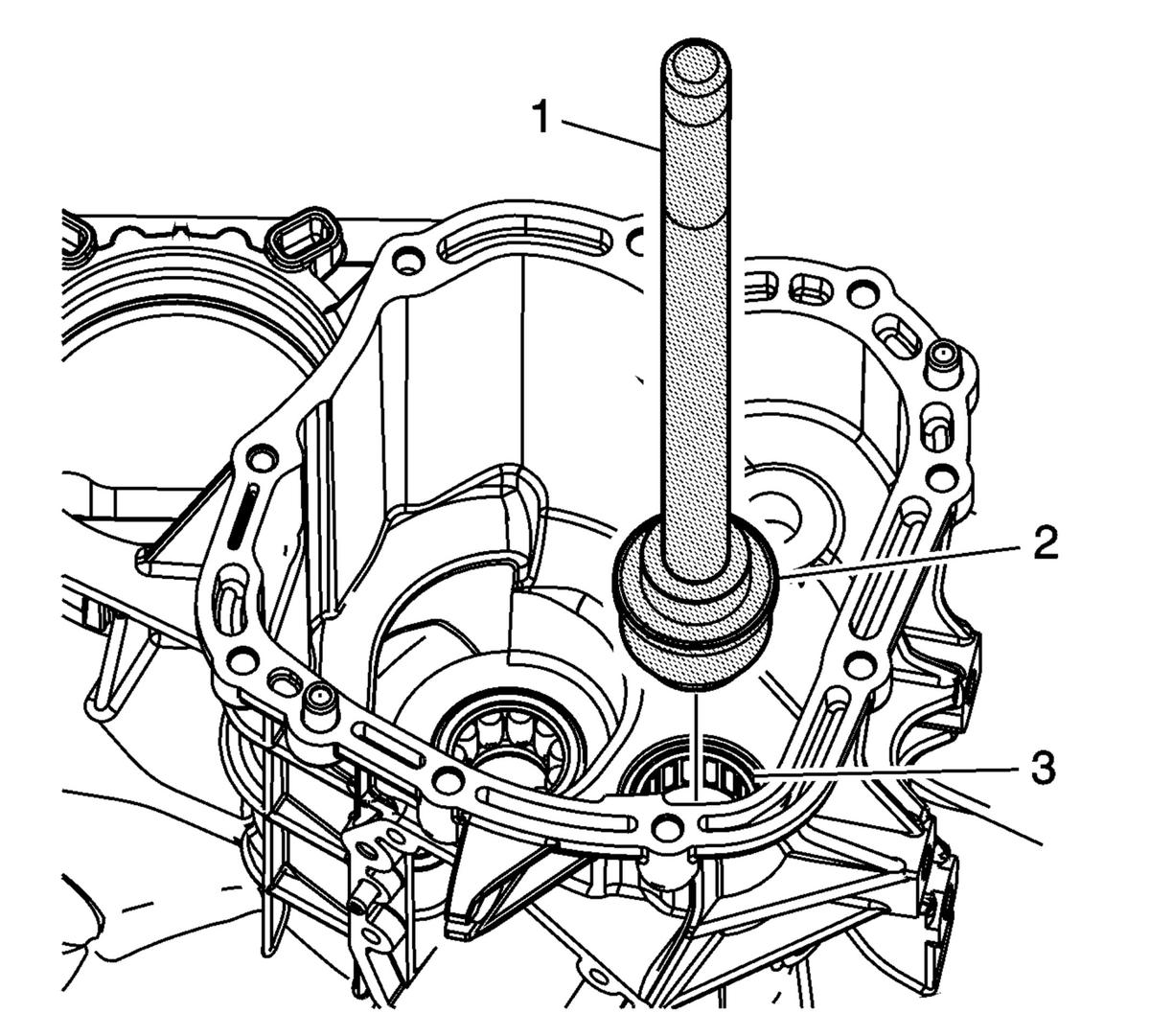

Fig 6: Input Shaft Front Bearing Assembly, Driver & Handle
Courtesy of GENERAL MOTORS COMPANY
9. Remove the input shaft front bearing assembly (3) using the R-0407010  driver (2) and the R-0007761  handle (1).

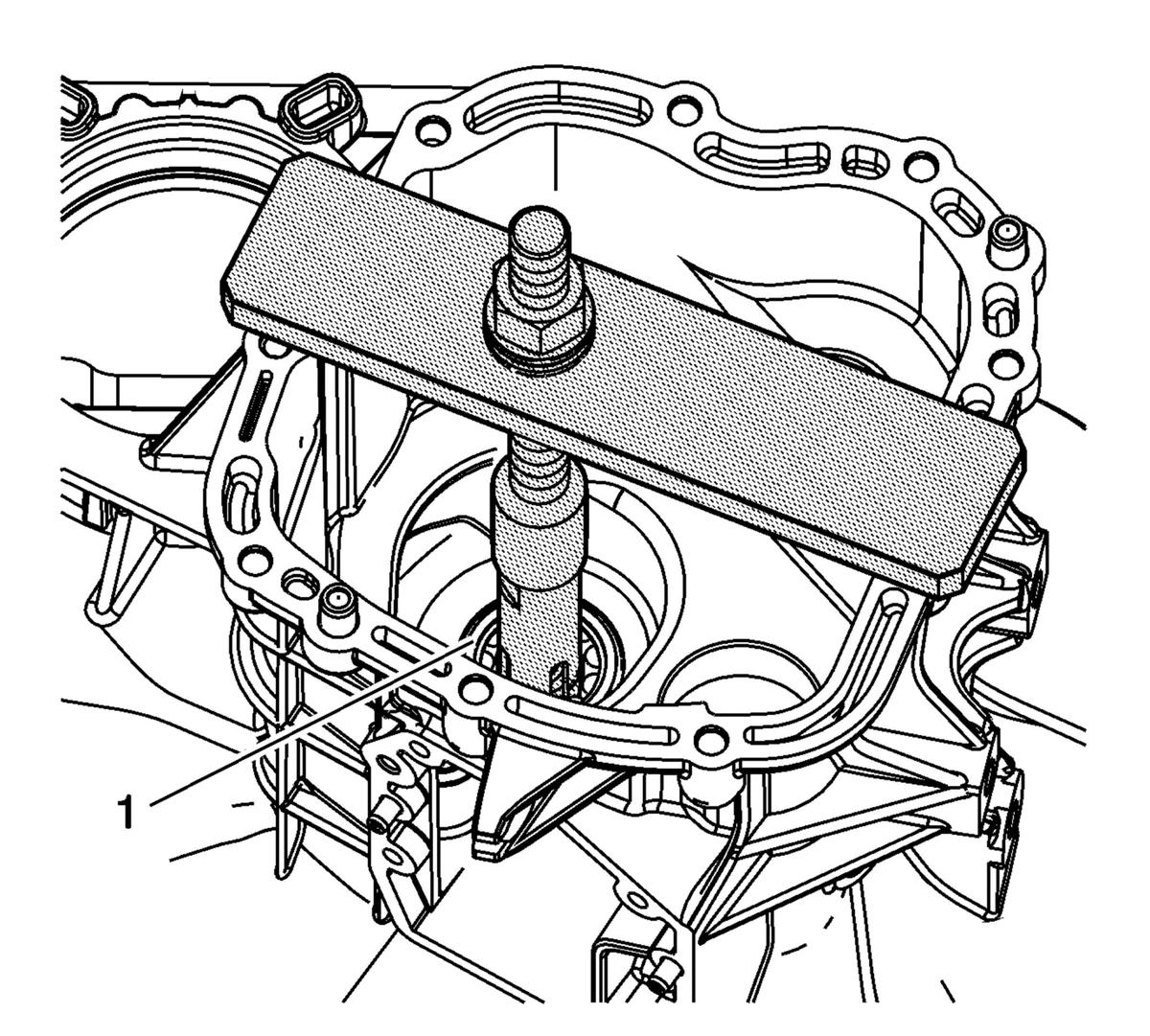

Fig 7: Main Shaft Front Bearing Assembly & Remover
Courtesy of GENERAL MOTORS COMPANY
10. Remove the main shaft front bearing assembly (1) using the R-0407008  remover.

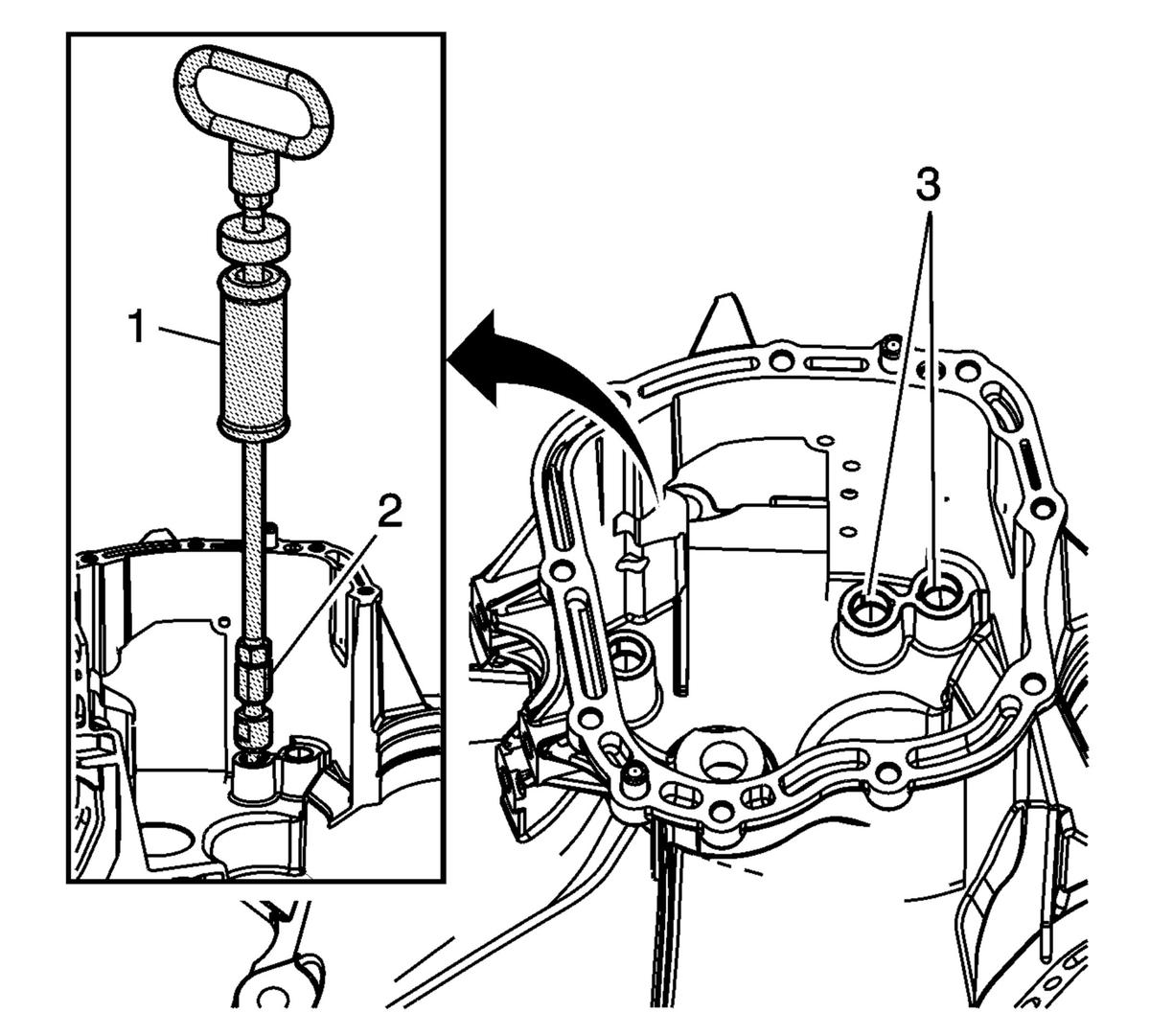

Fig 8: Shift Shaft Bushings & Removal Tools
Courtesy of GENERAL MOTORS COMPANY
11. Remove the shift shaft bushings (3) using the R-0407013  puller (2) and the M-680770  mallet (1).
Fig 9: Clutch, Differential Housing & Holding Fixture
Courtesy of GENERAL MOTORS COMPANY
12. Remove the clutch and differential housing (1) from the R-0007758  holding fixture.
