Clutch and Differential Housing Assemble

Special Tools

• R-0007761  Universal Handle for Pullers and Installers
• R-0407009  Countershaft Front Bearing Driver
• R-0407010  Input Shaft Needle Bearing Puller and Driver
• R-0407014  Gearshift Device Bushing Driver - Use with R-0007761
• S-9707500  Axle Shaft Seal Installer

For equivalent regional tools, refer to Special Tools .

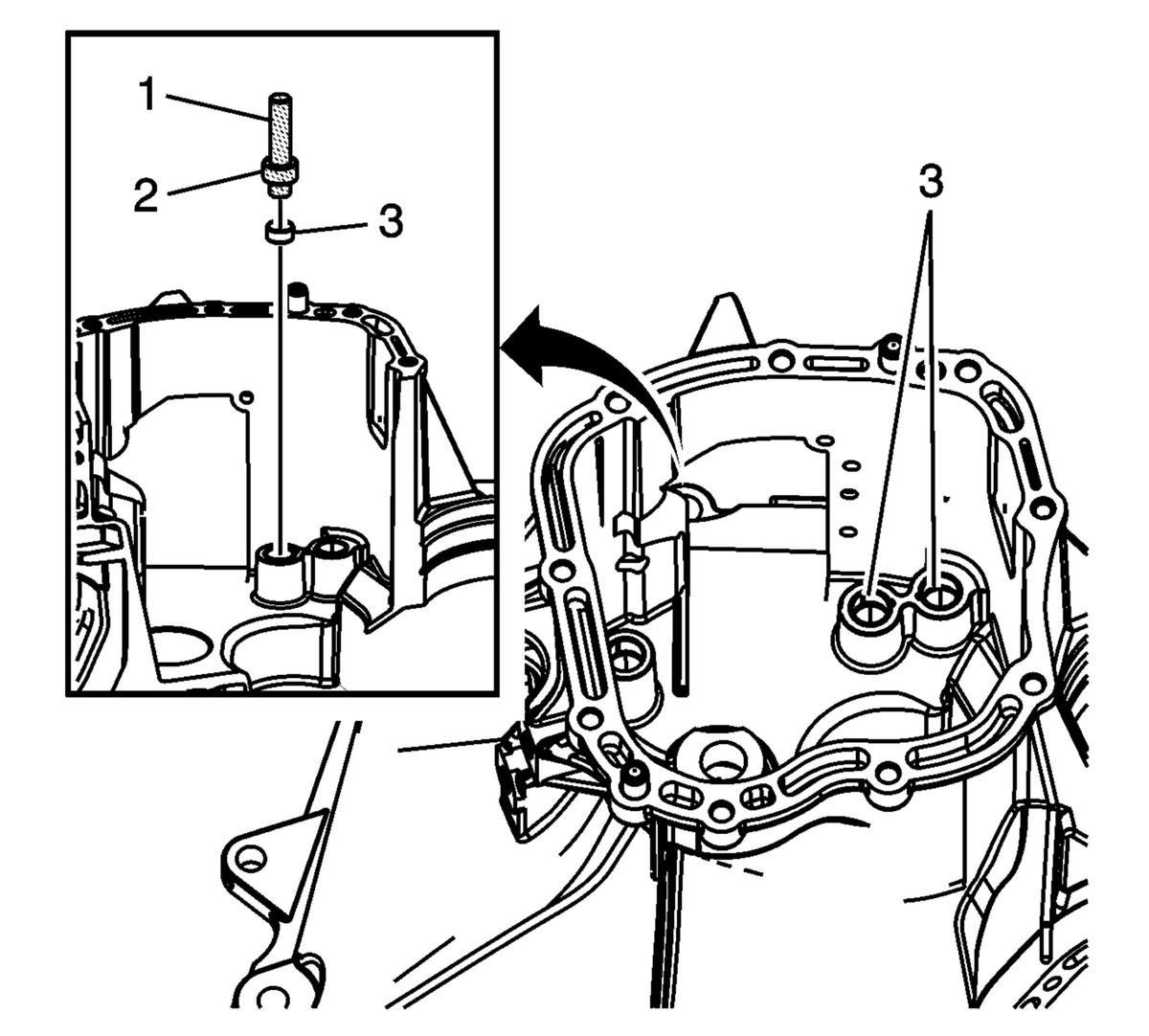

Fig 1: Shift Shaft Bushings, Driver & Handle
Courtesy of GENERAL MOTORS COMPANY
1. Install the shift shaft bushings (3) using the R-0407014  bushing driver (2) and R-0007761  handle (1).

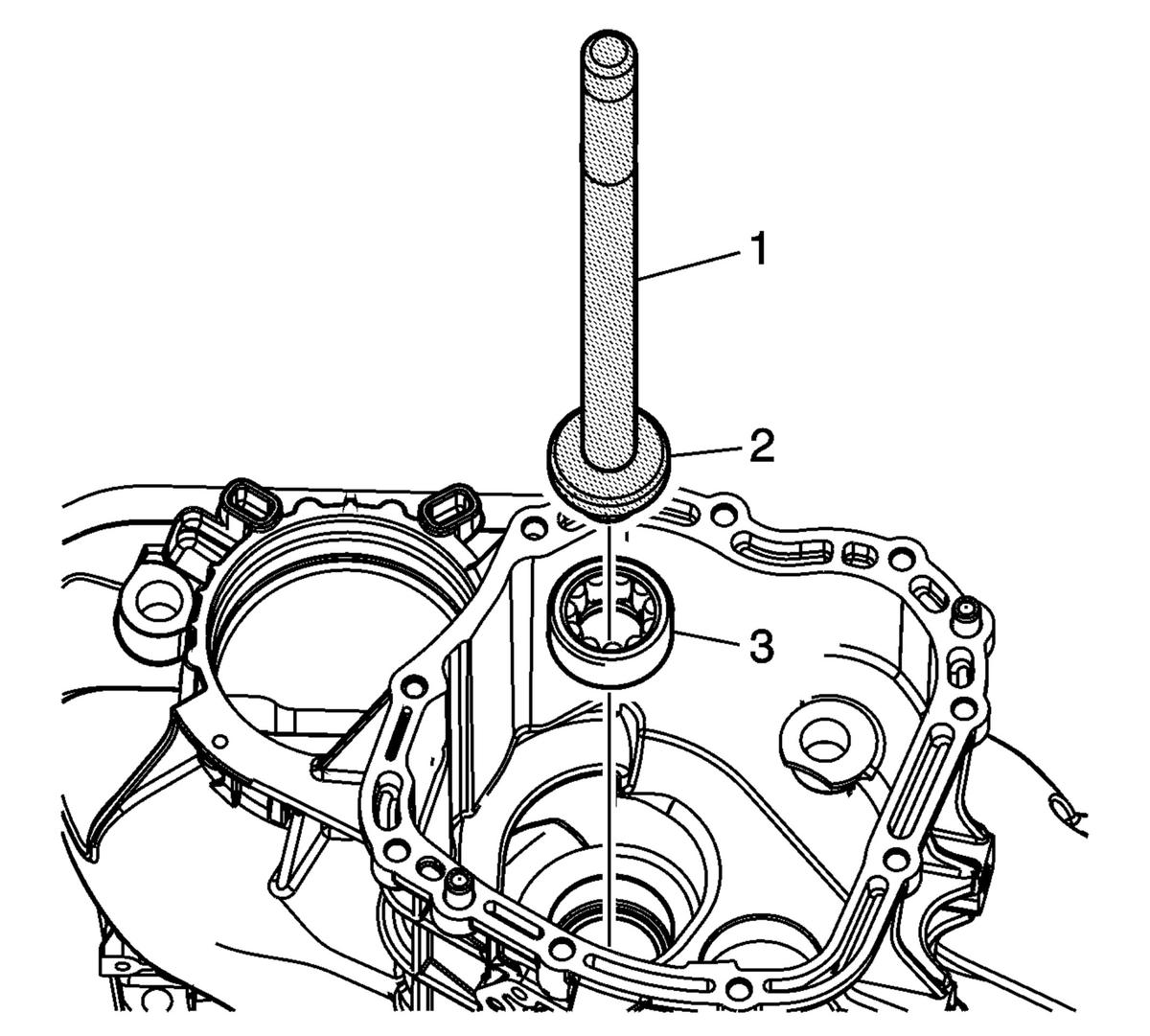

Fig 2: Main Shaft Front Bearing Assembly, Driver And Handle
Courtesy of GENERAL MOTORS COMPANY
2. Install the main shaft front bearing assembly (3) using the R-0407009  driver (2) and the R-0007761  handle (1).

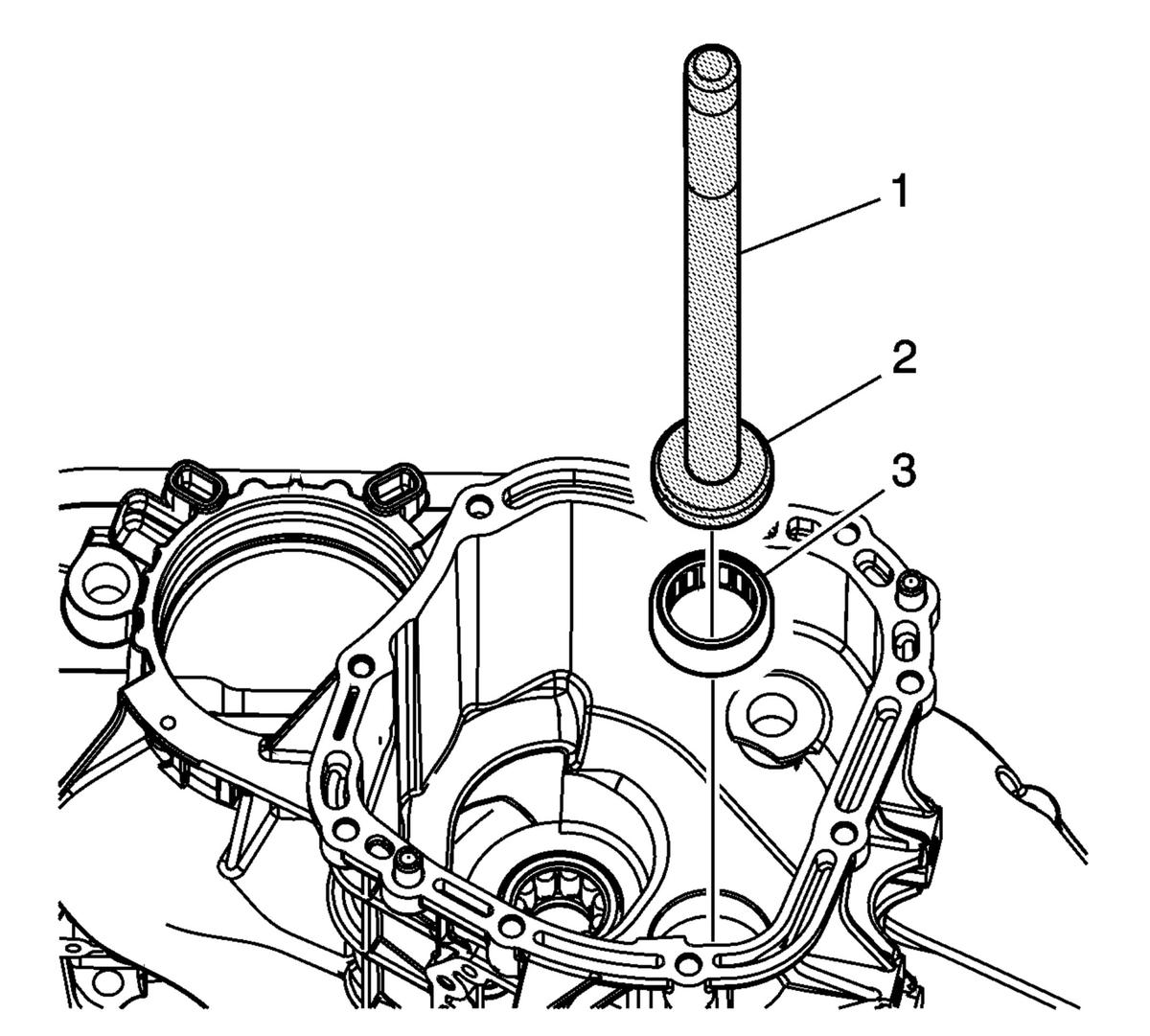

Fig 3: Input Shaft Front Bearing Assembly, Driver & Handle
Courtesy of GENERAL MOTORS COMPANY
3. Install the input shaft front bearing assembly (3) using the R-0407010  driver (2) and the R-0007761  handle (1).
Fig 4: Clutch Yoke Shaft Bushings
Courtesy of GENERAL MOTORS COMPANY
NOTE:

Align the tabs on the clutch yoke shaft bushings to the slots in the clutch and differential housing.

4. Install the clutch yoke shaft bushings (1).
Fig 5: Clutch Release Bearing Collar & Seal
Courtesy of GENERAL MOTORS COMPANY
5. Install the clutch release bearing collar seal (3).
6. Install the clutch release bearing collar (2).
CAUTION:

Refer to Fastener Caution .

7. Install the clutch release bearing collar bolt (1) and tighten to 5 N.m (44.3 lb in).

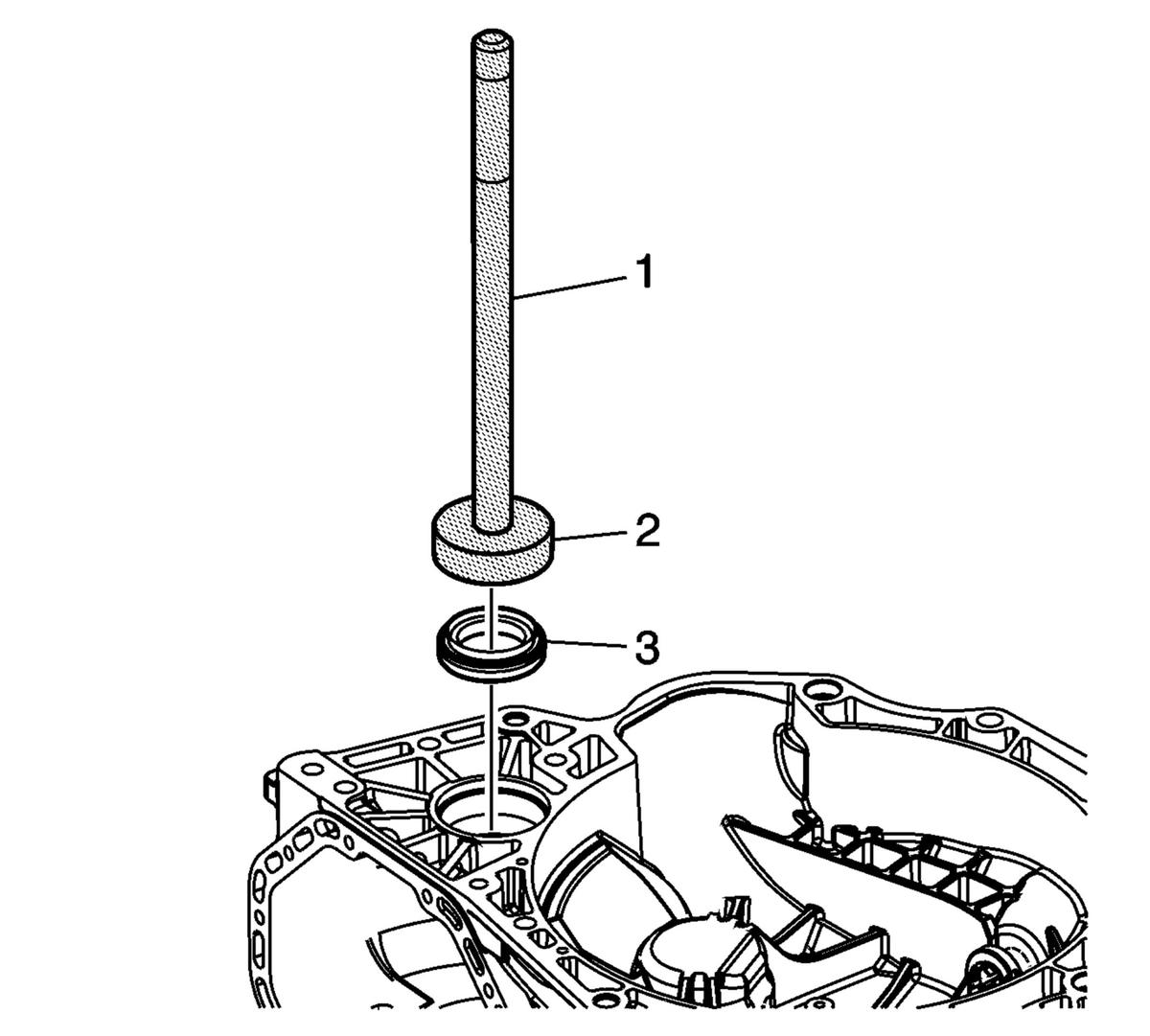

Fig 6: Front Wheel Drive Shaft Oil Seal Assembly, Installer & Handle
Courtesy of GENERAL MOTORS COMPANY
8. Install the front wheel drive shaft oil seal assembly (3) using the S-9707500  seal installer (2) and the R-0007761  handle (1).
Fig 7: Transmission Magnet
Courtesy of GENERAL MOTORS COMPANY
9. Install the transmission magnet (1). Tighten to 4 N.m (35.4 lb in) plus 45° plus an additional 90°.
Fig 8: Vehicle Speed Sensor, Bolt & O-ring Seal
Courtesy of GENERAL MOTORS COMPANY
10. Install the NEW vehicle speed sensor O-ring seal (3).
11. Install the vehicle speed sensor assembly (2).
12. Install the vehicle speed sensor bolt (1). Tighten to 5 N.m (44 lb in).
