Transmission System Description and Operation
WARNING: This page is about a different variant/trim than selected.

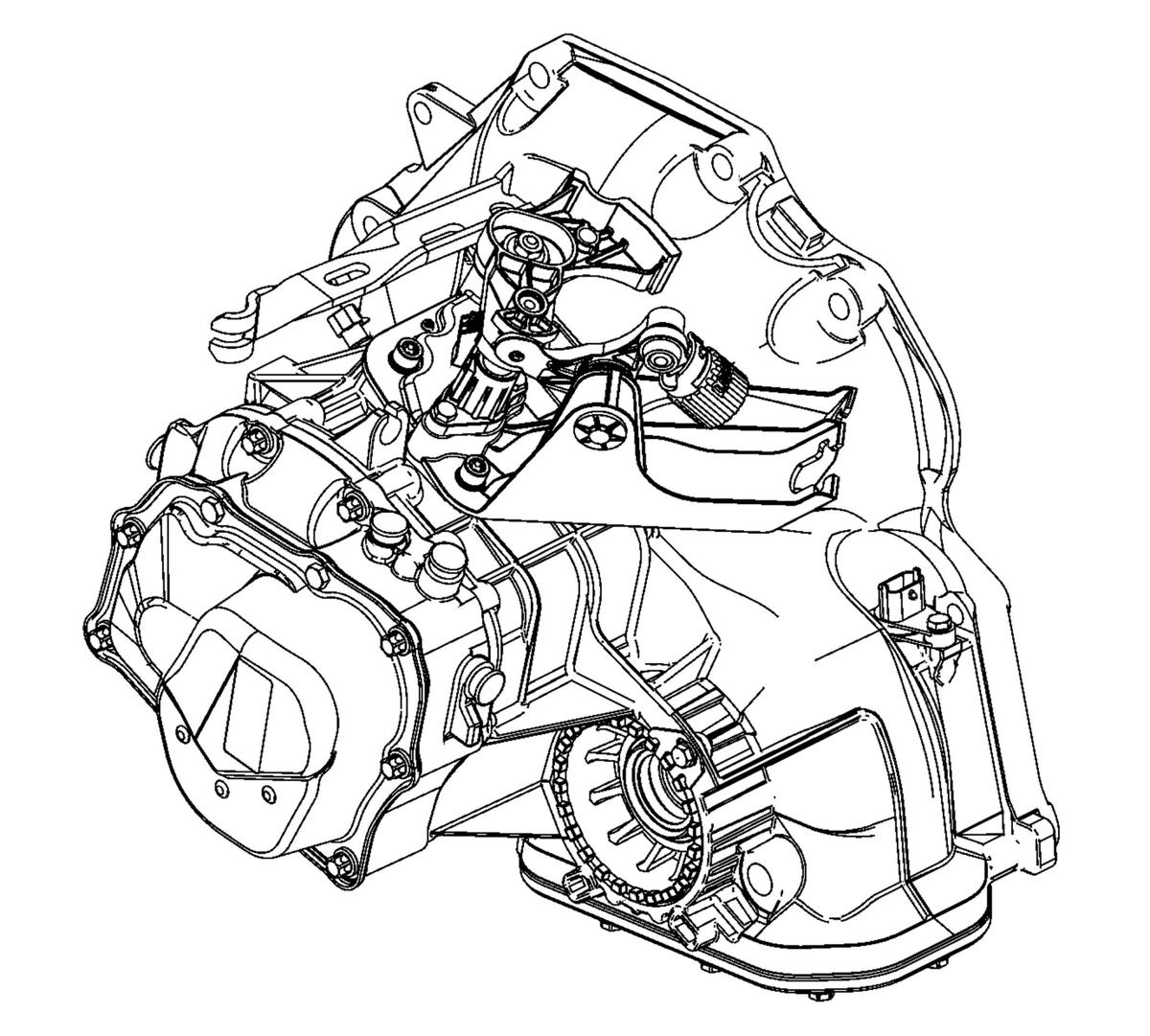

The F17 is a 5 speed manual transmission assembly.
NOTE:
Use only transmission fluid listed within the Adhesives, Fluids, Lubricants, and Sealers for this manual transmission assembly. Other lubricants or additives may affect the shift performance.
The F17 (Gen 1) 5 Speed manual transmission has the following features:
- First and second gear double coned synchronizer
- Third, fourth, and fifth gear single coned synchronizer
- Two shaft design consisting of an input shaft, and main shaft
- Reverse inhibit feature
- One piece clutch actuator - no bleed screw
- Transmission venting system is part of the fill cap
- Vehicle speed sensor (VSS)
The F17 (Gen 2) 5 Speed manual transmission has the following features:
- First, second, third, and fourth gear double coned synchronizer
- Fifth gear single coned synchronizer
- Two shaft design consisting of an input shaft, and main shaft
- Synchronized Reverse Gear
- One piece clutch actuator - no bleed screw
- Transmission venting system is part of the fill cap
- Vehicle speed sensor (VSS)
The manual transmission shift cables must be adjusted for proper shifter performance.
