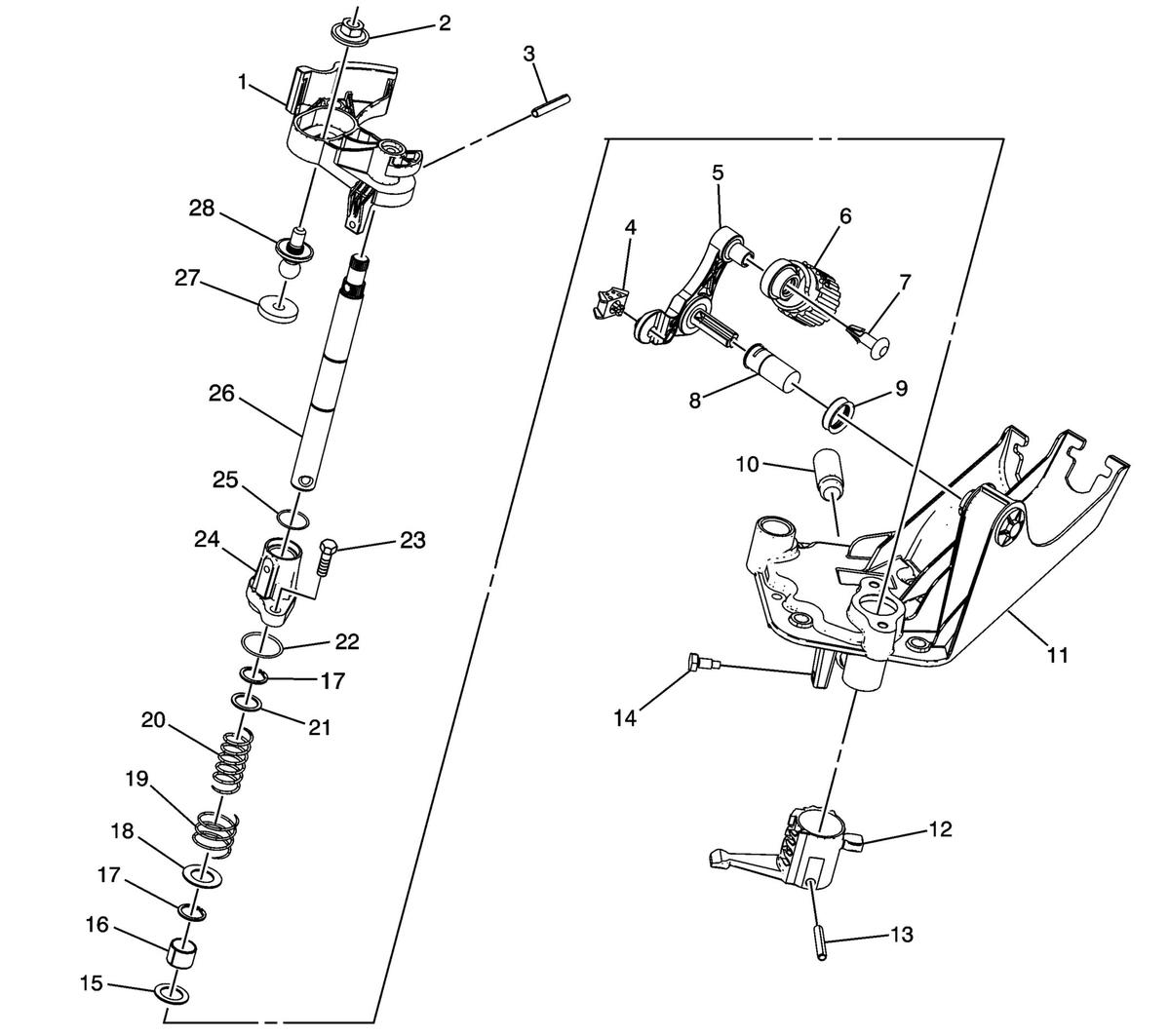

Shifter Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | M/Trans Control Lever Assembly |
| 2 | M/Trans Control Front Shift Lever Ball Stud Retainer |
| 3 | Control Lever Pin |
| 4 | Selection Lever Slider |
| 5 | Selection Lever |
| 6 | Quick Adjuster Assembly |
| 7 | Quick Adjuster Assembly Pin |
| 8 | Selection Lever Sleeve |
| 9 | Selection Lever Bushing |
| 10 | Positioner |
| 11 | M/Trans Control Lever Housing Assembly |
| 12 | Intermediate Shift lever |
| 13 | Intermediate Shift Lever Pin |
| 14 | Intermediate Shift Lever Guide Pin |
| 15 | Control Lever Washer |
| 16 | M/Trans Control Lever Pivot Pin Bushing |
| 17 | Control Lever Stop Spring Retaining Ring |
| 18 | Control Lever Stop Spring Spacer |
| 19 | Control Lever Stop Spring - Outer |
| 20 | Control Lever Stop Spring - Inner |
| 21 | Control Lever Stop Spring Spacer |
| 22 | Upper Bearing Assembly O-ring Seal |
| 23 | Upper Bearing Assembly Bolt |
| 24 | Upper Bearing Assembly |
| 25 | Upper Bearing Assembly Seal |
| 26 | Control Lever Shaft |
| 27 | M/Trans Control Front Shift Lever Ball Stud Washer |
| 28 | M/Trans Control Front Shift Lever Ball Stud |
