Case Components (2 of 2) (Gen 2)

WARNING: This page is about a different variant/trim than selected.

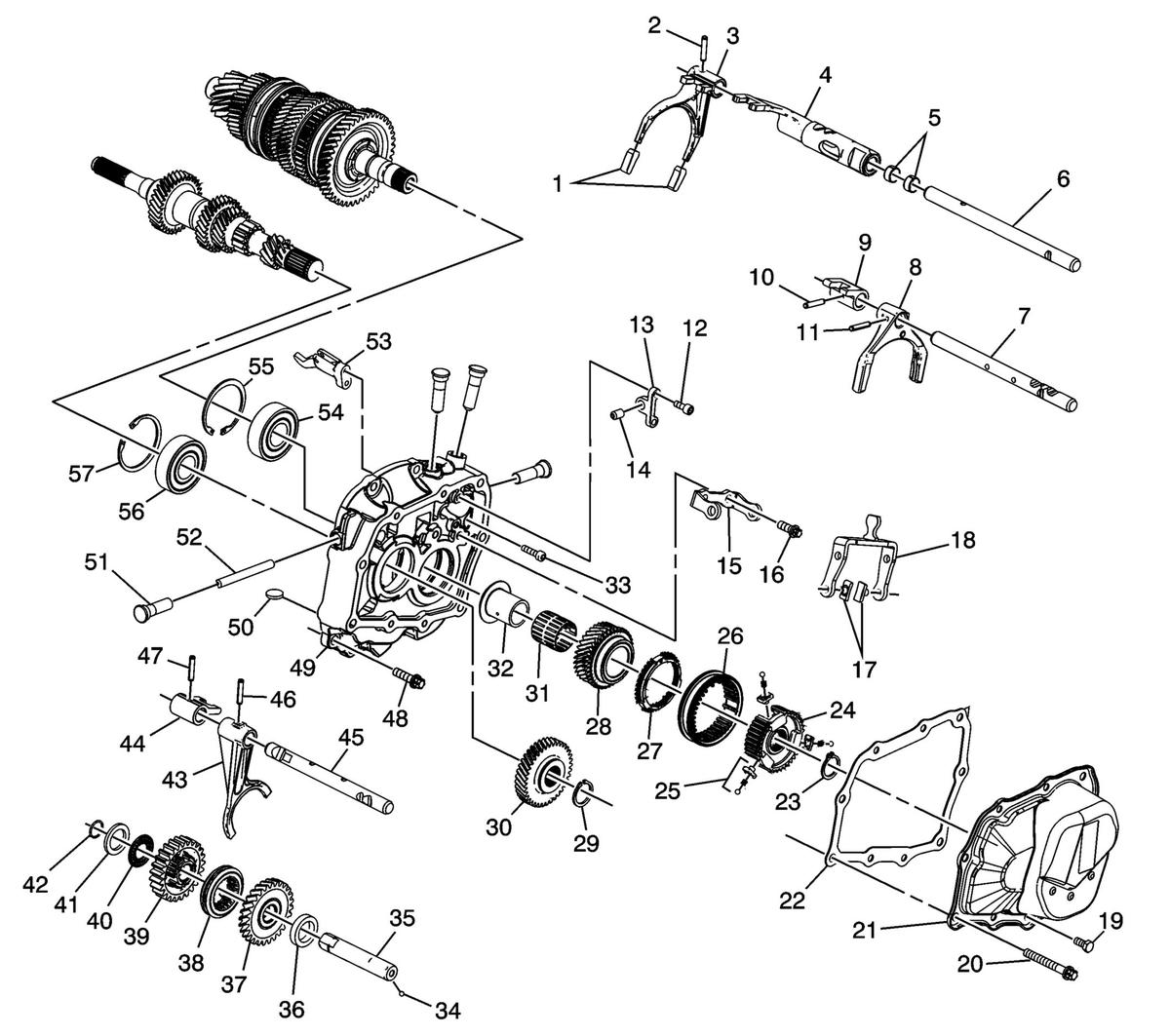

Fig 1: Case Components (2 of 2) (Gen 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	3rd and 4th Shift Fork Pad
2	3rd and 4th Shift Fork Pin
3	3rd and 4th Shift Fork
4	5th Shift Blocking Guide
5	5th Shift Blocking Guide Bushing
6	3rd and 4th Shift Shaft
7	1st and 2nd Shift Shaft
8	1st and 2nd Shift Fork
9	1st and 2nd Shaft Block
10	1st and 2nd Shaft Block Pin
11	1st and 2nd Shift Fork Pin
12	Shift Shaft Interlock Pin Connector Bolt
13	Shift Shaft Interlock Pin Connector
14	5th Shift Blocking Pin
15	5th Shift Fork Bracket
16	5th Shift Fork Bracket Bolt
17	5th Shift Fork Shoe
18	5th Shift Fork Assembly
19	Transmission Cover Bolt
20	Transmission Case Bolt
21	Transmission Cover Assembly
22	Transmission Cover Gasket
23	5th Gear Synchronizer Hub Retaining Ring
24	5th Gear Synchronizer Hub
25	5th Gear Synchronizer Insert Assembly
26	5th Gear Synchronizer Sleeve
27	5th Gear Blocking Ring
28	5th Gear Assembly - Driven
29	5th Gear Retaining Ring
30	5th Gear - Driving
31	5th Gear Bearing Assembly
32	5th Gear Bearing Race
33	Parking Pawl Bolt
34	Reverse Idler Gear Shaft Ball
35	Reverse Idler Gear Shaft
36	Reverse Helical Gear Washer
37	Reverse Helical Gear
38	Reverse Synchro Assembly
39	Reverse Spur Gear
40	Reverse Spur Gear Bearing
41	Reverse Spur Gear Washer
42	Reverse Gear Shaft Snap Ring
43	Reverse Shift Fork
44	Reverse Fork Block
45	Reverse Shift Shaft
46	Reverse Shift Shaft Pin
47	Reverse Fork Block Pin
48	Transmission Case Bolt
49	Transmission Case
50	Transmission Magnet
51	Shift Shaft Detent Sleeve
52	Gearshift Rod
53	Parking Pawl
54	Main Shaft Rear Bearing Assembly
55	Main Shaft Rear Bearing Retaining Ring
56	Input Shaft Rear Bearing Assembly
57	Input Shaft Rear Bearing Retaining Ring
