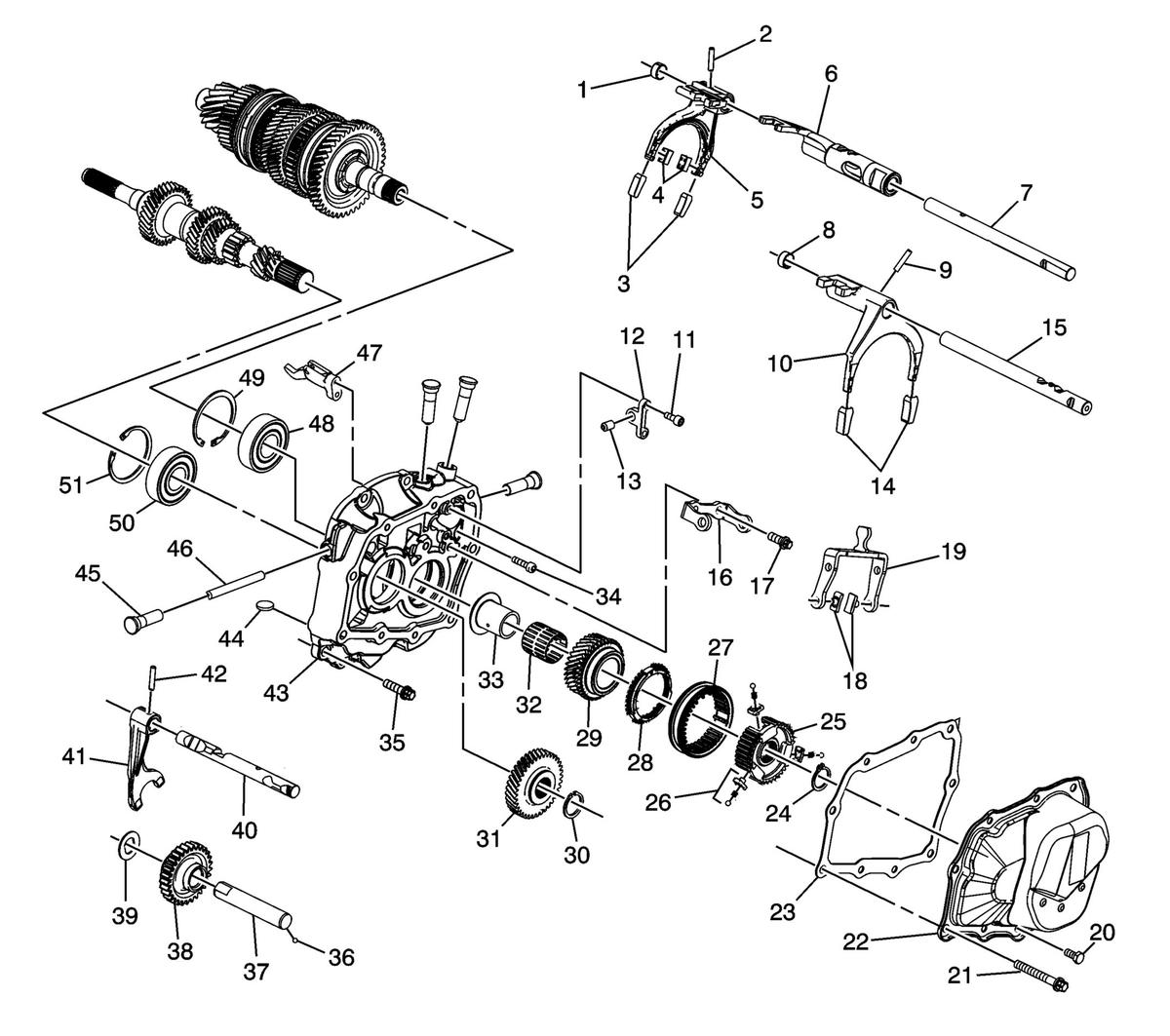

Case Components (2 of 2) (Gen 1)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | 3rd and 4th Shift Shaft Bushing |
| 2 | 3rd and 4th Shift Fork Pin |
| 3 | 3rd and 4th Shift Fork Pad |
| 4 | 3rd and 4th Shift Fork Shoe |
| 5 | 3rd and 4th Shift Fork Assembly |
| 6 | 5th Shift Blocking Guide |
| 7 | 3rd and 4th Shift Shaft |
| 8 | 1st and 2nd Shift Shaft Bushing |
| 9 | 1st and 2nd Shift Fork Pin |
| 10 | 1st and 2nd Shift Fork Assembly |
| 11 | Shift Shaft Interlock Pin Connector Bolt |
| 12 | Shift Shaft Interlock Pin Connector |
| 13 | 5th Shift Blocking Pin |
| 14 | 1st and 2nd Shift Fork Pad |
| 15 | 1st and 2nd Shift Shaft |
| 16 | 5th Shift Fork Bracket |
| 17 | 5th Shift Fork Bracket Bolt |
| 18 | 5th Shift Fork Shoe |
| 19 | 5th Shift Fork Assembly |
| 20 | Transmission Cover Bolt |
| 21 | Transmission Case Bolt |
| 22 | Transmission Cover Assembly |
| 23 | Transmission Cover Gasket |
| 24 | 5th Gear Synchronizer Hub Retaining Ring |
| 25 | 5th Gear Synchronizer Hub |
| 26 | 5th Gear Synchronizer Insert Assembly |
| 27 | 5th Gear Synchronizer Sleeve |
| 28 | 5th Gear Blocking Ring |
| 29 | 5th Gear Assembly - Driven |
| 30 | 5th Gear Retaining Ring |
| 31 | 5th Gear - Driving |
| 32 | 5th Gear Bearing Assembly |
| 33 | 5th Gear Bearing Race |
| 34 | Parking Pawl Bolt |
| 35 | Transmission Case Bolt |
| 36 | Reverse Idler Gear Shaft Ball |
| 37 | Reverse Idler Gear Shaft |
| 38 | Reverse Idler Gear Assembly |
| 39 | Reverse Shift Fork Pin Washer |
| 40 | Reverse Shift Shaft |
| 41 | Reverse Shift Fork Assembly |
| 42 | Reverse Shift Fork Pin |
| 43 | Transmission Case |
| 44 | Transmission Magnet |
| 45 | Shift Shaft Detent Sleeve |
| 46 | Gearshift Rod |
| 47 | Parking Pawl |
| 48 | Main Shaft Rear Bearing Assembly |
| 49 | Main Shaft Rear Bearing Retaining Ring |
| 50 | Input Shaft Rear Bearing Assembly |
| 51 | Input Shaft Rear Bearing Retaining Ring |
